Valves

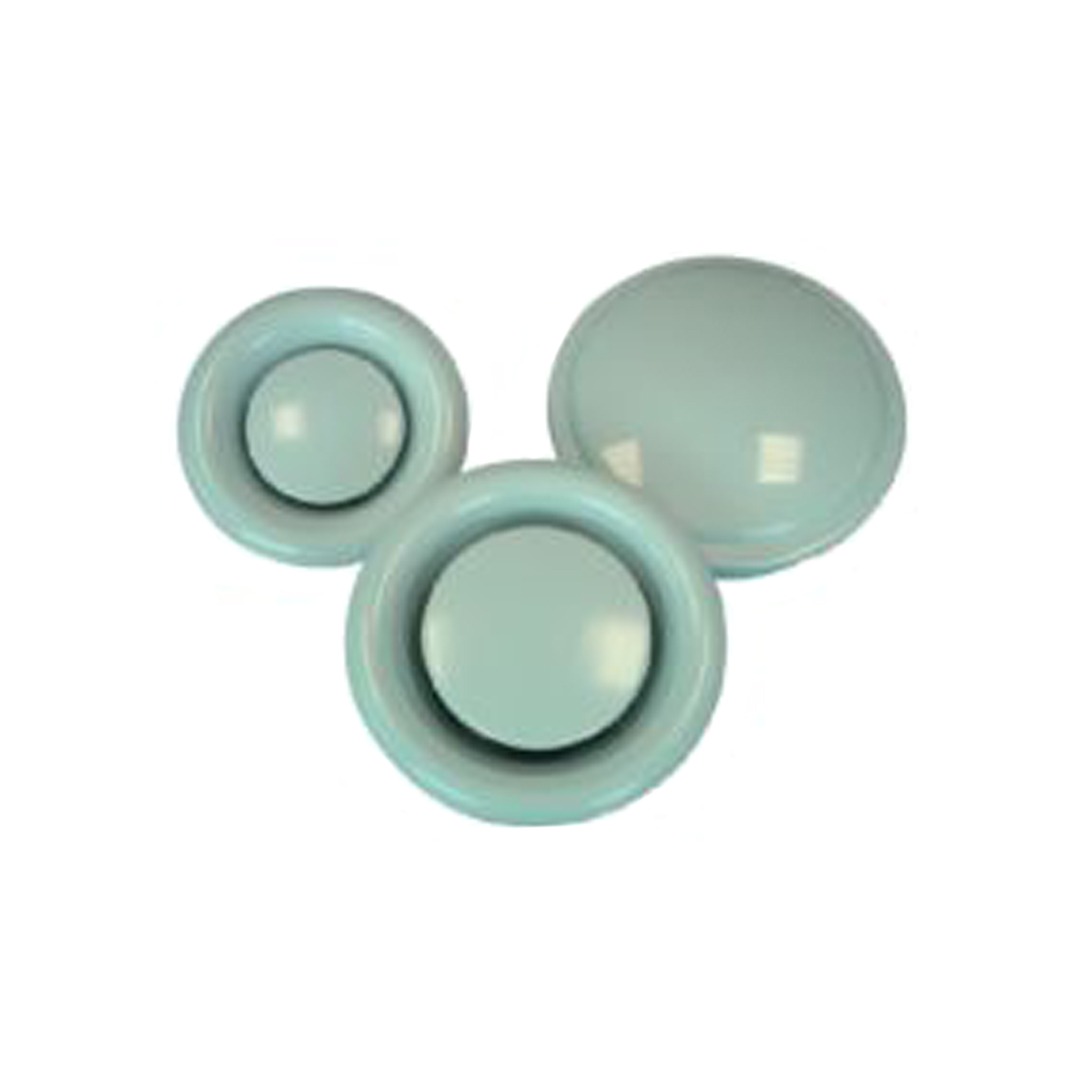

UV-UVP

Back to Diffusion

The UV Series units are extraction valves with adjustable central body and fixed counterframe.

Technical data

  • Standard dimensions from Ø 80 up to Ø 200 mm
  • RAL 9010 painted steel (UVE) or white PVC (UVP) construction
  • Already included galvanized steel counterframe
  • Fixing by sideways screws
  • Manual regulation

Dimensions

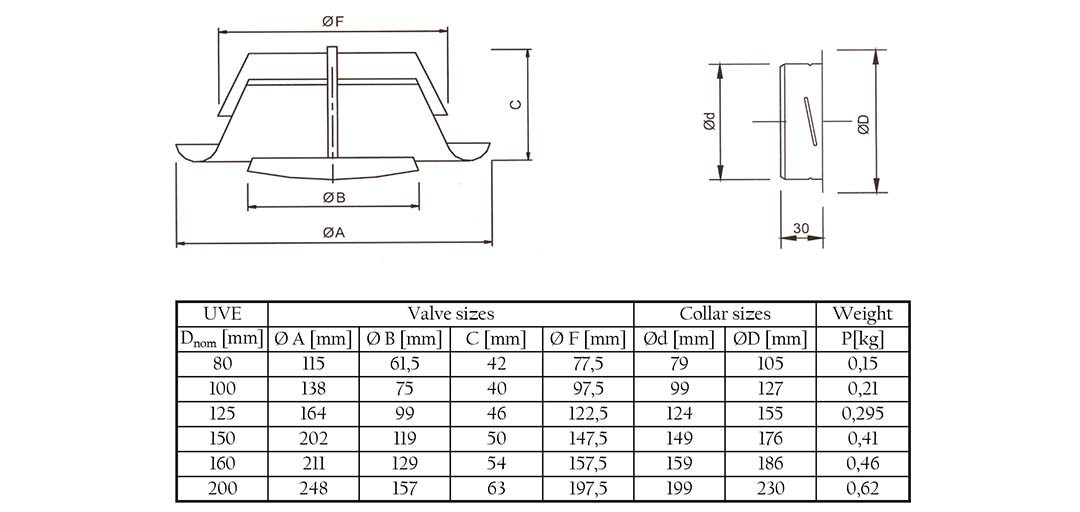

UVE
UVE

UVE

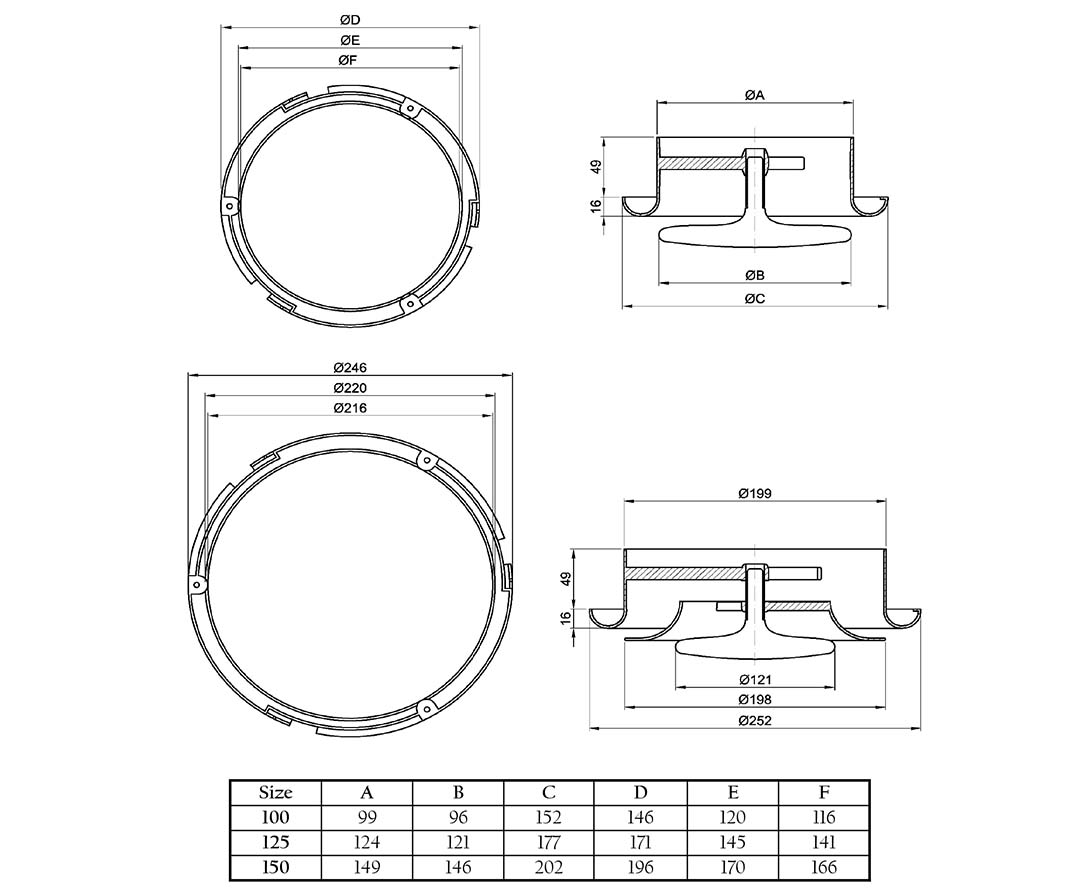

UVP
UVP



Selection

Air flow rate
UV

Technical Catalog
