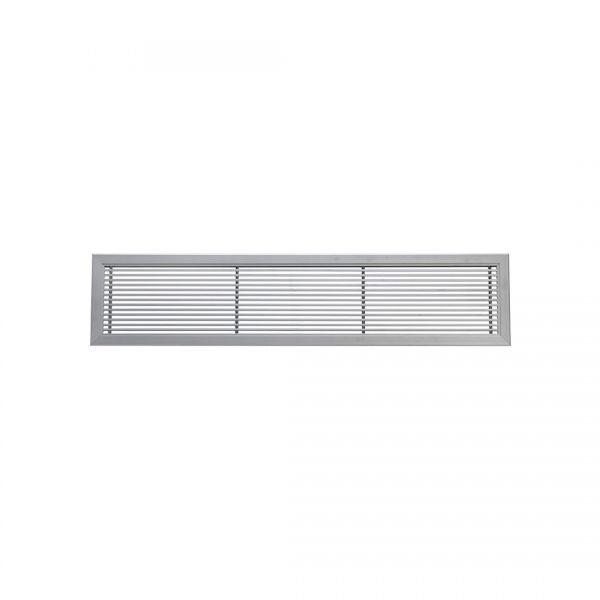

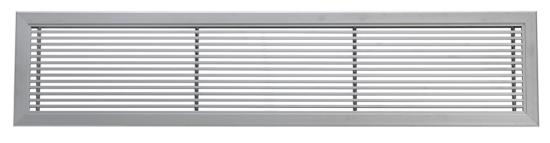

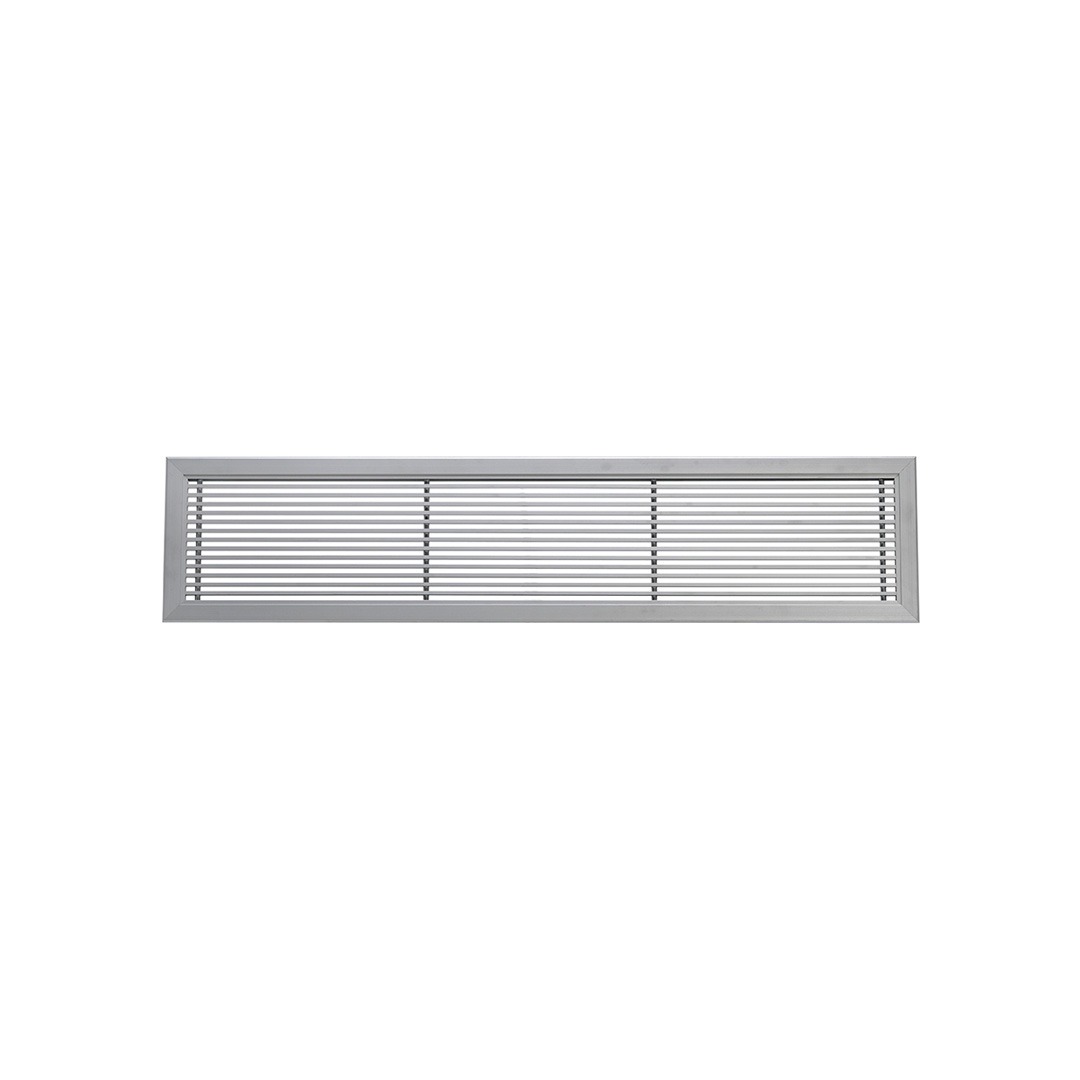

The UF Series units are supply grilles with fixed blades. They are used for supply on walls and on ceiling, on fancoil or on covercabinet of air convectors. They can be also used on the wall near to the floor when it is required the lasting of aestethic and the continuous air-intake in wide rooms.

Technical data

  • Standard dimensions from 200x75 up to 2.000x600 mm
  • Practicable special dimensions on demand up to 2.000x600 mm in unique piece
  • Practicable special dimensions for length superior to 2 m by composition
  • Wholly silver anodized aluminium standard construction
  • RAL 9010 painted aluminium construction on demand

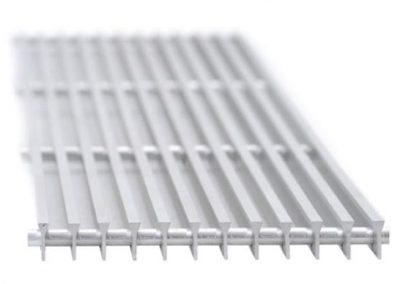

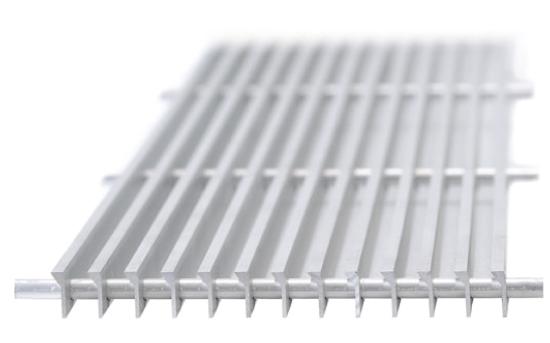

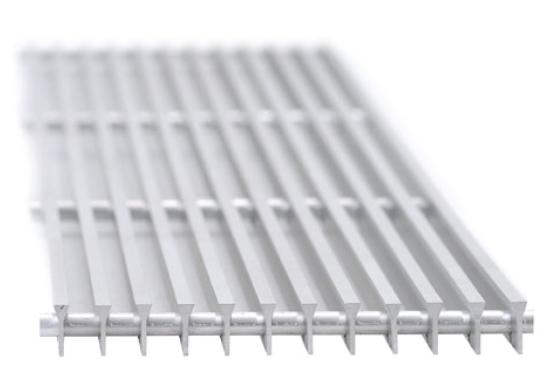

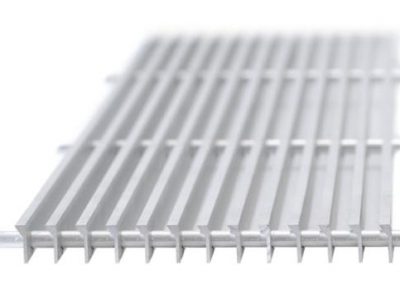

  • Fixed with 12,5 mm pitch, symmetrical profile (UF0) or 15° degree inclined (UF1) blades
  • Series variants:

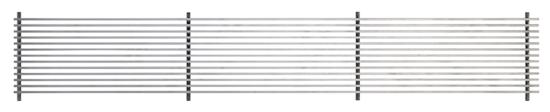

    • Mod. UF 0/1 : grilled with 0°/15° inclined blades
    • Mod. UF 0/1 A : selvage with standard frame and 0°/15° inclined blades
    • Mod. UF 0/1 B : selvage with flat frame and 0°/15° inclined blades

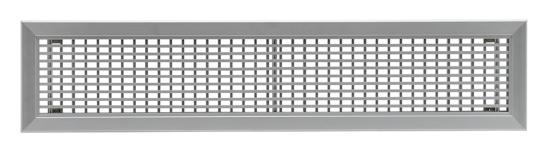

    • Mod. UF 0/1 AH : selvage with 0°/15° inclined fixed blades and second series of adjustable blades
    • Mod.UF…P1 : selvage with grilled door
    • Mod. UF…P2 : selvage with 2 grilled doors


  • Steel Plenum PP30 and PP40
  • Counterframe UTC
  • Volume control damper SC
