Jet diffusers
KVA

Back to Diffusion

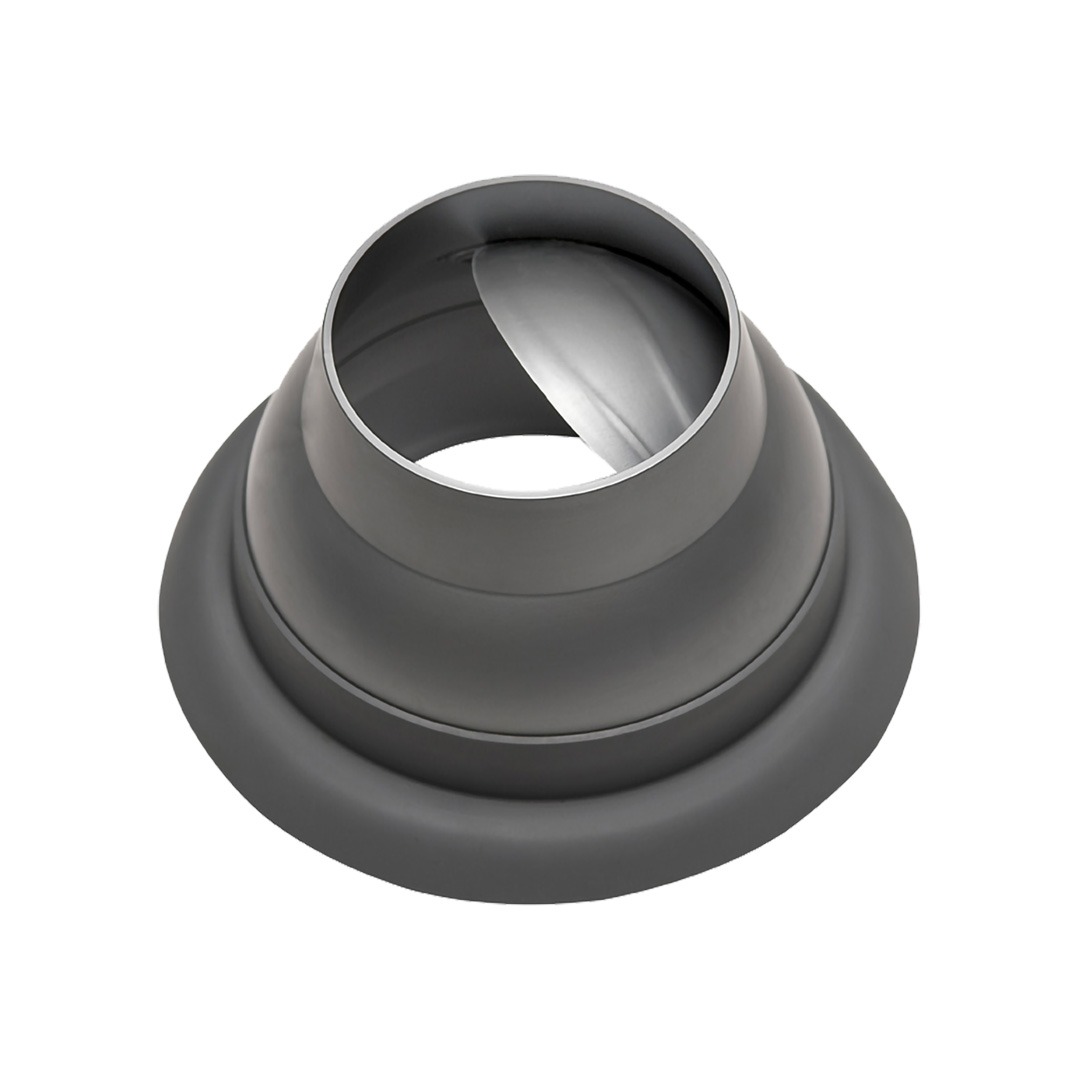

The KVA Series units are diffusers with high induction nozzle. These diffusers are apt to both circular and rectangular duct installation with patented rapid assembling (no. MI2004A002299). The output air-flow can be regulated by a knob on the nozzle body, which is linked to an internal damper.

Technical data

  • Available diameter from 50 up to 100 mm
  • Nozzle with ABS RAL 7005

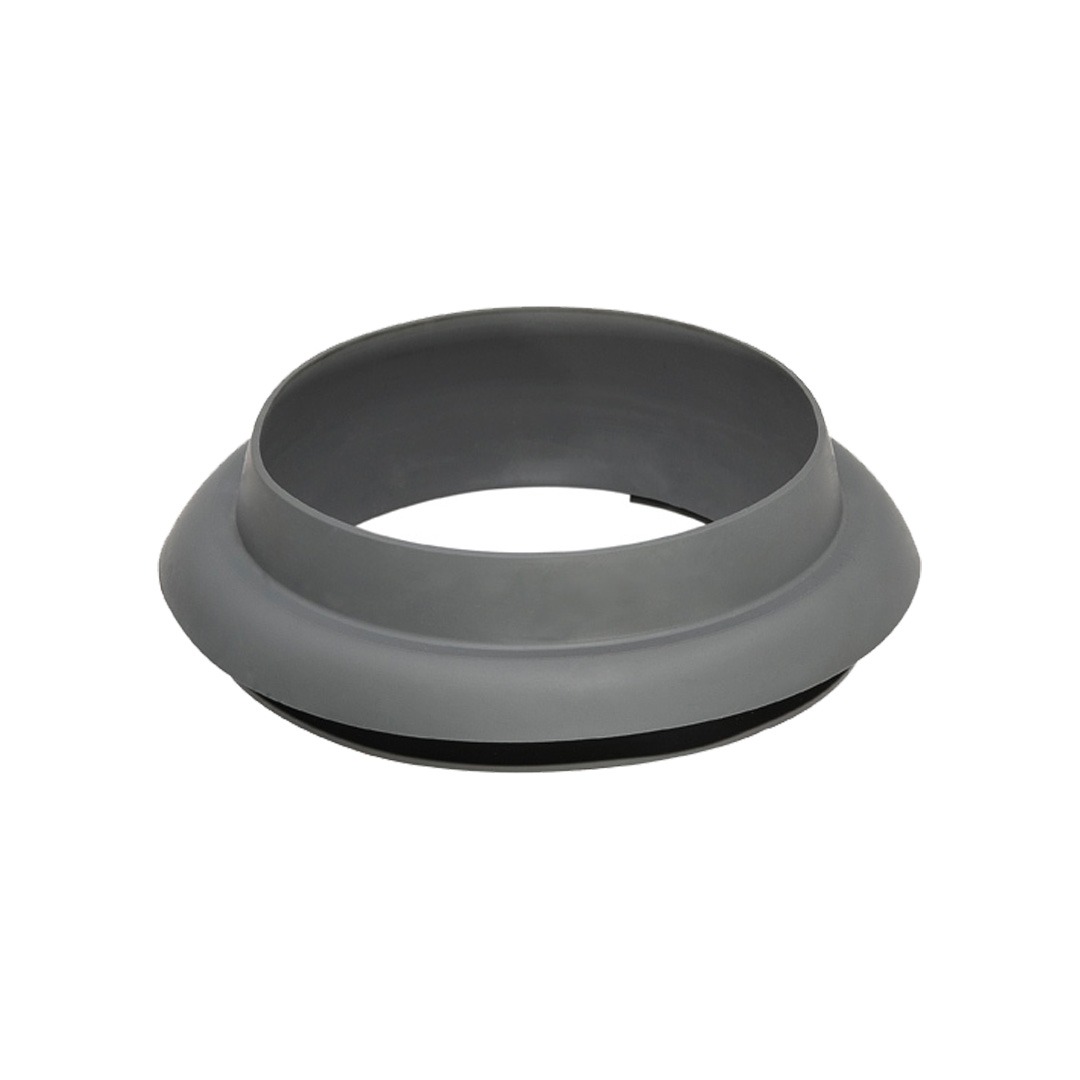

  • Connection with EPDM RAL 7005
  • Installation height between 2,0 and 6,8 m
  • Air air-flow from 40 up to 250 m3/h
  • Fixing on a hole (Ø113 per KVA 50 and Ø 168 per KVA 100) directly practicable on the duct

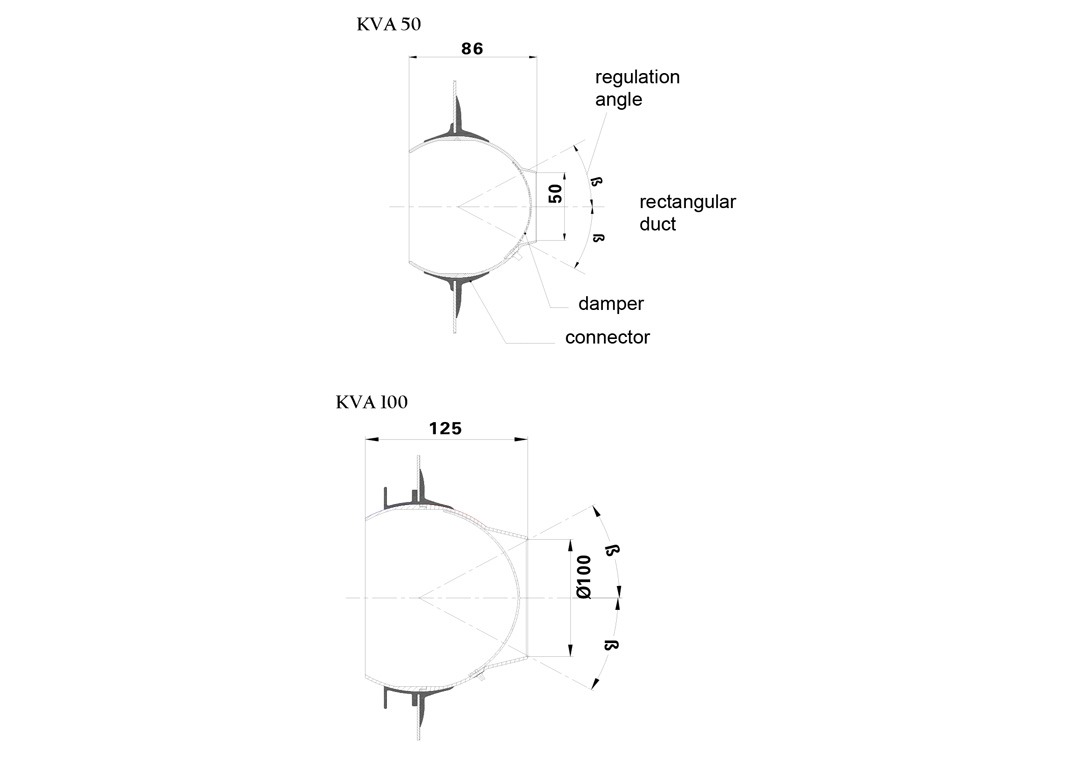

Dimensions

KVA Series
KVA



Selection

Air flow rate
KVA

Technical Catalog
