Ceiling diffusers
KQ43

Back to Diffusion

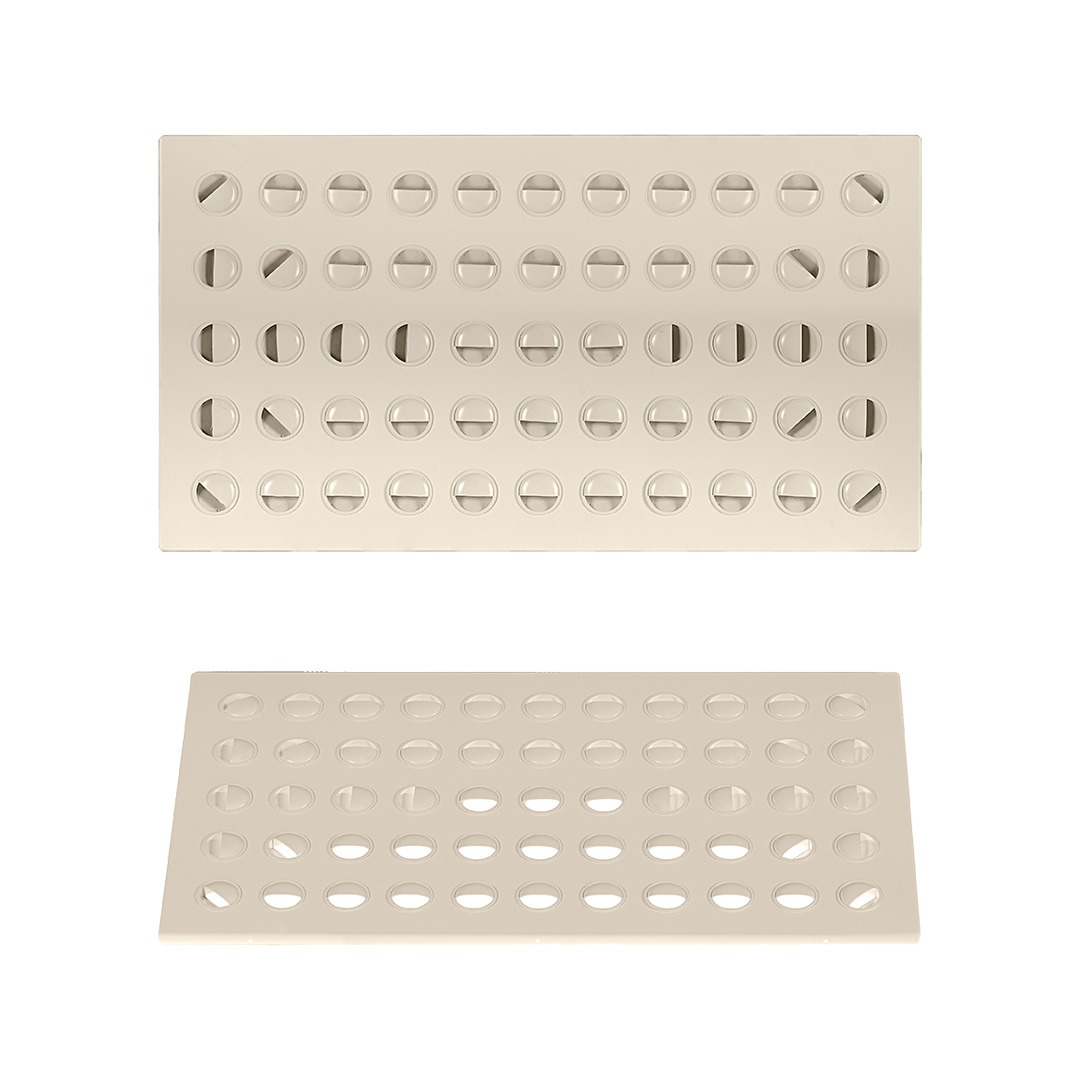

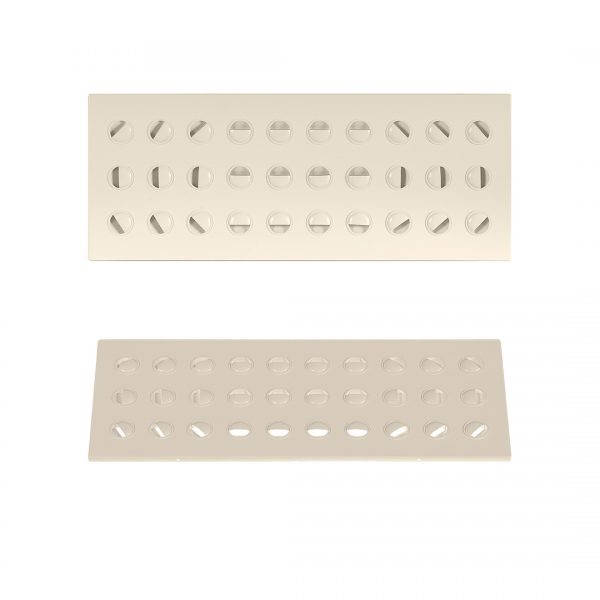

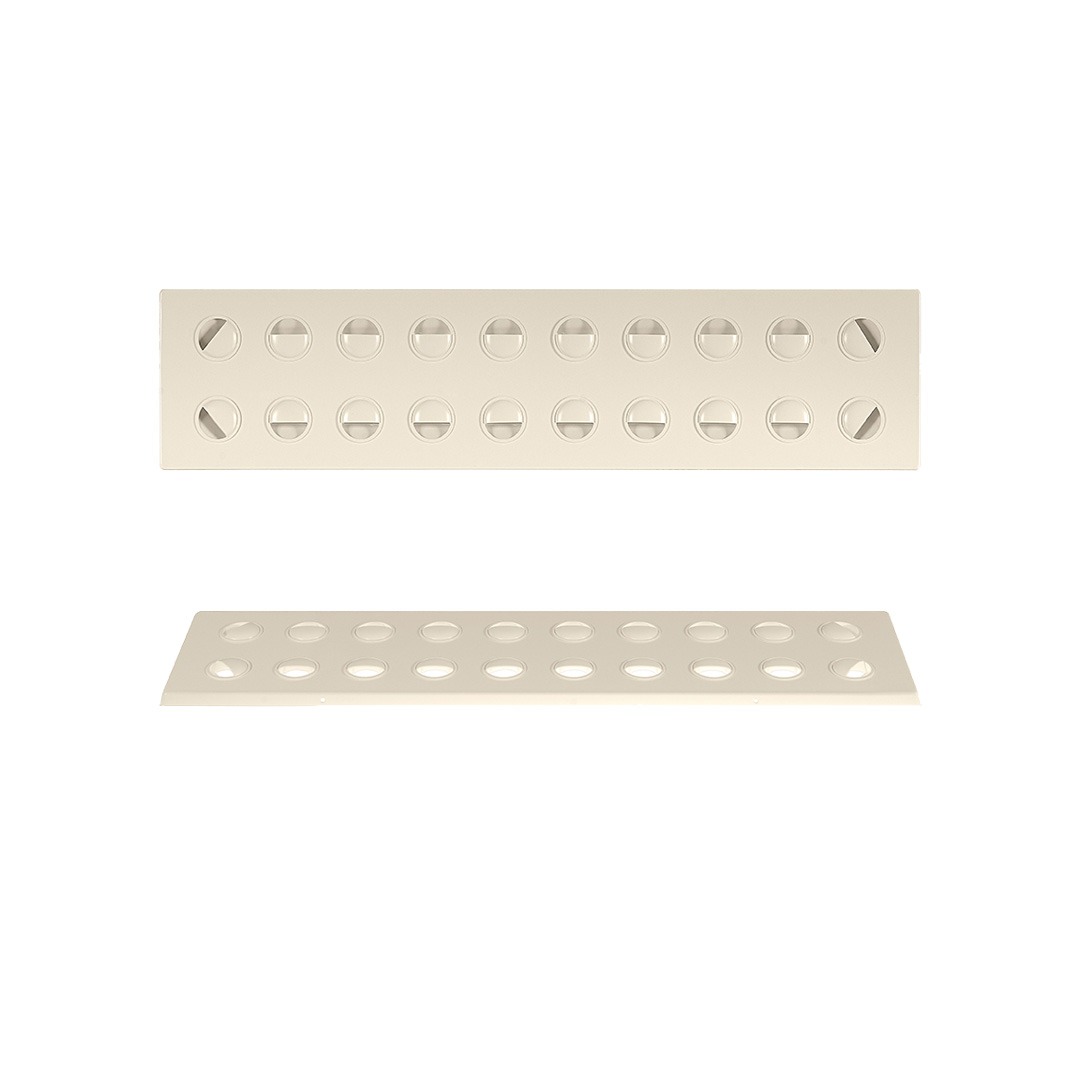

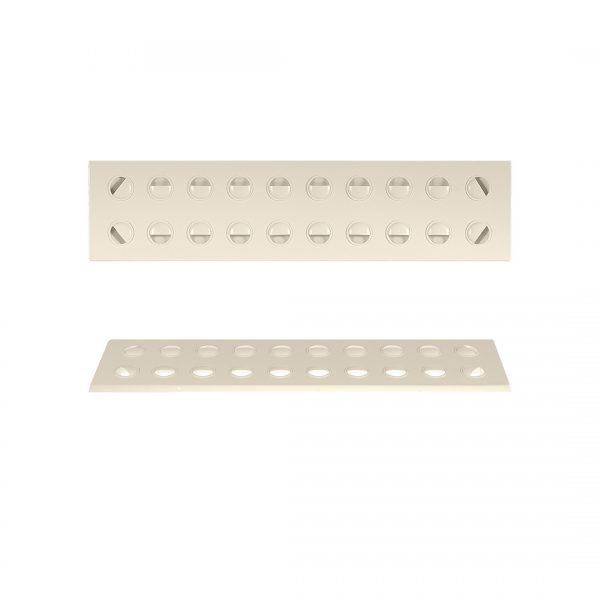

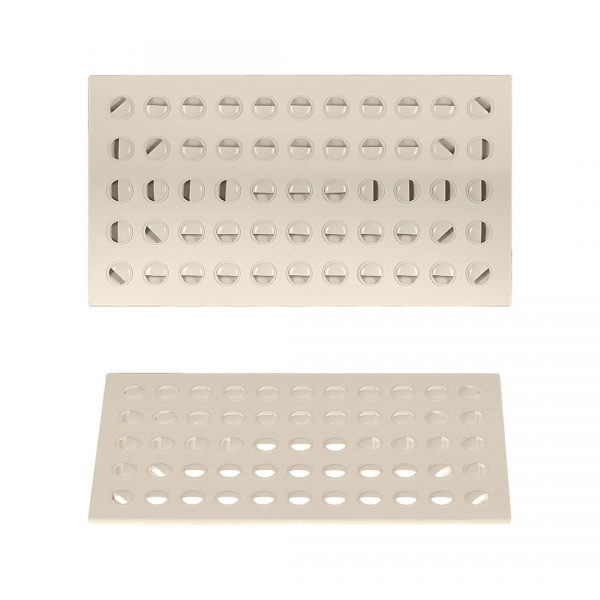

KQ43 series units are rectangular nozzles of the panel diffusers. The number of nozzles can be individually oriented. They can be used both in supply and return, and are installed on the ceiling. Apply where it is required is a modern design and appreciated the ease of installation and adjustment of the launch.

Technical data

  • Sizes from 115x425 to 315x1025 mm
  • Steel panel painted white RAL 9010
  • Adjustable nozzles made of polycarbonate and ABS white RAL 9010
  • Installation height between 2.6 and 4.1 m
  • Air flow rate from 20 to 570 m3 / h
  • Fixing by screws to the side plenum
  • Plenum box in galvanized steel with or without EQ, gate and isolation

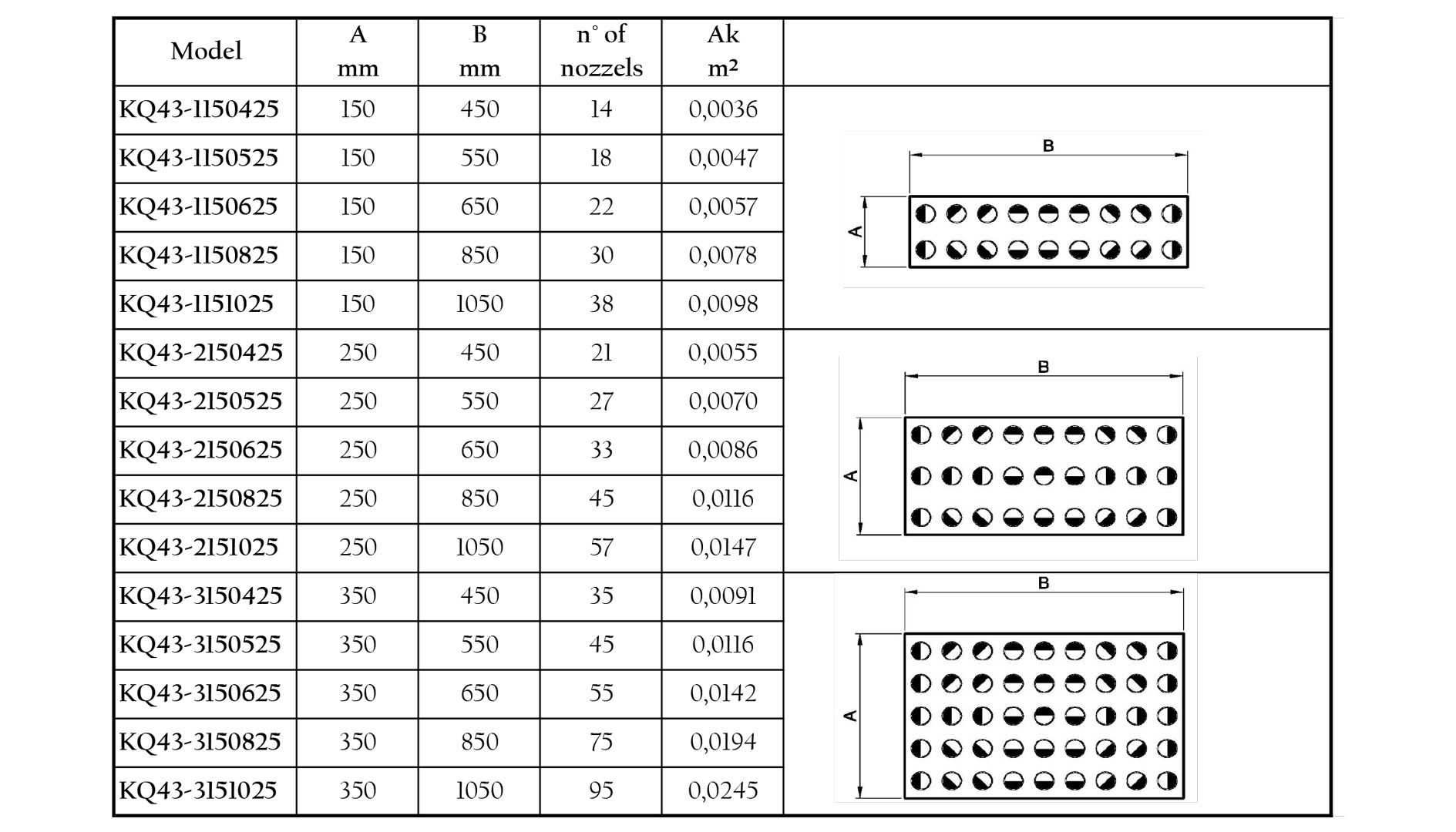

Dimensions

KQ43 Series
KQ43

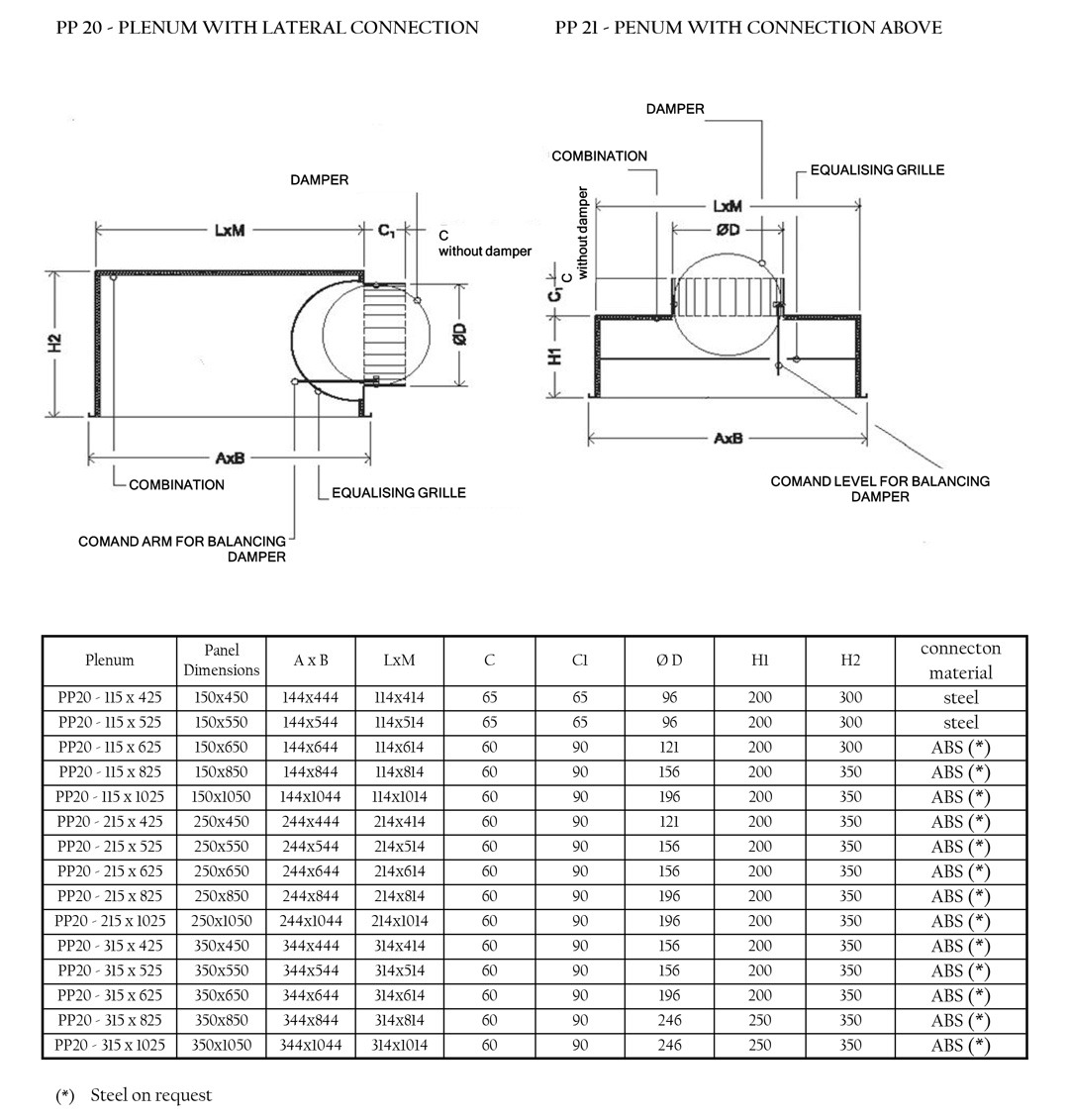

Accessory: Plenum
KQ43



Selection

Air flow rate
KQ43

Technical Catalog
