Volume control dampers
WM-10

Back to Regulation

The WM-10 Series dampers are aluminium volume control dampers for rectangular duct with horizontal counter-rotating blades. They find their application in control, regulation, balancing and calibrationof the air distribution net. The movement transmission if obtained thanks to two gear trains
while the blades profile allows a good holding characteristic in total closing.

Technical data

  • Extruded aluminium damper frame of 125 mm width
  • Duct frame flanges 30 mm
  • Minimum and maximum dimensions 200x200 and 2.000x2.000 mm
  • Aluminium couner-rotating blades with aerodynamic profile and 100 mm pitch
  • Tamboured section blades and groove extremity to improve closing
  • Movement transmission through composite gear train in PBT base
  • Stiffening transom for base B more than 1.300 mm
  • Fixing through screws on duct or UTA panel
  • Manual control supplied aside
  • Servomotor available already installed on WM-10P model
  • Operative temperature from -30 up to +130 °C

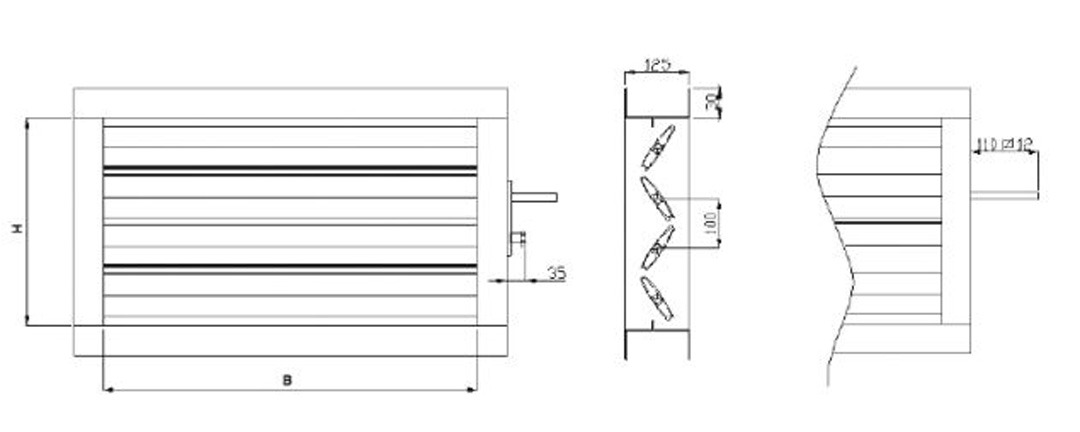

Dimensions

WM-10 Series

WM-10

Selection

-

PRESSURE DROP – ∆pt [Pa]

NOISE LEVELS FOR SINGLE SECTION – LwA [dB(A)]

CORRECTION FACTOR OF THE SECTION – K [dB(A)]
