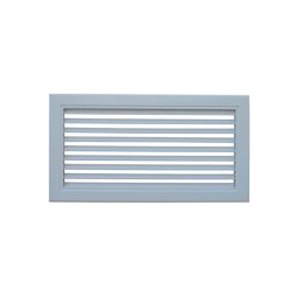

The UH Series units are residential extract grille with 45° degree inclinated flat blades. They are used generally for on the wall aspiration.

Technical data

  • Standard dimension from 200x100 up to 1.200x600 mm
  • Practicable special dimensions on demand
  • Wholly silver anodized aluminium construction
  • RAL 9010 painted aluminium on demand
  • 20 mm pitch fixed falat blades
  • Galvanized steel volume control damper with contrasting motion blades SC
  • Modular galvanized steel counterframe with walled iron beams UTC
  • Galvanized steel Plenum with or without insulation PP30 and PP40
  • Triple use clips for damper, counterframe and plenum fixing
  • Wall fixing by clips on counterframe or by screws on duct or on plenum

Accessories

  • Steel Plenum PP30 and PP40
  • Counterframe UTC
  • Volume control damper SC

Dimensions

UH Series

Selection

Air-flow rate
