Jet diffusers
KVM

Back to Diffusion

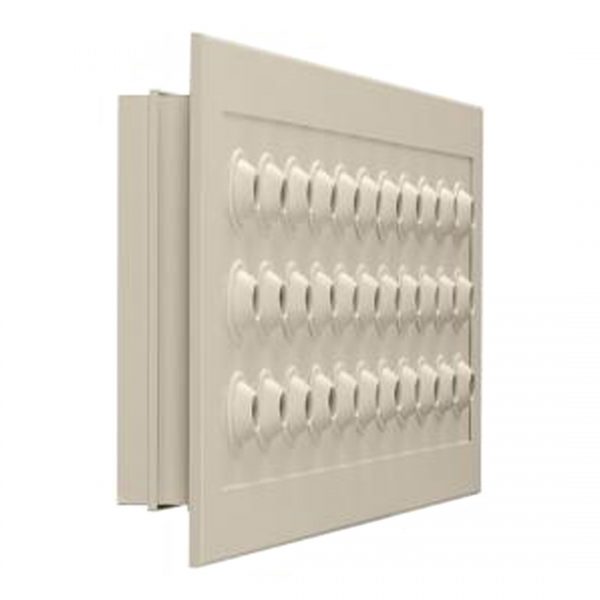

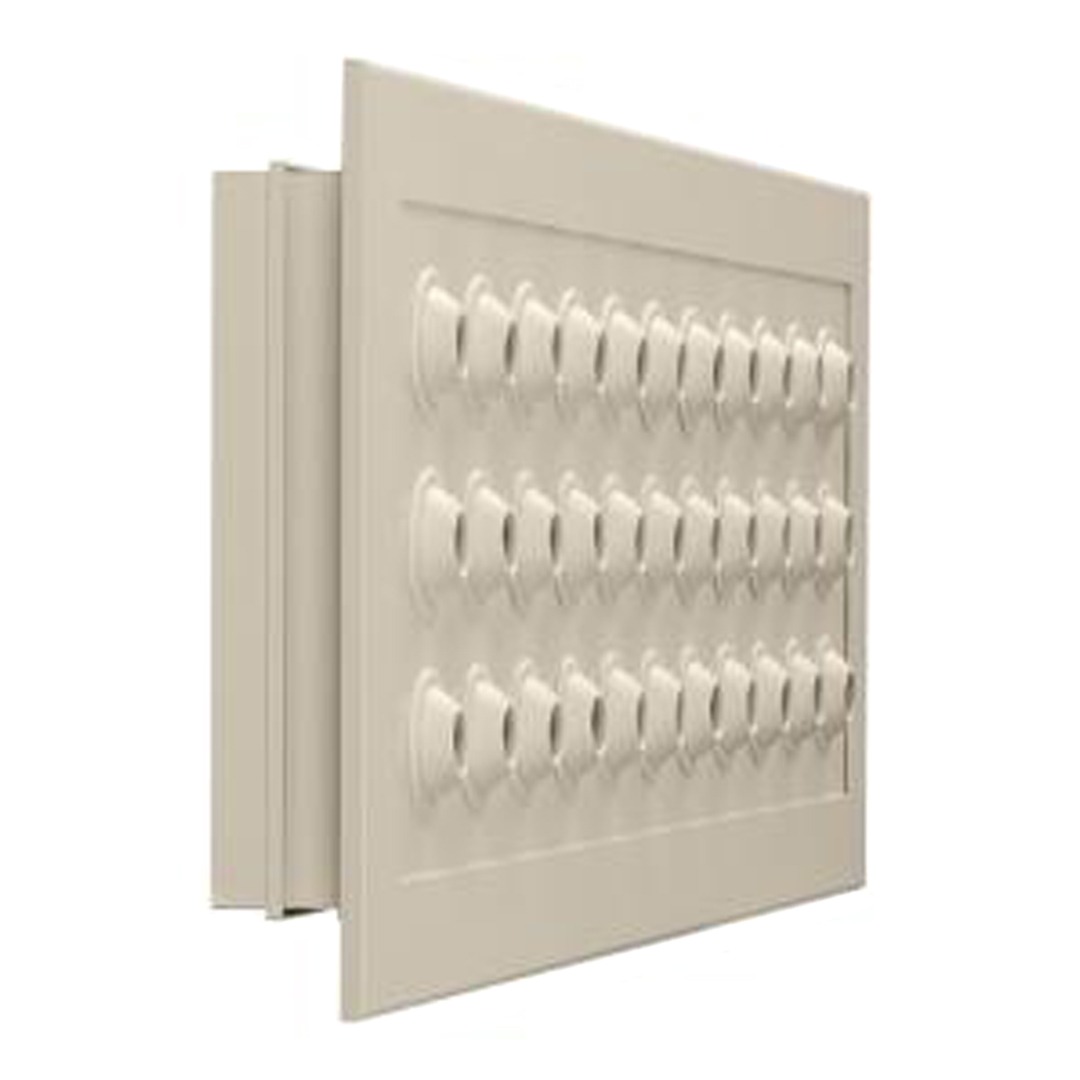

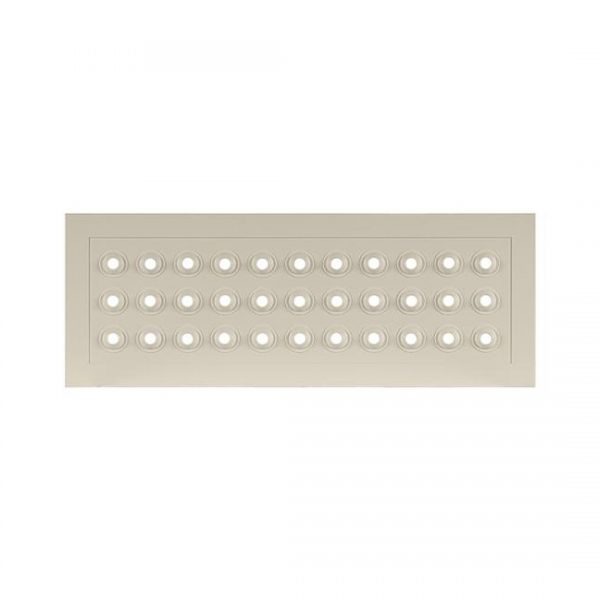

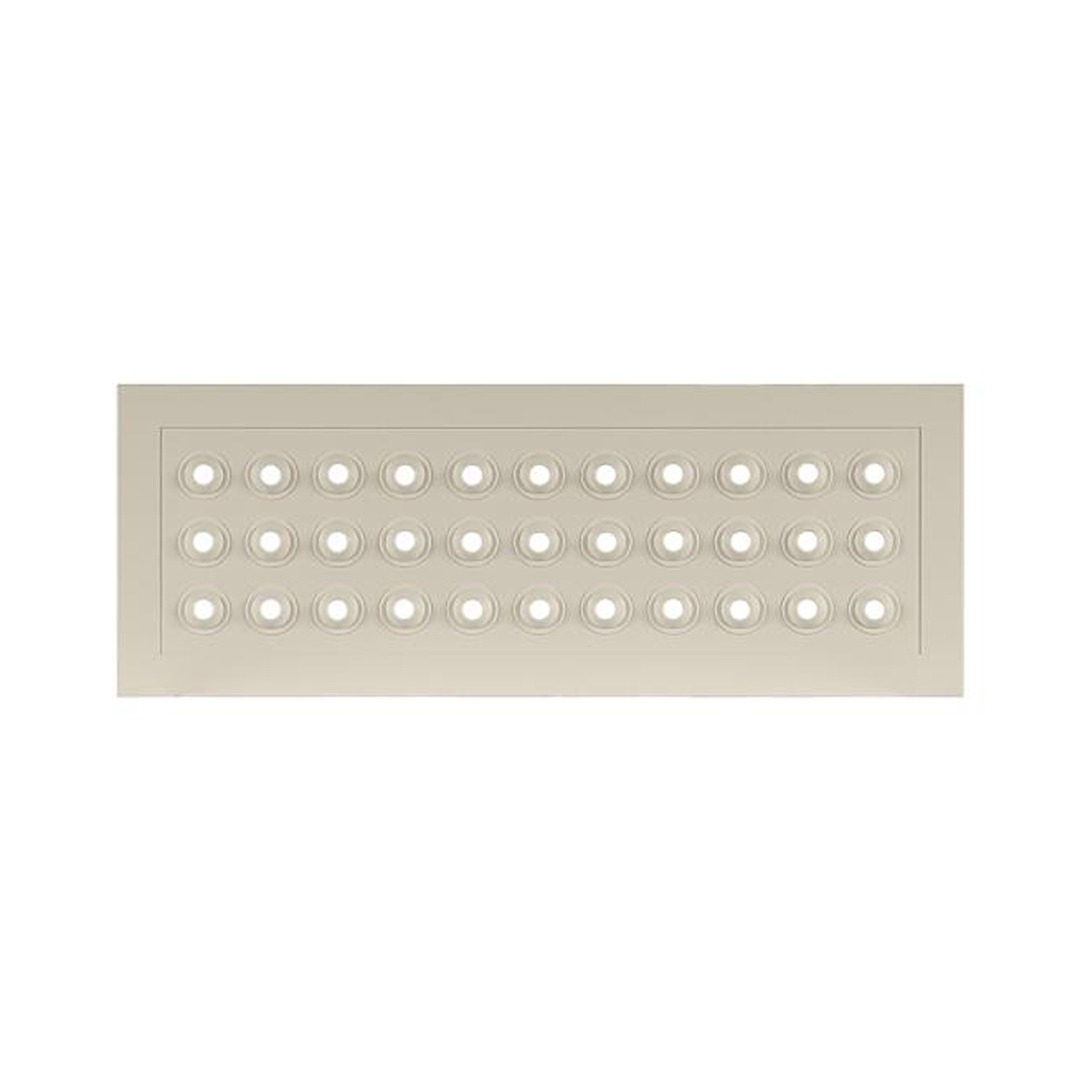

The diffuser KVM is designed for installation on rectangular duct or wall. The diffuser is equipped with a series of micro-nozzles individually adjustable, this feature provides a high versatility to the diffuser, according to the type of environment in which it is inserted.

Technical data

  • Nozzle diameter 15 mm
  • Launch of Deep
  • High number of jets out
  • High induction
  • Plate steel, aluminum frame with nylon micronozzles 9010

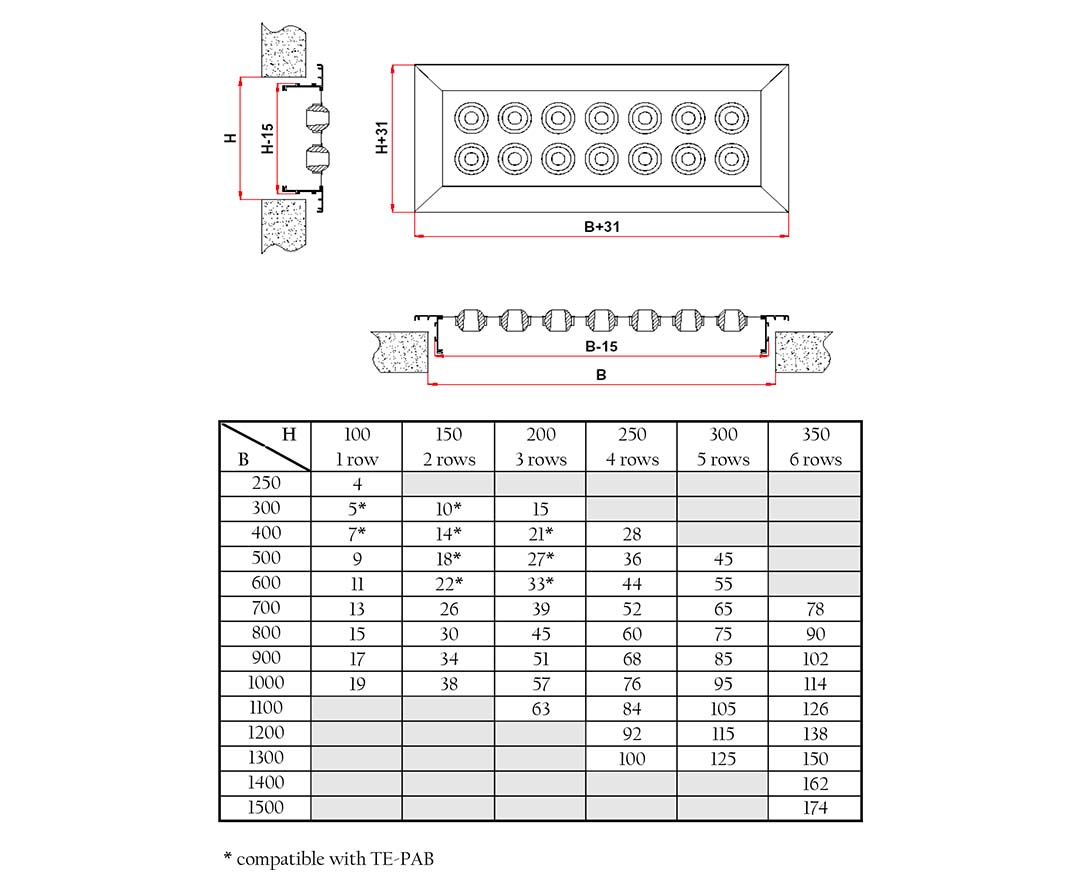

Dimensions

KVM Series
KVM

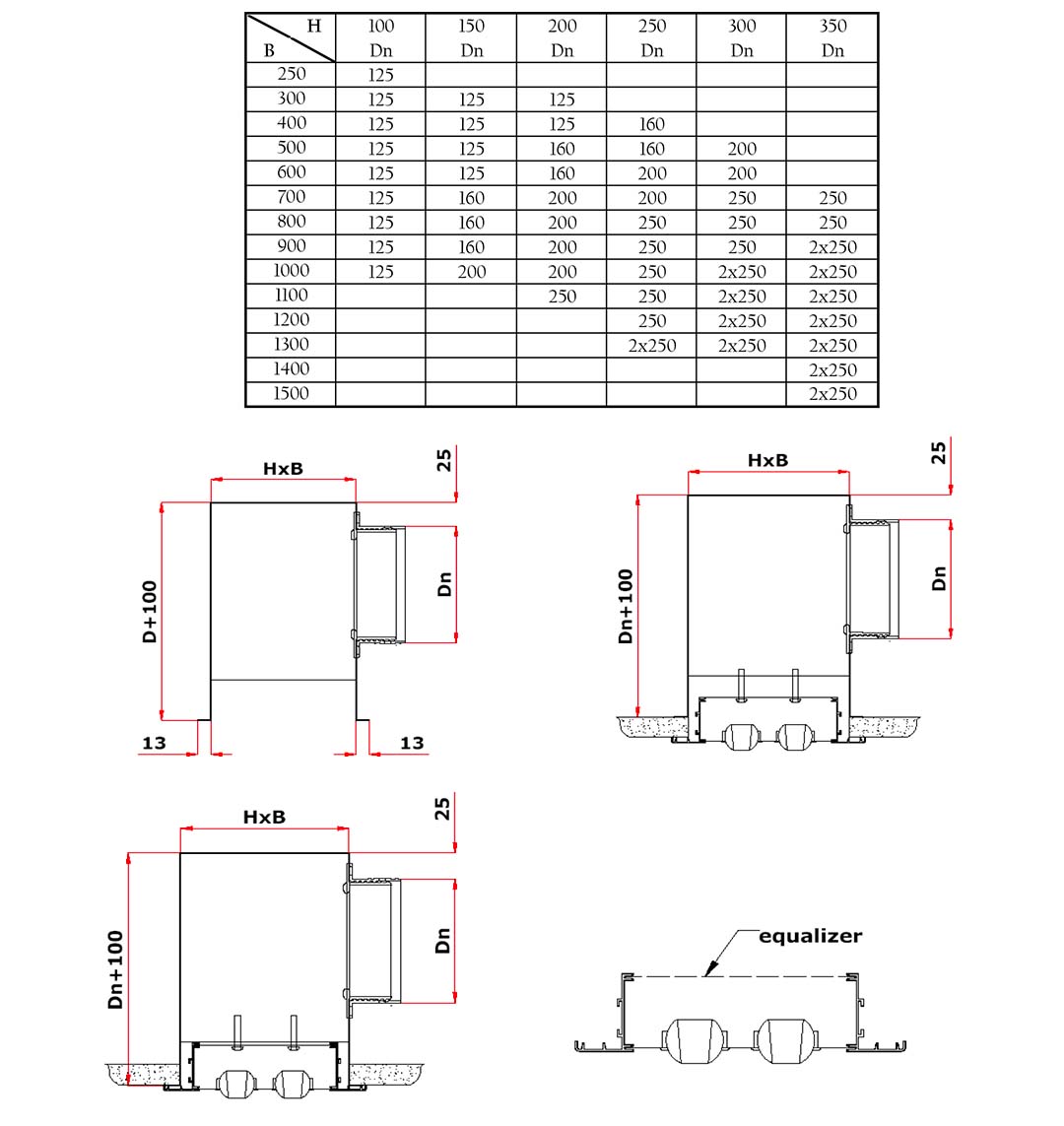

Accessori: Plenum
KVM



Selection

Air flow rate
KVMKVMKVMKVMKVM

Technical Catalog
