Jet diffusers
KV BB

Back to Diffusion

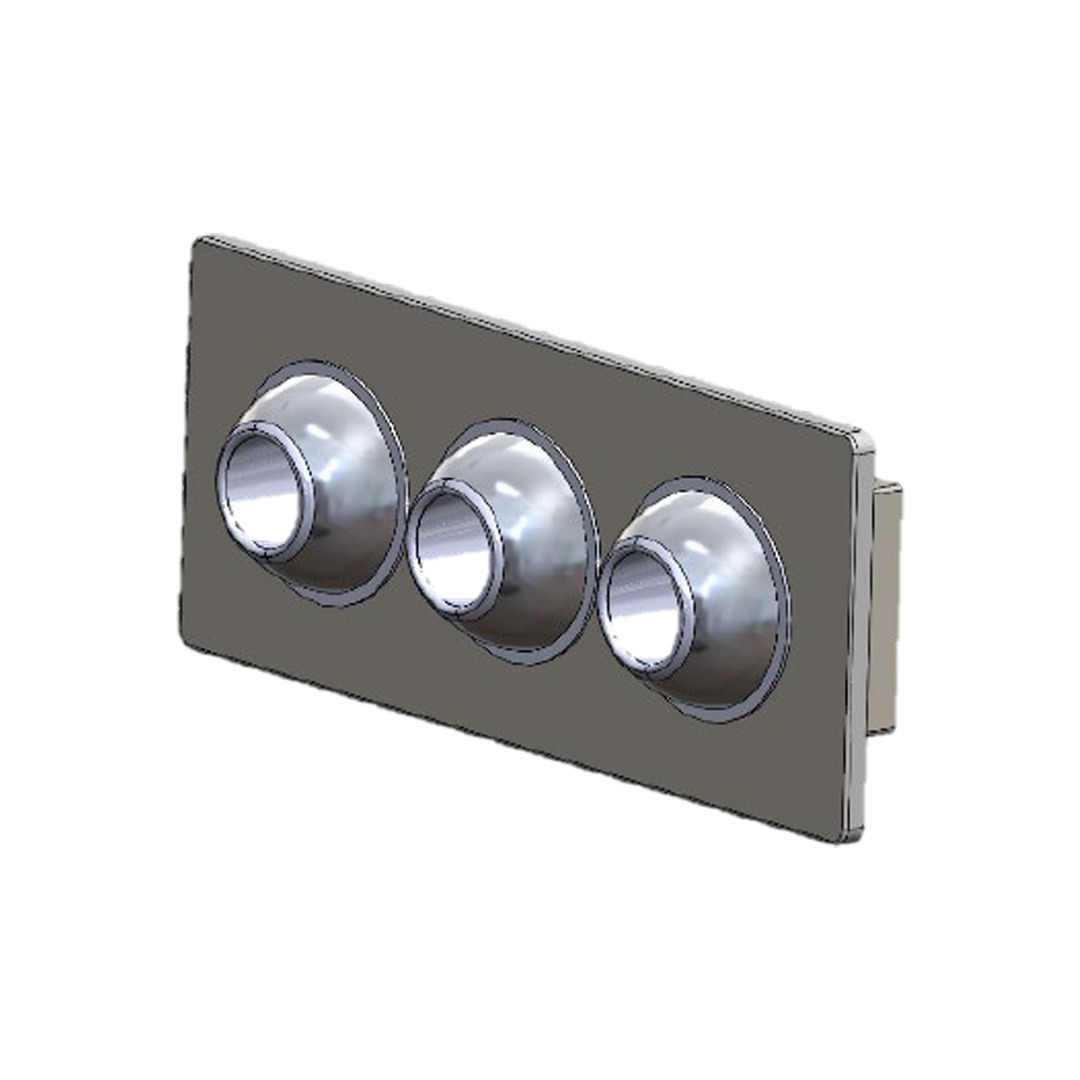

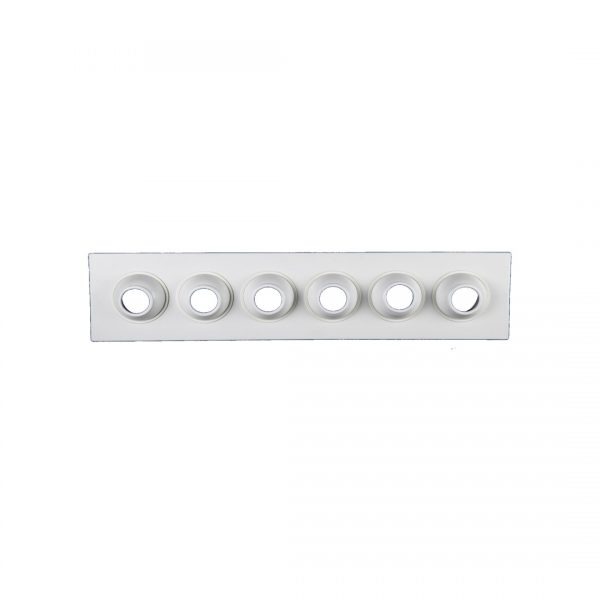

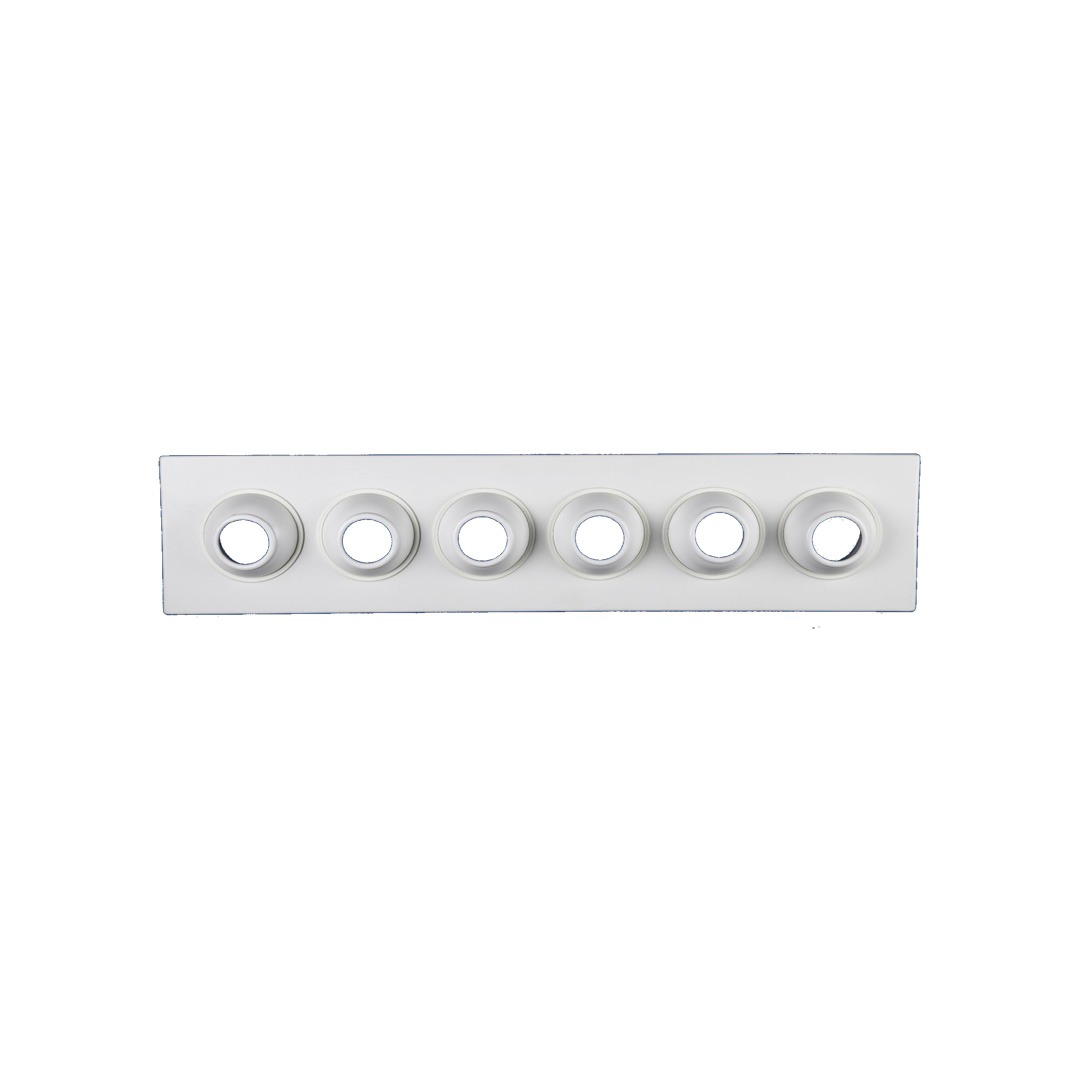

Diffuser consisting of a series of KV 40 nozzles that can be manually oriented in any direction with a 30°angle limit. Suitable for installation in very large environments such as stations, airports, hypermarkets.

Technical data

  • Painted RAL 9010 Gloss 80% or RAL 9003 Gloss 30%
  • Aluminium nozzles, steel panels

Dimensions

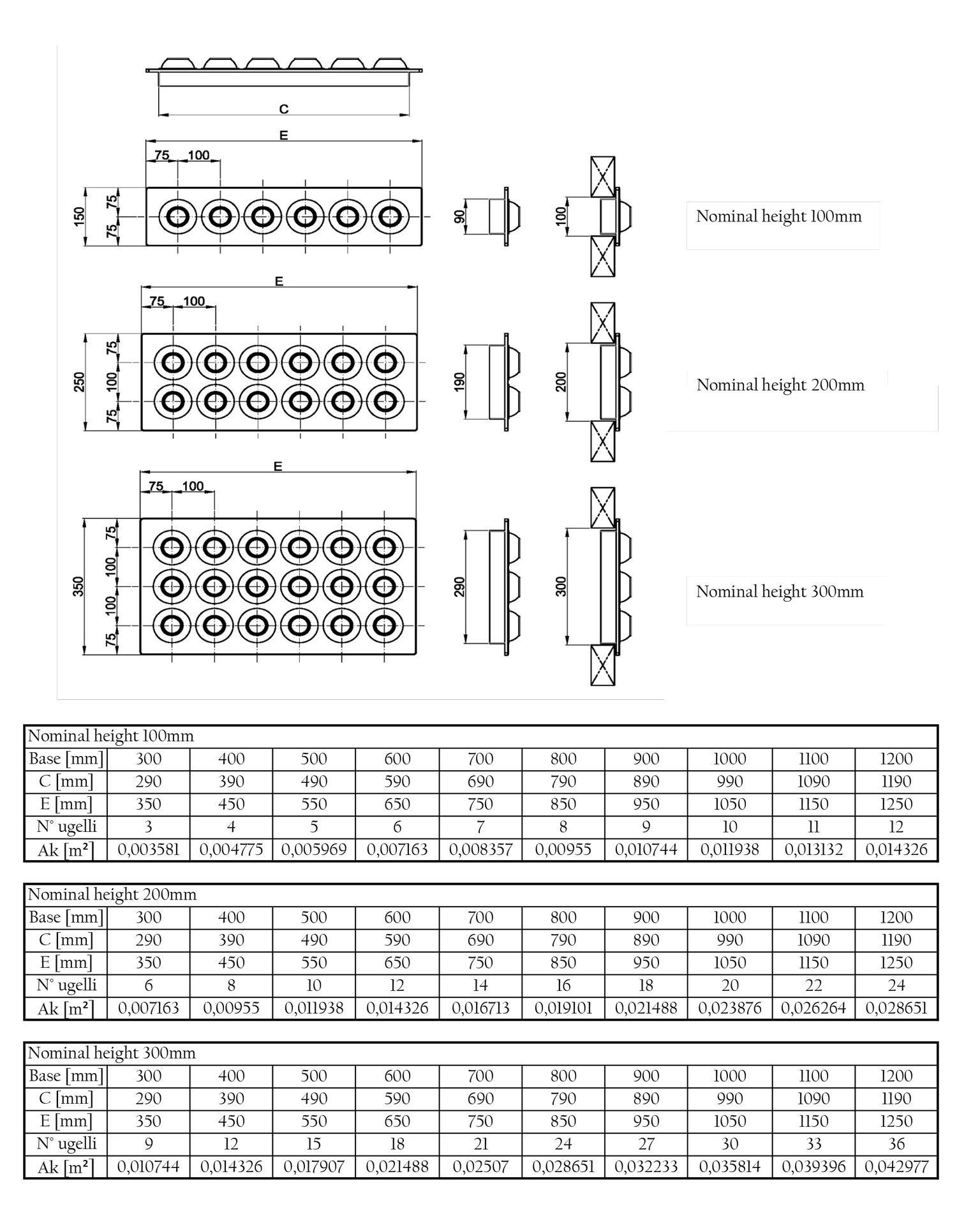

KV BB - DIMENSIONS WITHOUT FRAME VERSION INSTALLATION WITH CLIPS

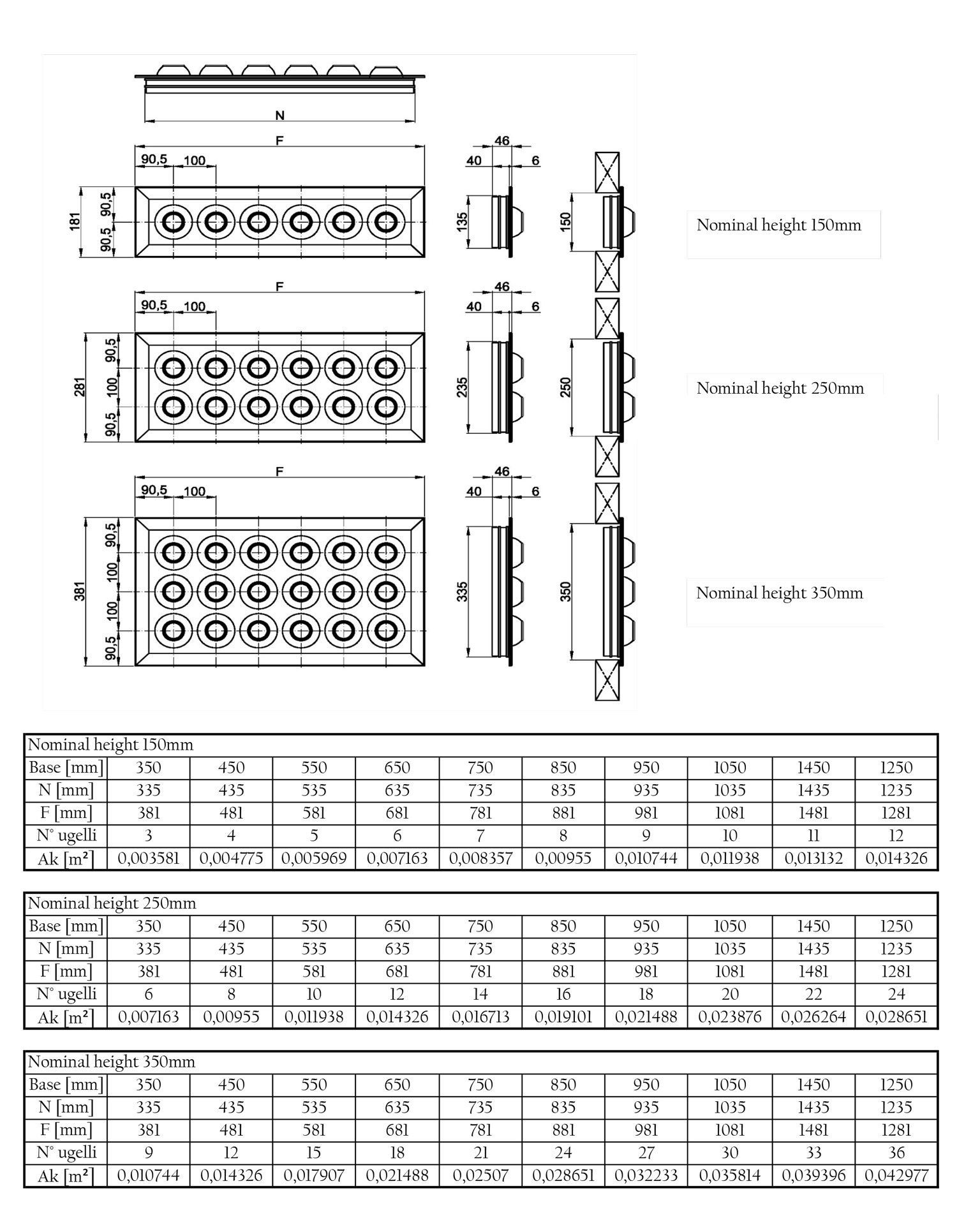

KV BB - DIMENSIONS WITH FRAME VERSION INSTALLATION WITH MOUNTING BRIDGES

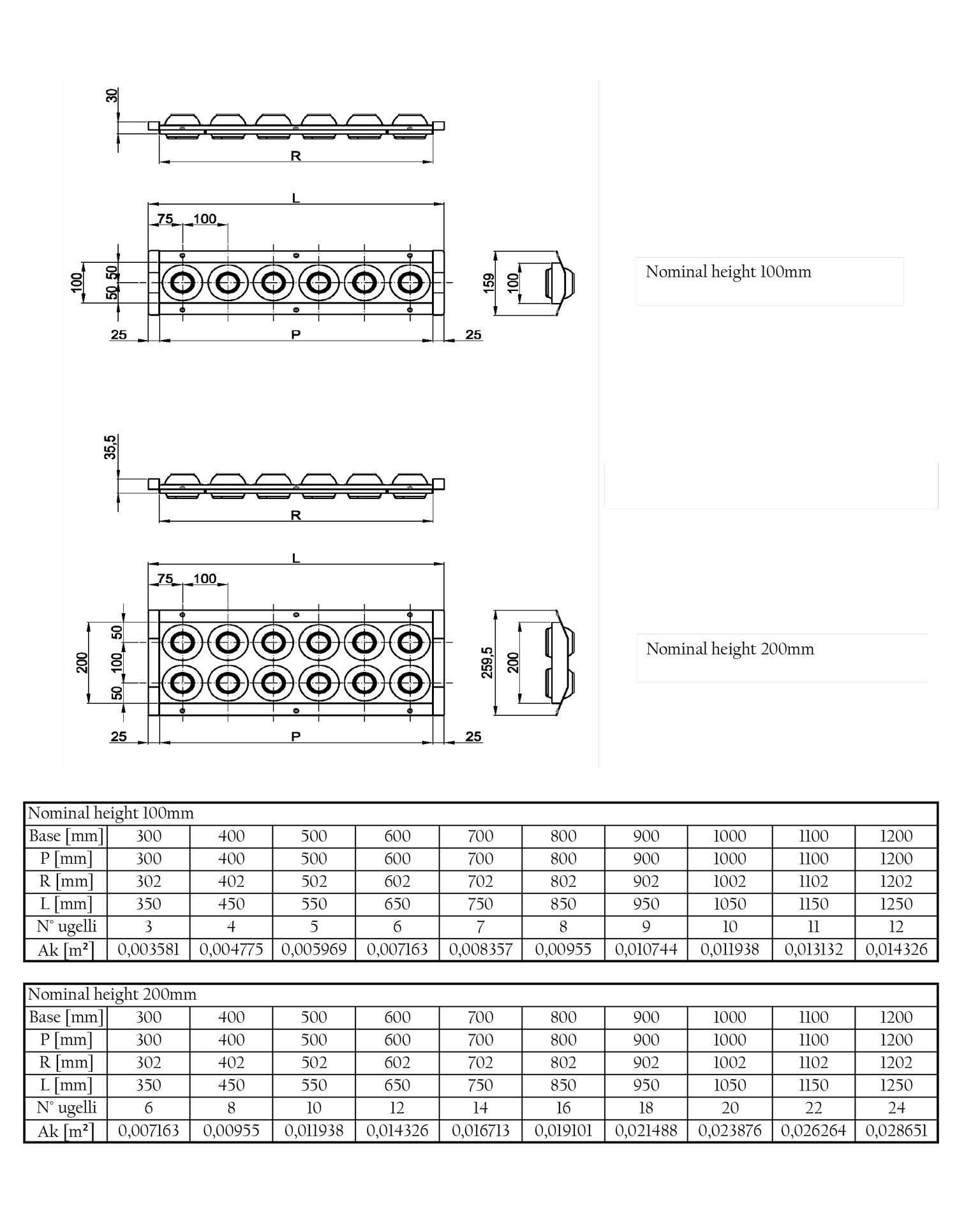

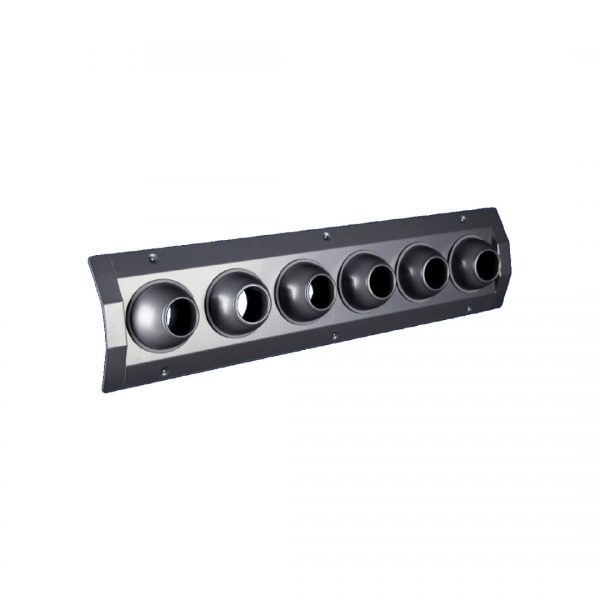

KV BB - DIMENSIONS WITH SHAPED PANEL VERSION FOR MOUNTING ON CIRCULAR DUCTS

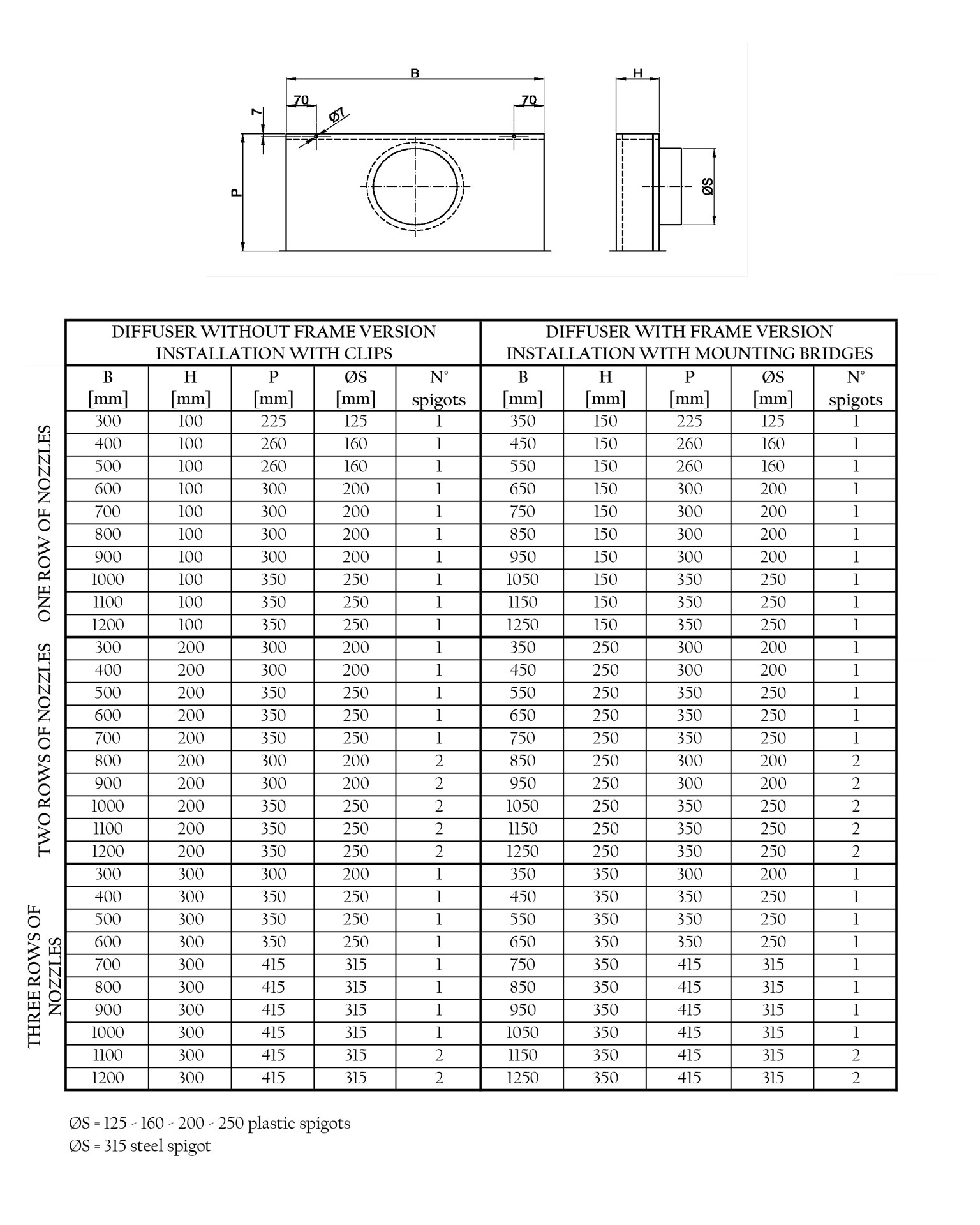

Accessori: Plenum

Selection

Air flow rate

KV BBKV BBKV BB

Technical Catalog
