Ceiling diffusers
KTF

Back to Diffusion

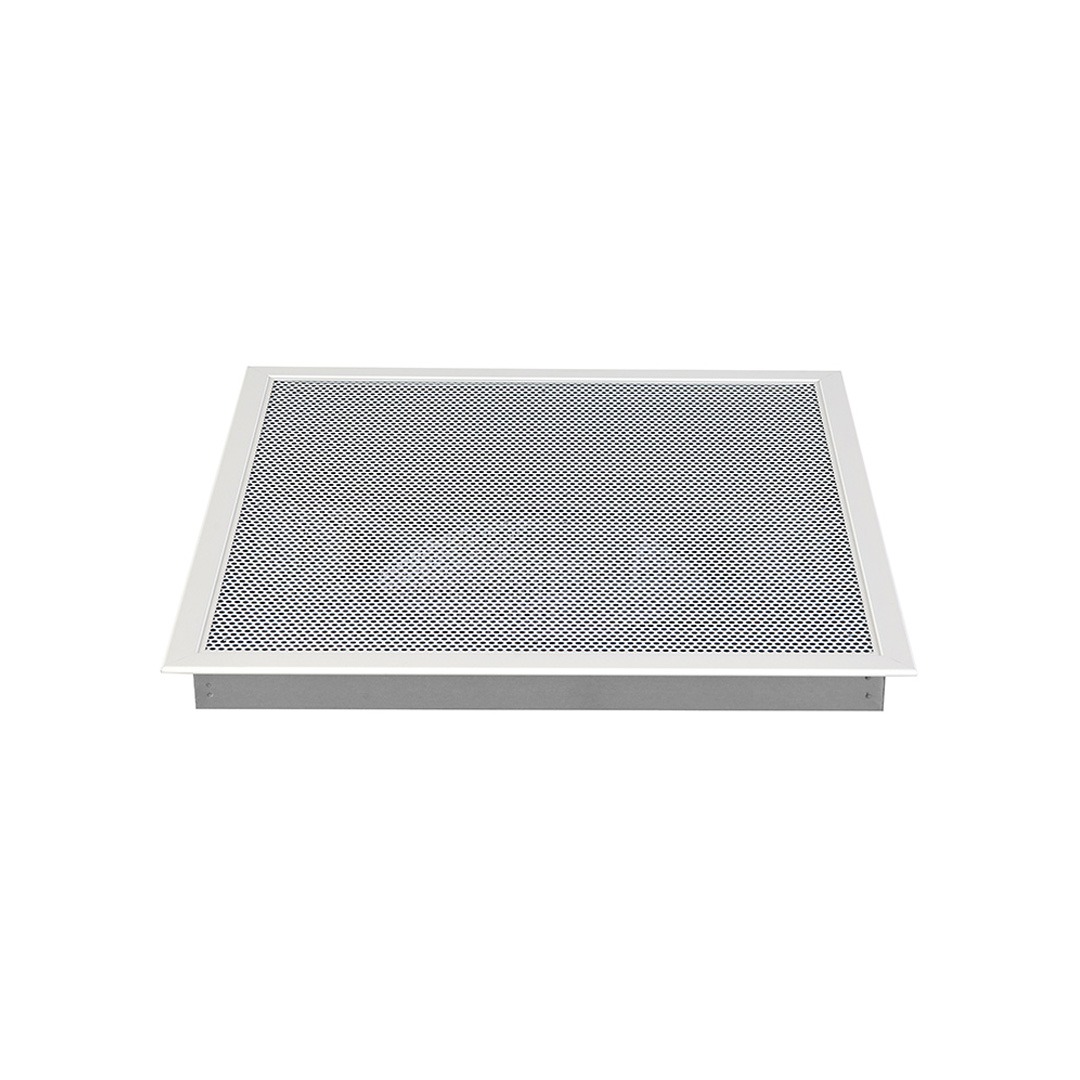

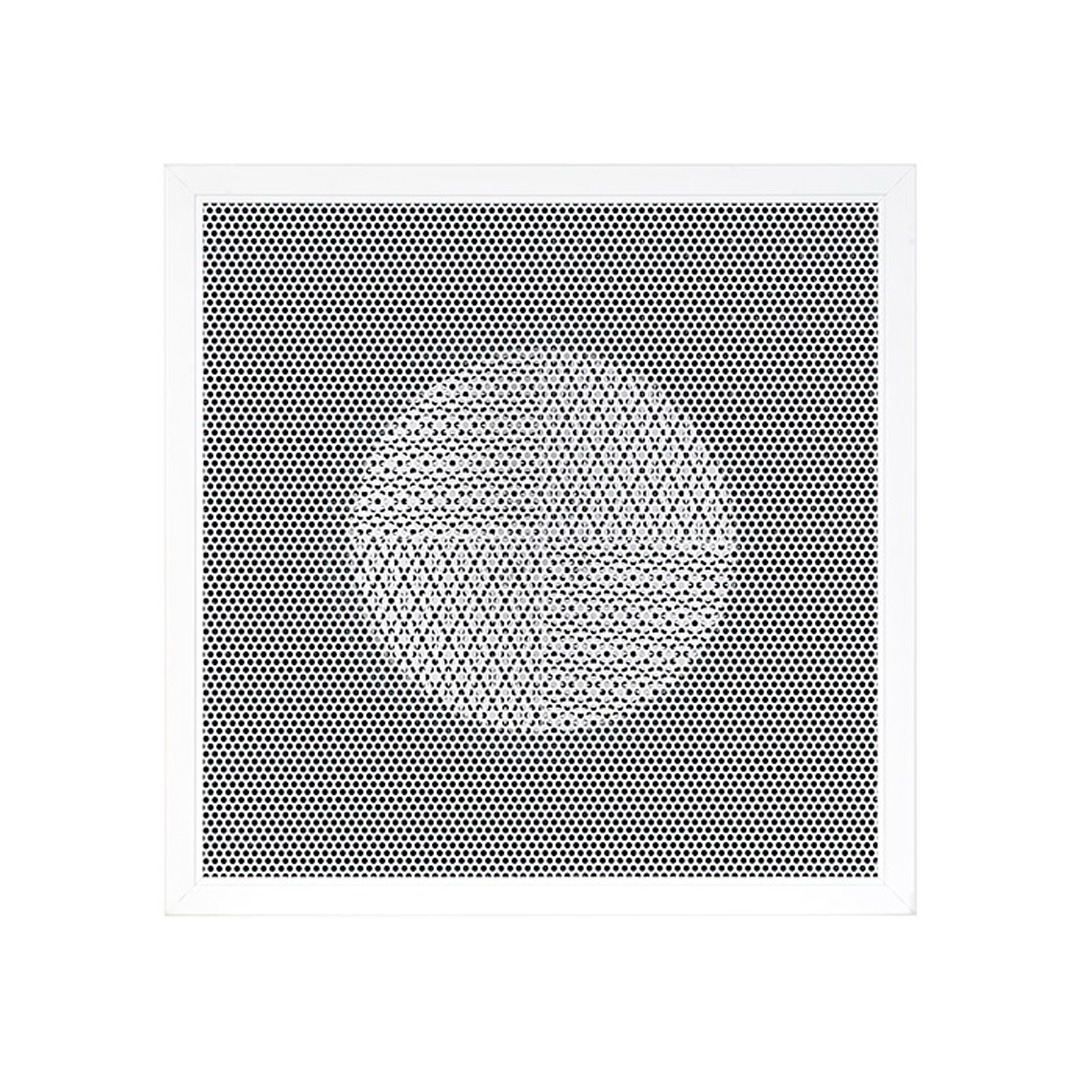

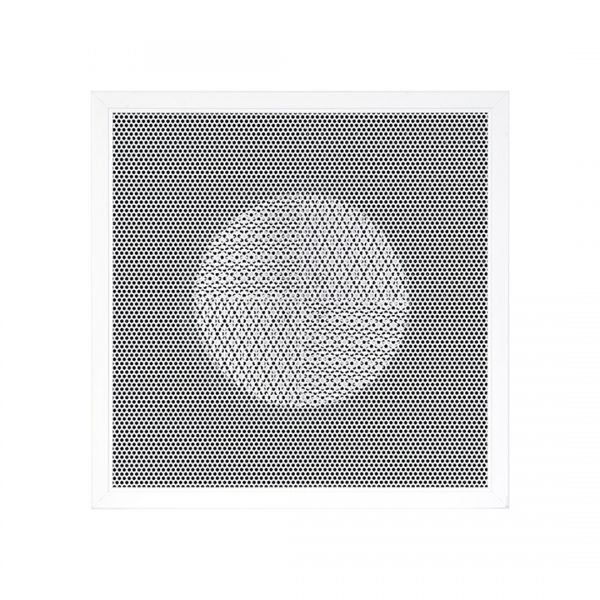

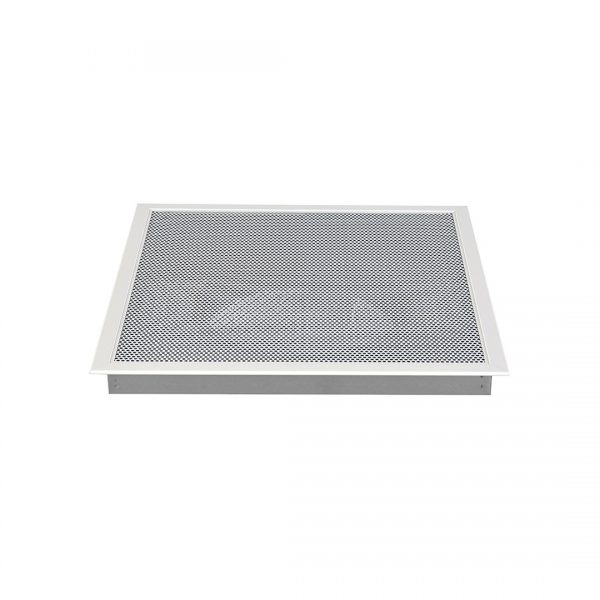

KTF Series diffusers are made of a external perforated panel inserted into an aluminium frame and a plenum connected with a connection on the top side. Steel deflectors can be placed inside allowing to modify the direction of the air on exit by adjusting their position.

Technical data

  • Sizes from 300x300 to 595x595
  • Air inlet diameter from 160 to 315mm
  • Panel diffuser steel frame with aluminum, galvanized sheet steel plenum
  • white paint finish RAL 9010
  • Installation height between 2.6 and 5.0 m
  • Internal baffles on request

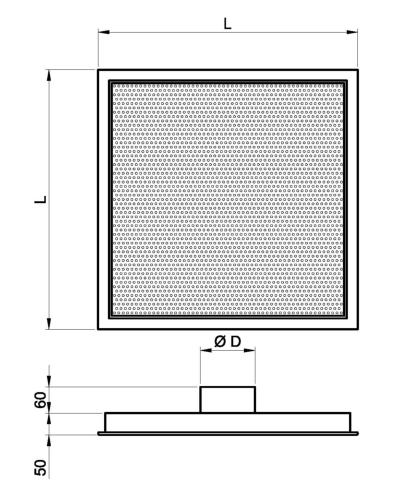

Dimensions

KTF Series
KTF



Selection

Air flow rate
KTF
