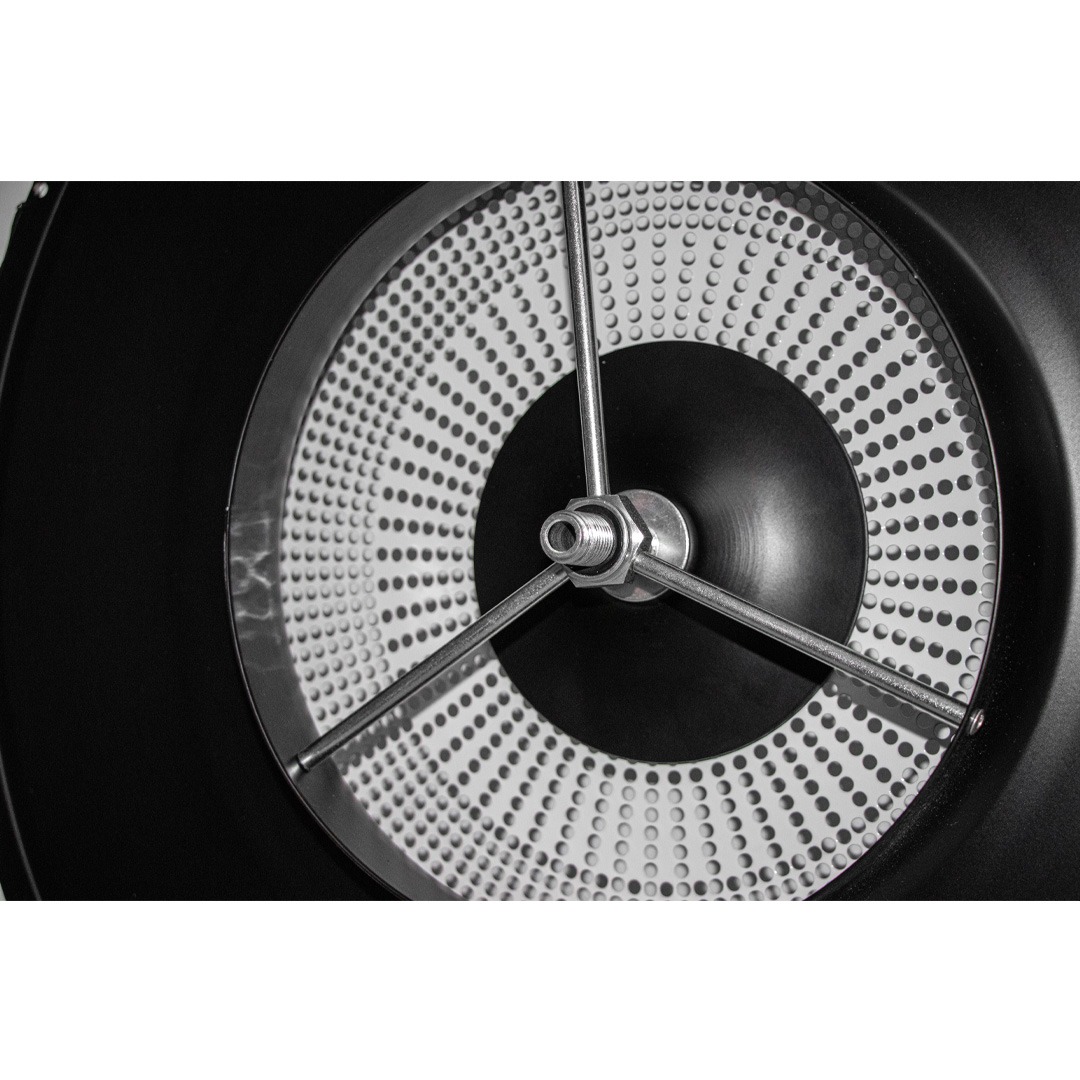

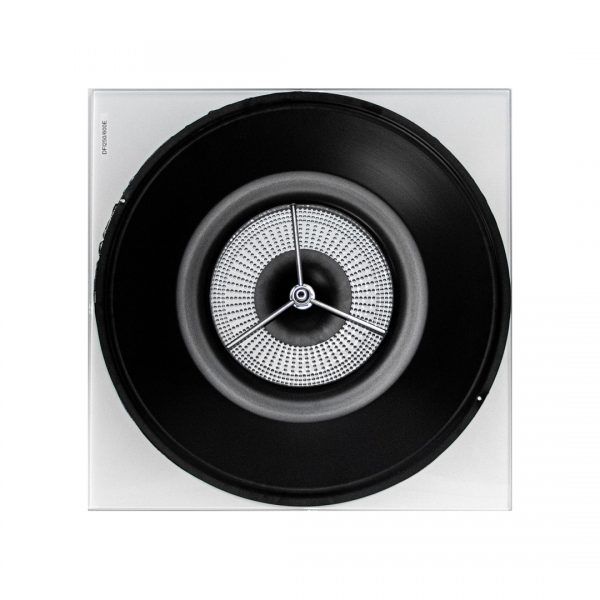

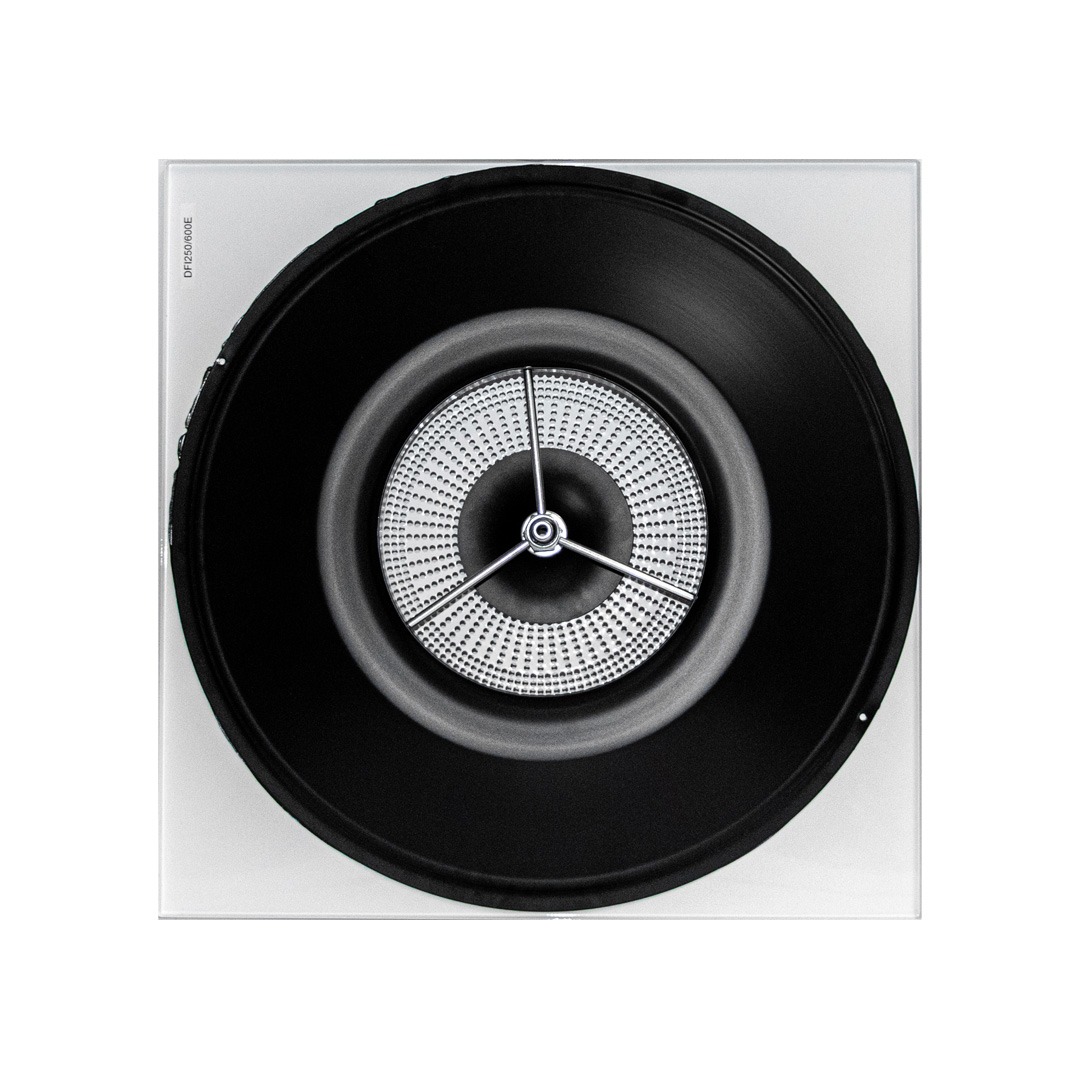

Ceiling diffusers
KQI

Back to Diffusion

The KQI series impulse diffusers are generally used in rooms with a ceilings about four meters high. They are characterized by a horizontal throw and elevated "Coanda effect". The impulse air flow perfectly follows the ceiling, creating an extraction effect of the air present in the room. This flow, mixing gradually with the air creates a high inductive effect ensuring optimum comfort characterized by temperature uniformity in the environment and lack of perceived air currents inside the occupied zone.

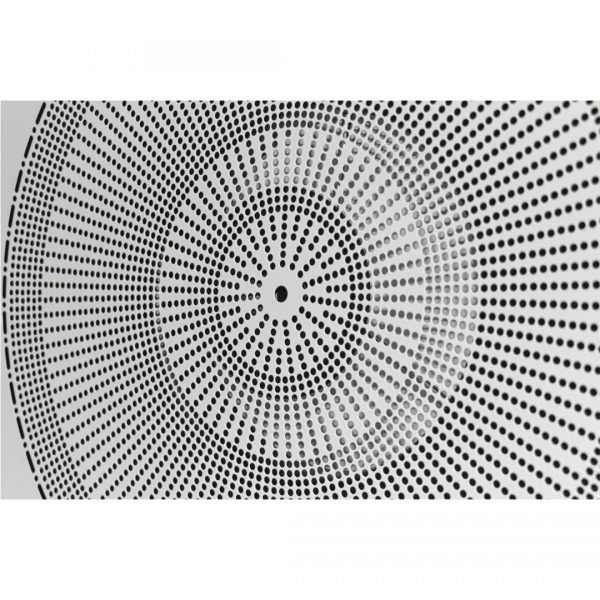

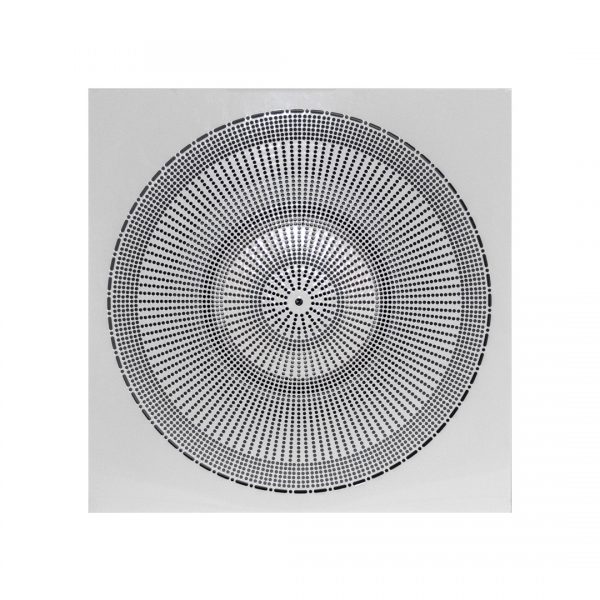

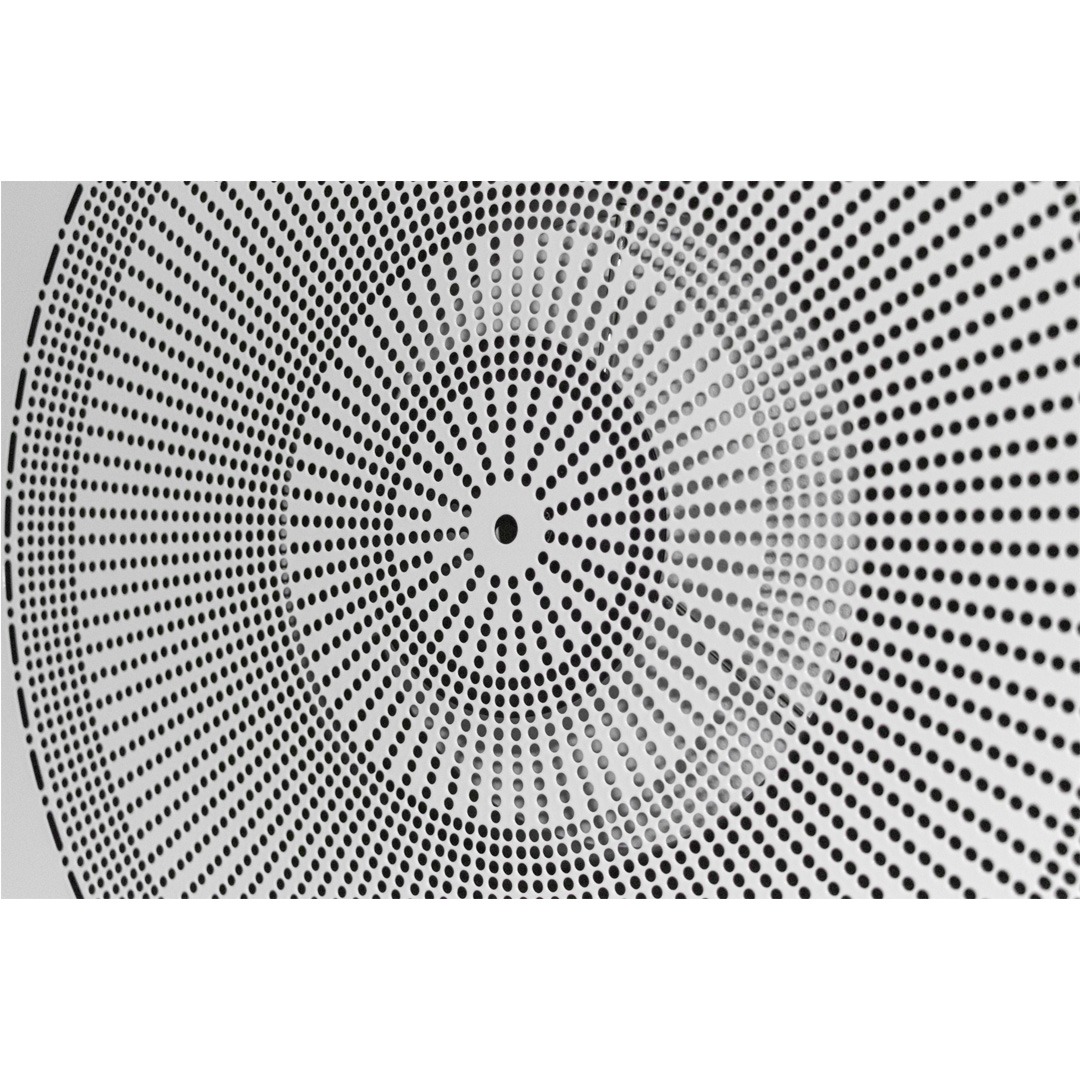

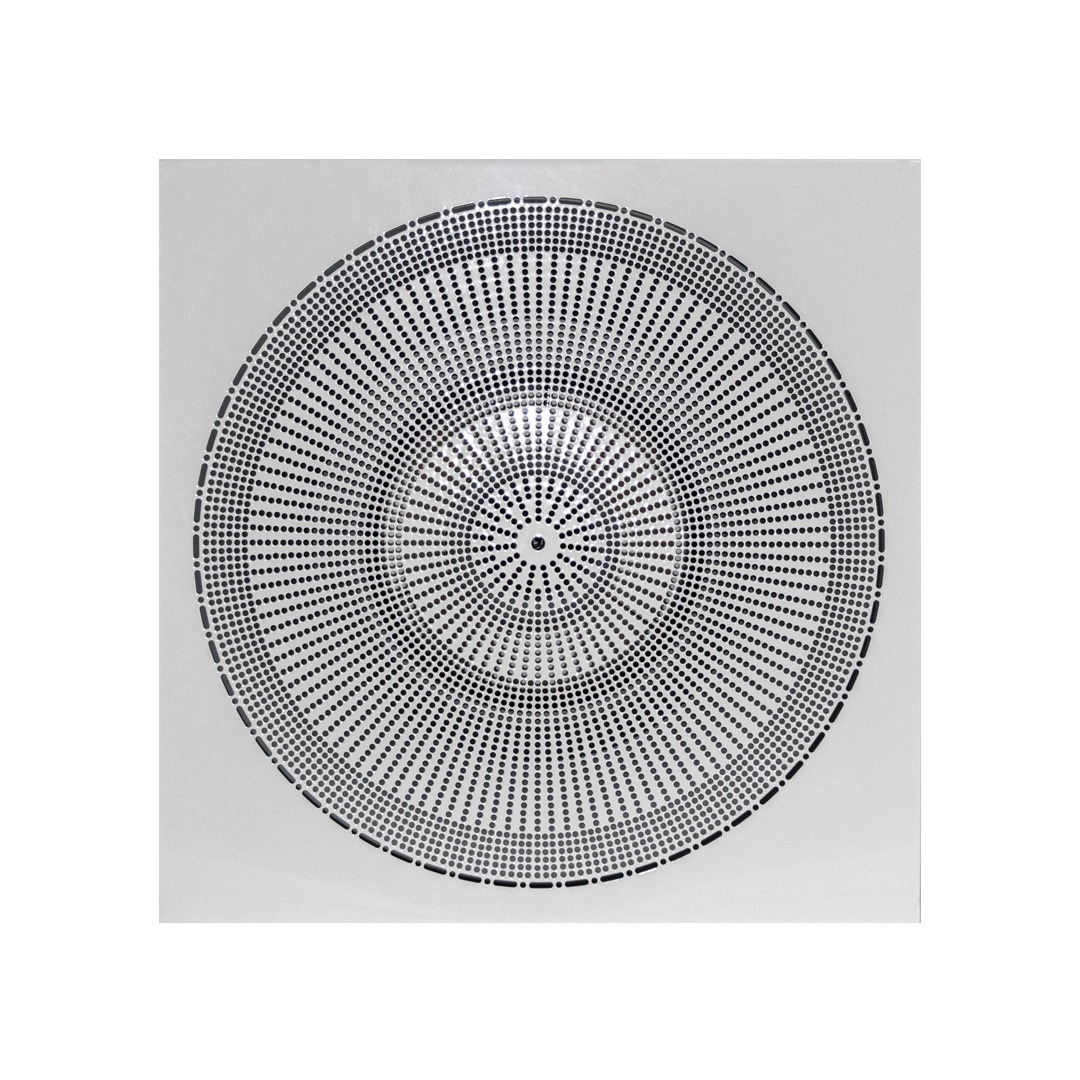

The perforated front plate allows easy and quick cleaning of the diffuser thereby enabling the use also in hygiene-controlled environments.

Technical data

  • the KI series impulse diffusers are made of a perforated steel front panel made of carbon steel, powder coated white RAL 9010 or RAL 900

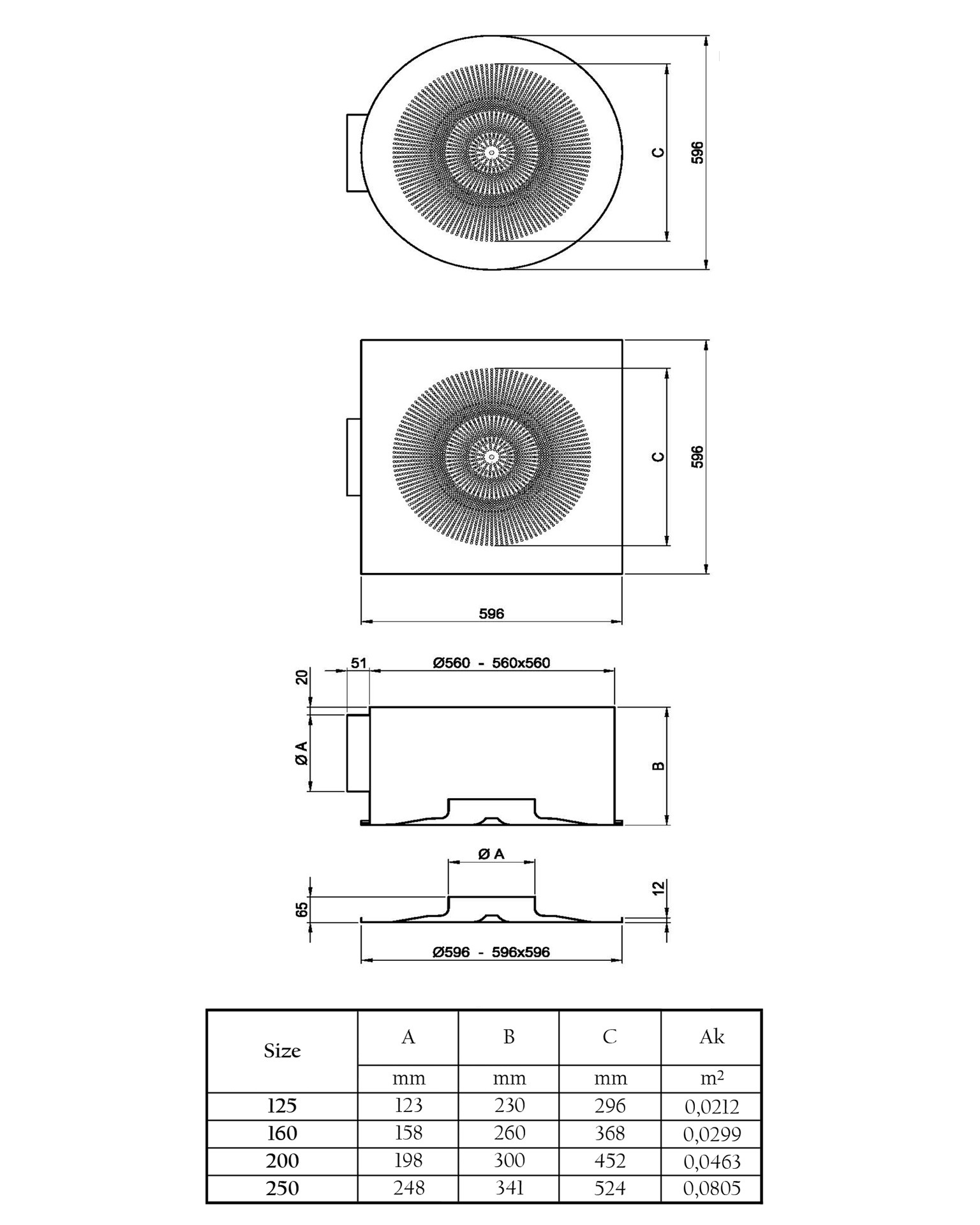

Dimensions

AS-KQ1 Series

Selection

KQI

Technical Catalog
