Swirl diffusers
KPZ – KPRZ

Back to Diffusion

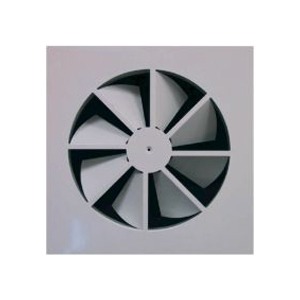

The KPZ - KPRZ Series units are decreased squared diffusers with fixed geometry. These diffusers have a series of radial fixed blades obtained through pressing. They are both apt to supply and extraction when there is no particular need of the throw orientation or strong gradient temperature.

Technical data

  • Available diameters from 125 up to 400 mm
  • RAL 9010 white internally painted steel construction
  • Construction on panel 595x595 available 595x595 (KPZ6) also with flat border (KPZB6)
  • Installation height between 2,7 and 5,1 m
  • Air air-flow from 30 up to 1.000 m3/h
  • Fixing by central screw with white screw cover top
  • Galvanized steel Plenum with or without damper, equalizer and insulation
  • Butterfly damper, collecting damper and fixing collar can be supplied

Dimensions

KPZ Series
KPZ



Accessory: Plenum

KP -KPR



Selection

Air-flow rate
KPZ
