Ceiling diffusers
KGQ

Back to Diffusion

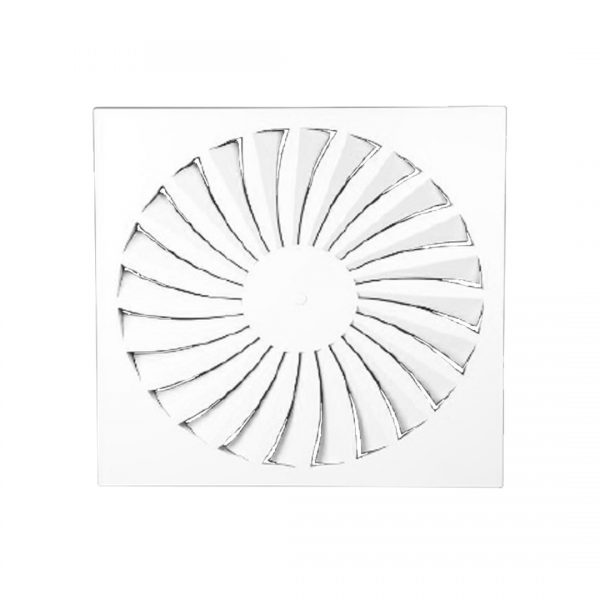

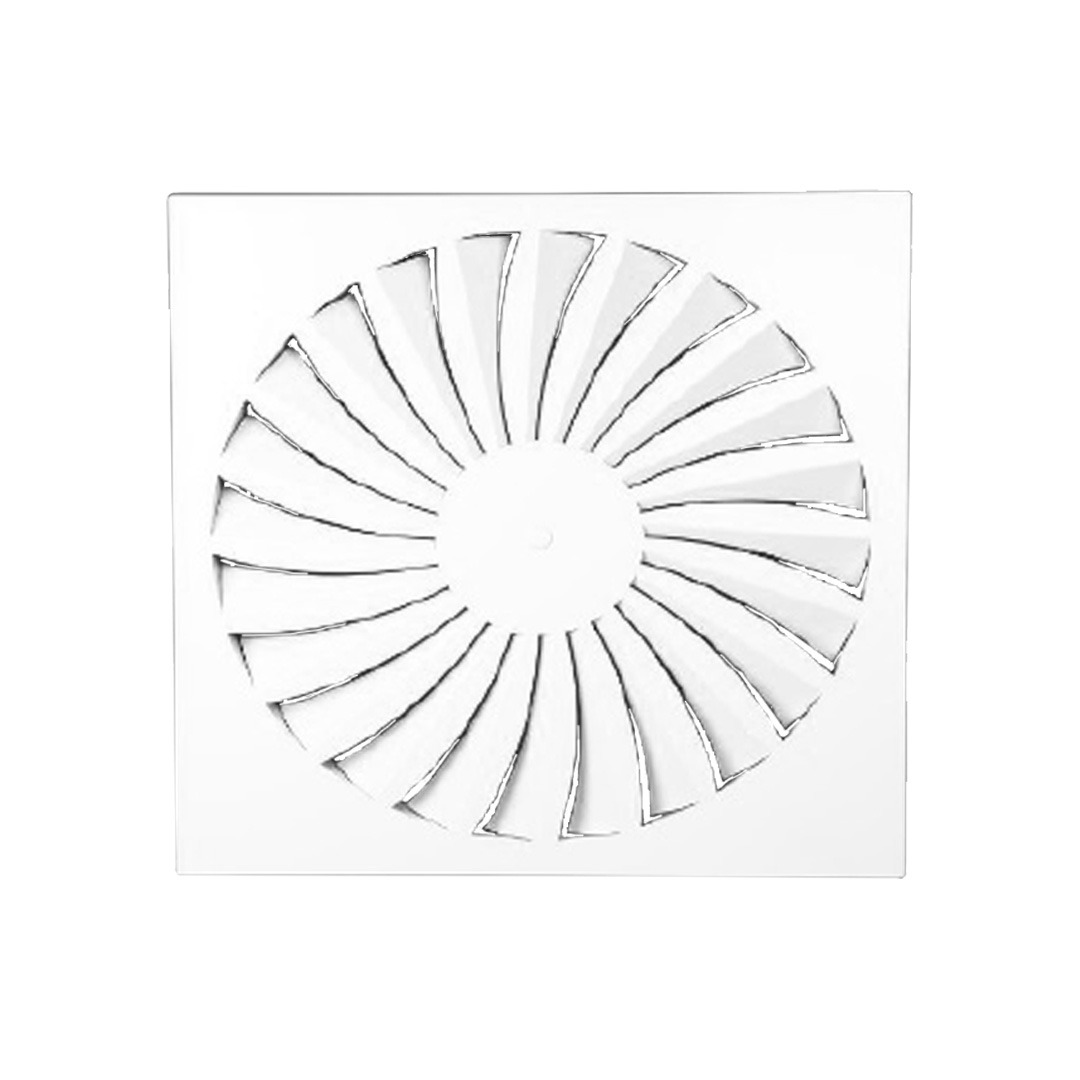

The KGQ series diffuser is a support panel on which a rose patter of fixed deflectors with round design is stamped.
This geometry achieves a circular air flow with a large induction effect.
For this reason, the diffuser is ideal both for heating and cooling even with large temperature differences between the injected air and the air in the room.
This particular diffuser series is normally used in spaces with ceilings heights between 2,6 and 4 metres.

Technical data

  • The diffuser is made of carbon steel sheet, paint Finish : white colour RAL 9010 or RAL 9003

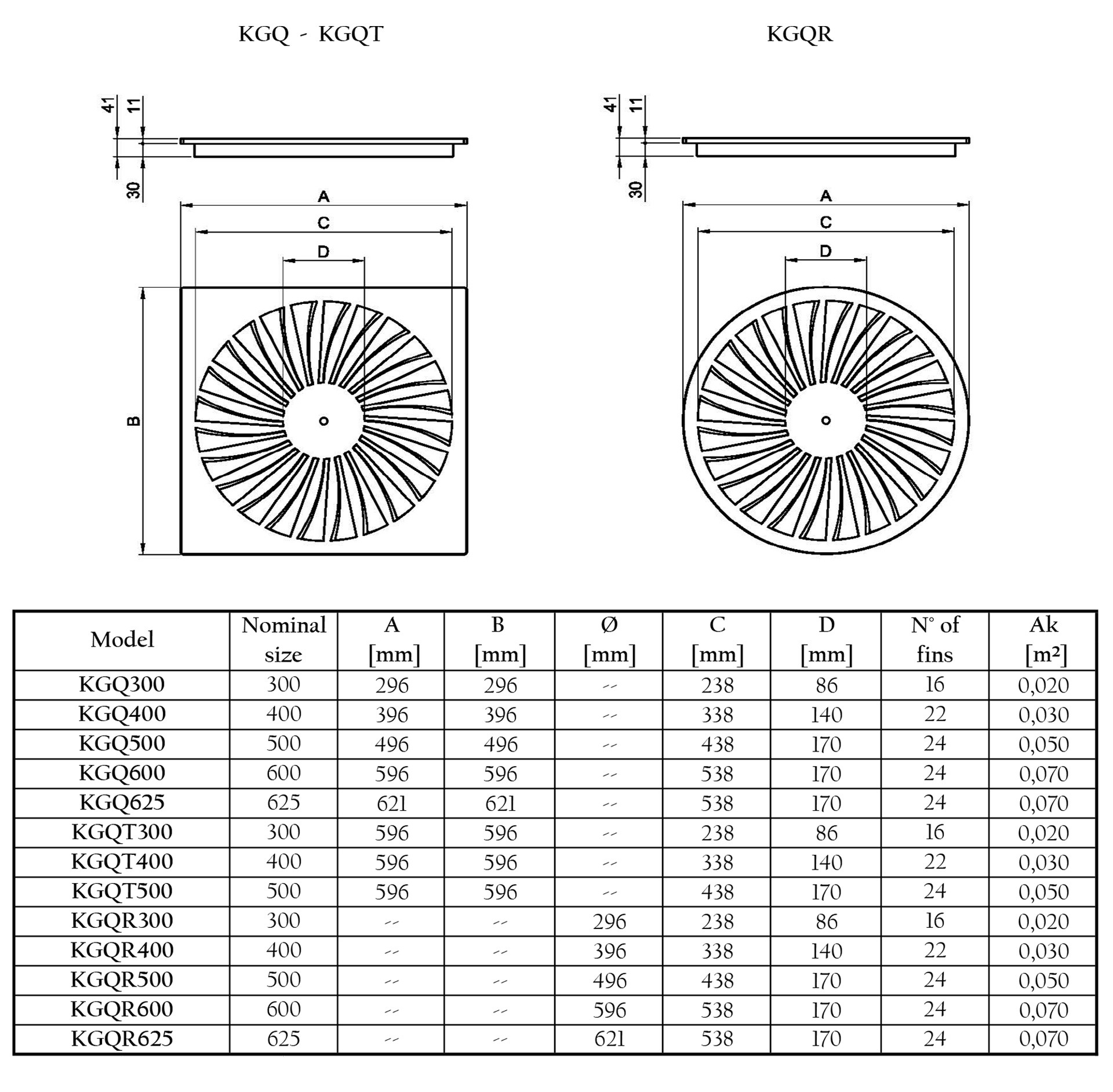

Dimensions

KGQ Series

KGQ

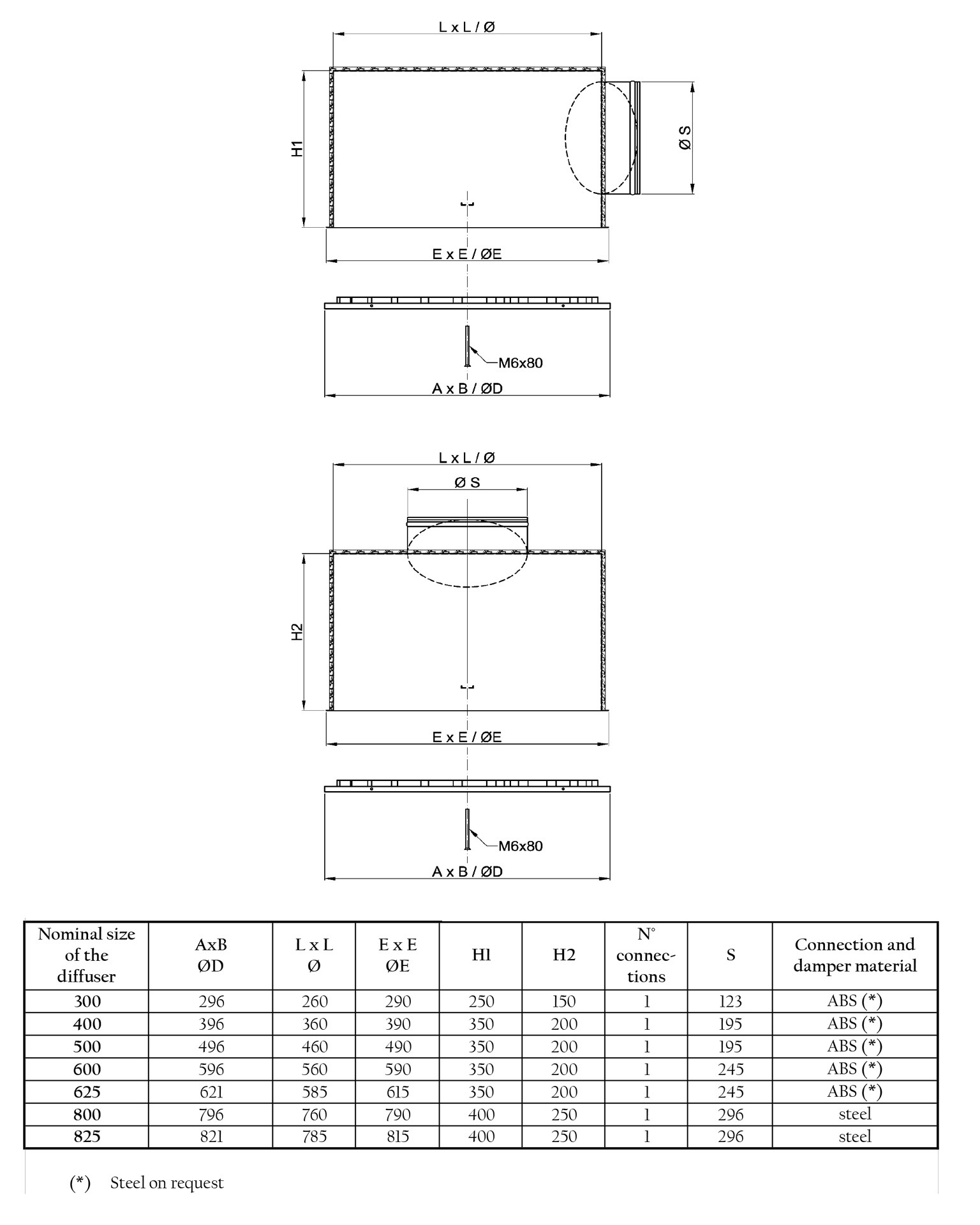

Accessory: Plenum

Selection

Air flow rate

Technical Catalog

KGQ
