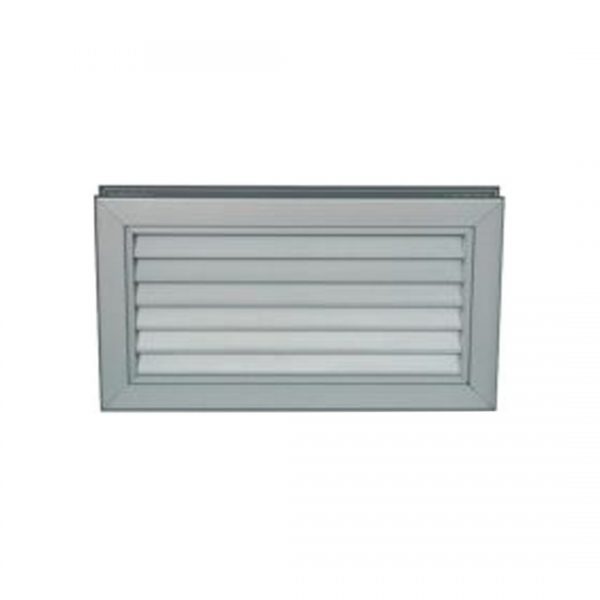

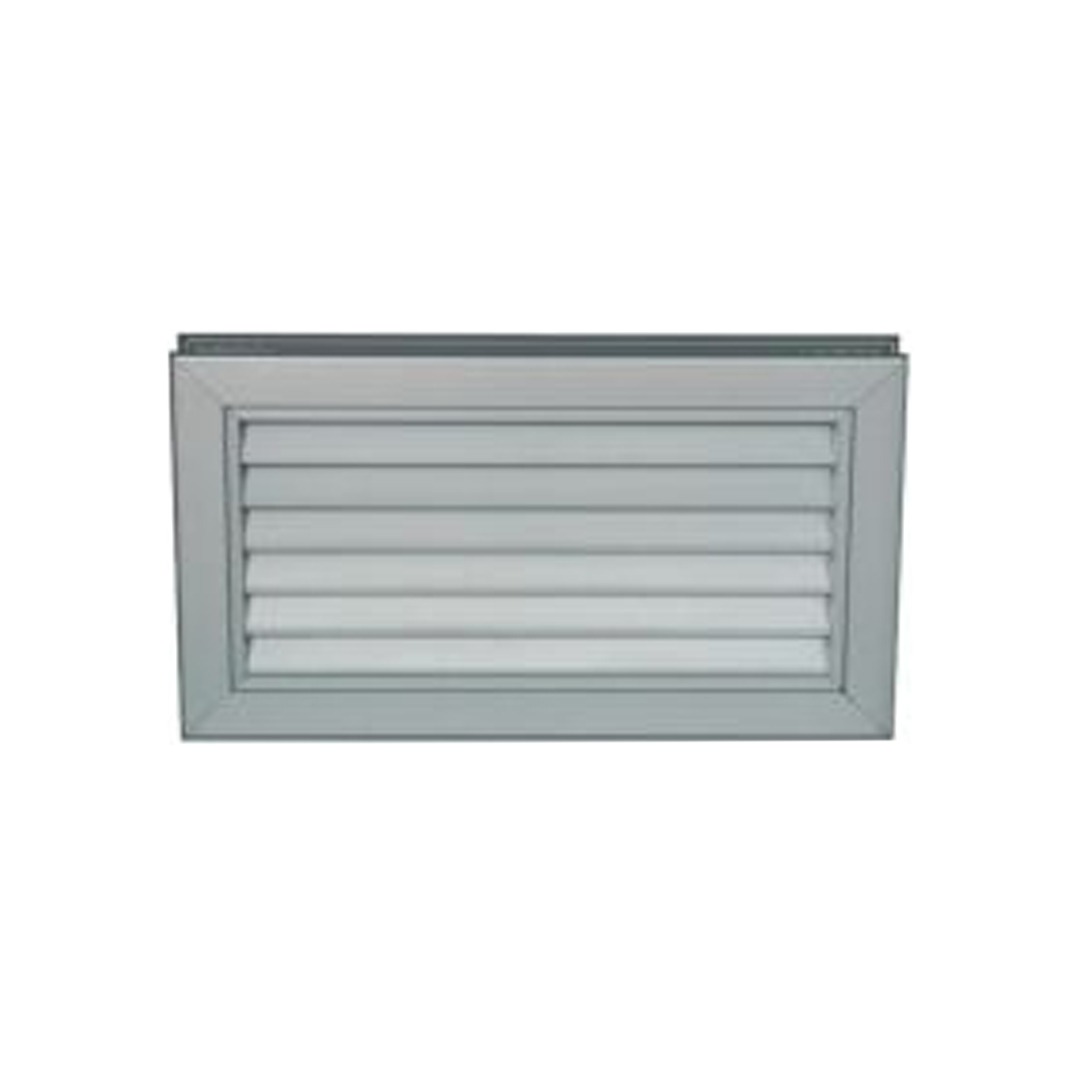

Transfer grilles
UT

Back to Diffusion

The UT Series units are transfer grilles apt to doors or walls applications. They are used for allowing the air-transit between near rooms.

Technical data

  • Standard dimensions from 200x100 up to 800x400 mm
  • Practicable special dimensions on demand
  • Wholly silver anodized aluminium construction
  • RAL 9010 painted aluminium construction on demand
  • Fixed blades with anti-lux profile horizontally arranged
  • Silver anodized aluminium standard counterframe
  • Door panel thickness from 30 up to 47 mm
  • For thickness superior to 47 mm use 2 UT1 grids and double the pressure drop
  • Fixing by screws

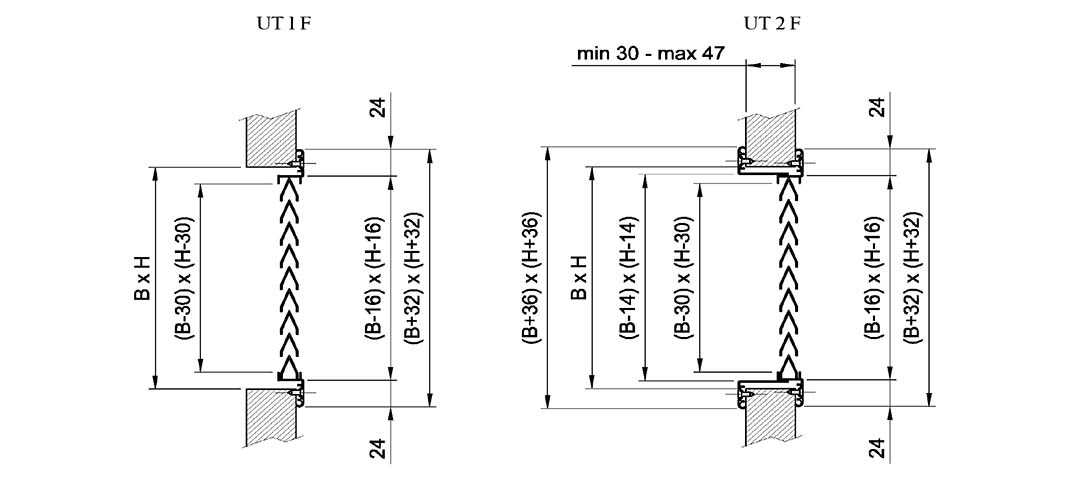

Dimensions

UT Series
UT



Selection

Air flow rate
UT

Technical Catalog
