UQ

Back to Diffusion

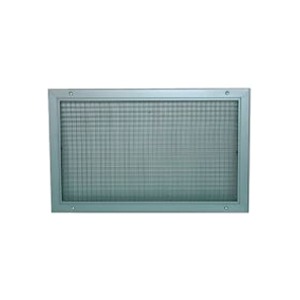

The UQ Series units are 13 mm pitch extract grille with a squared mesh. They are generally used in wall aspiration.

Technical data

  • Standard dimensions from 200x100 up to 1.000x400 mm
  • Practicale special dimensions on demand
  • Silver anodized aluminium frame construction
  • 13 mm pitch alluminium grille with squared mesh
  • Galvanized steel volume control damper with contrasting motion blades
  • Modular galvanized steel counterframe with wall iron beams
  • Galvanized steel Plenum with or without insulation
  • Triple use fixing clips for damper, counterframe and plenum
  • Wall fixing by clips on counterframe or by screws on duct or on plenum

Dimensions

UQ Series

Selection

Air-flow rate
