Floor diffusers

Back to Diffusion

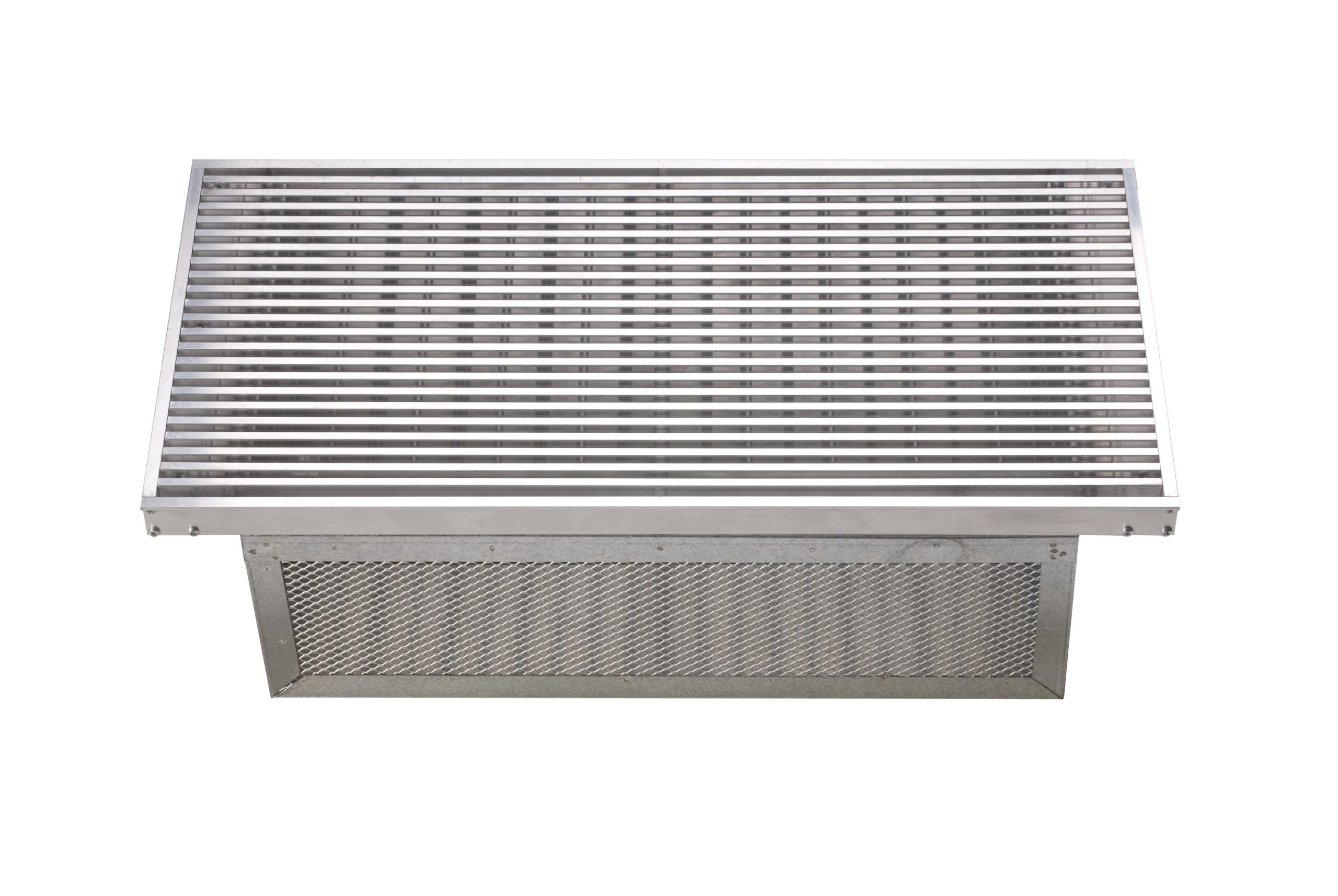

The UP series consists of a range of pedestrian floor grilles suitable for both air supply and return. The mechanical strength is the maximum achievable in aluminium and is certified according to EN 13264 in the 'light' class. On a 630x630mm grille, it can withstand a concentrated load in the centre up to 450 kg without risk of breakage and up to 150 kg without damage. This strength makes the UP series pedestrian grilles the safest solution for environments where trolleys are used, such as restaurants, offices, places like sports centres and other similar public places.

Technical data

Standard dimensions from 300x100 to 1200x600 mm

  • Support structure and fins made of anodised aluminium
  • Version for vertical throw (UP0) or 15° inclined throw (UP1)
  • Galvanised steel contrast damper can be supplied separately (SCUP)
  • Separate galvanised steel dust basket (UPR) available for base equal to or greater than 300 mm
