Floor diffusers
TE-KP

Back to Diffusion

The KS Series units are under-chair diffusers suitable for the application in cinemas, theatres and auditoriums. As these Series of diffusers are especially studied to satisfy and to obtain the best performance, the specifics for these applications are very restrictive.

Technical data

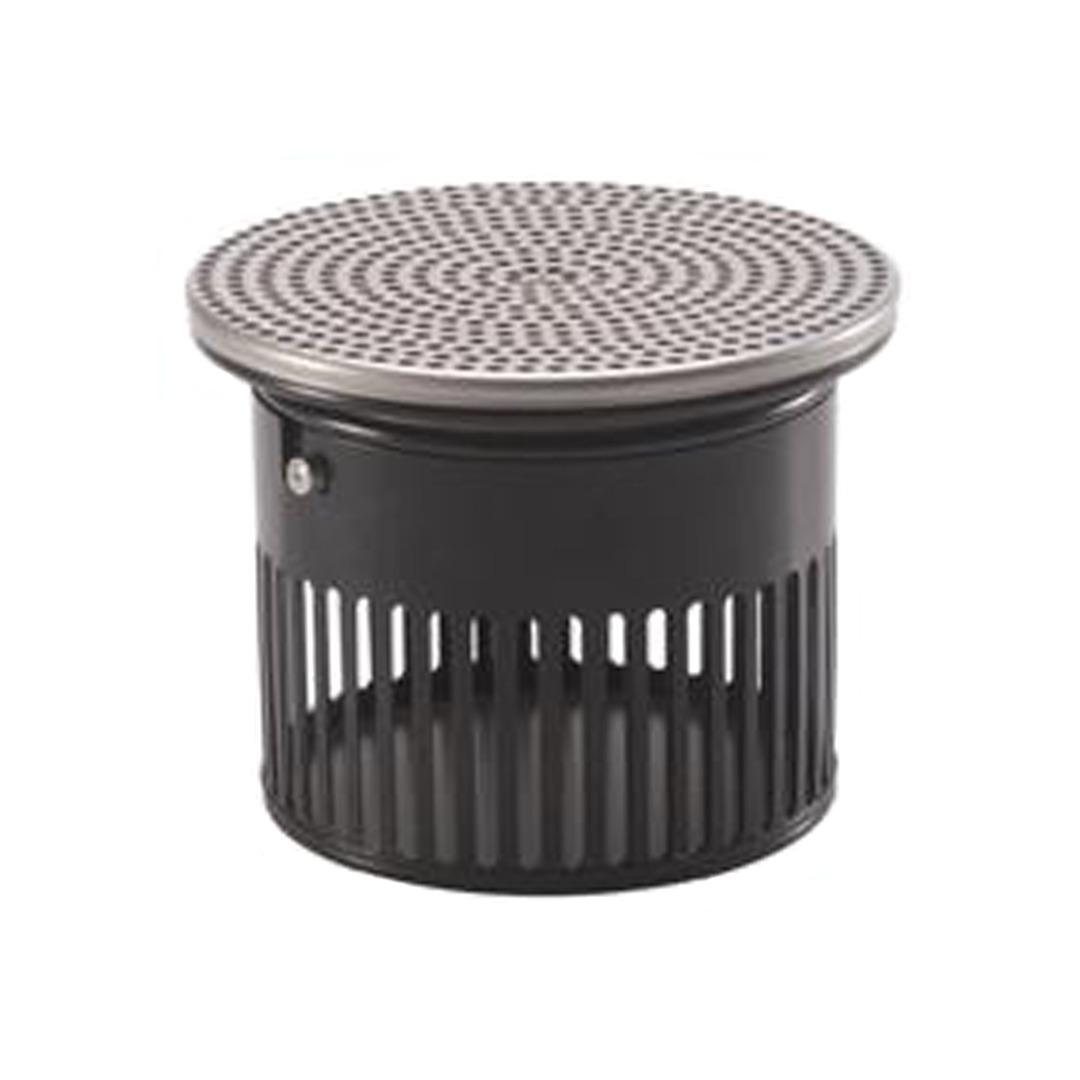

The TE-KP series diffusers are formed by:

  • Grilled plate
  • Diffuser with fan blades
  • Regulation shutter (optional, ordered with dust collecting bin)
  • Supporting ring for installation on raised floors
  • Supporting ring for concrete floors (alternative)
  • Plenum in steel (optional, used for installation in raised floors, not sealed)

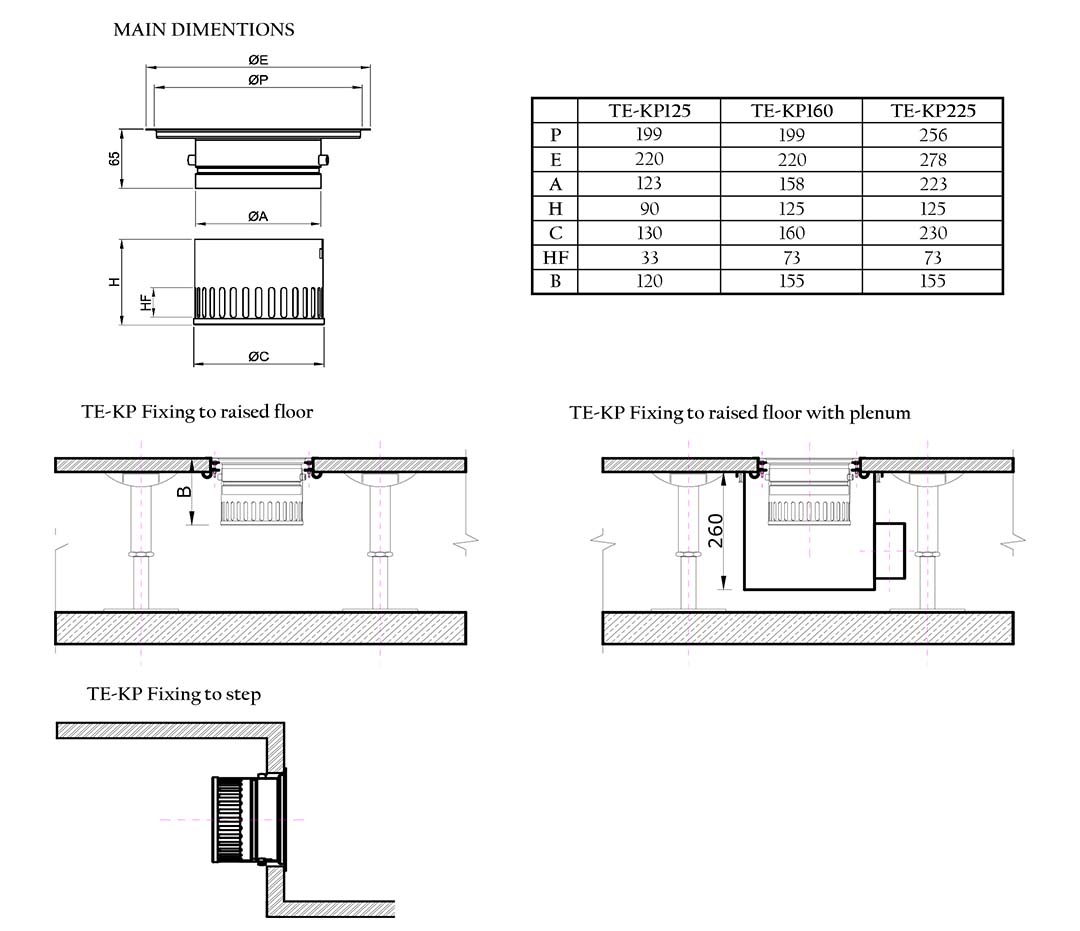

Dimensions

TE-KP Series
TE-KP



Technical Catalog
