Jet diffusers
KV-CT

Back to Diffusion

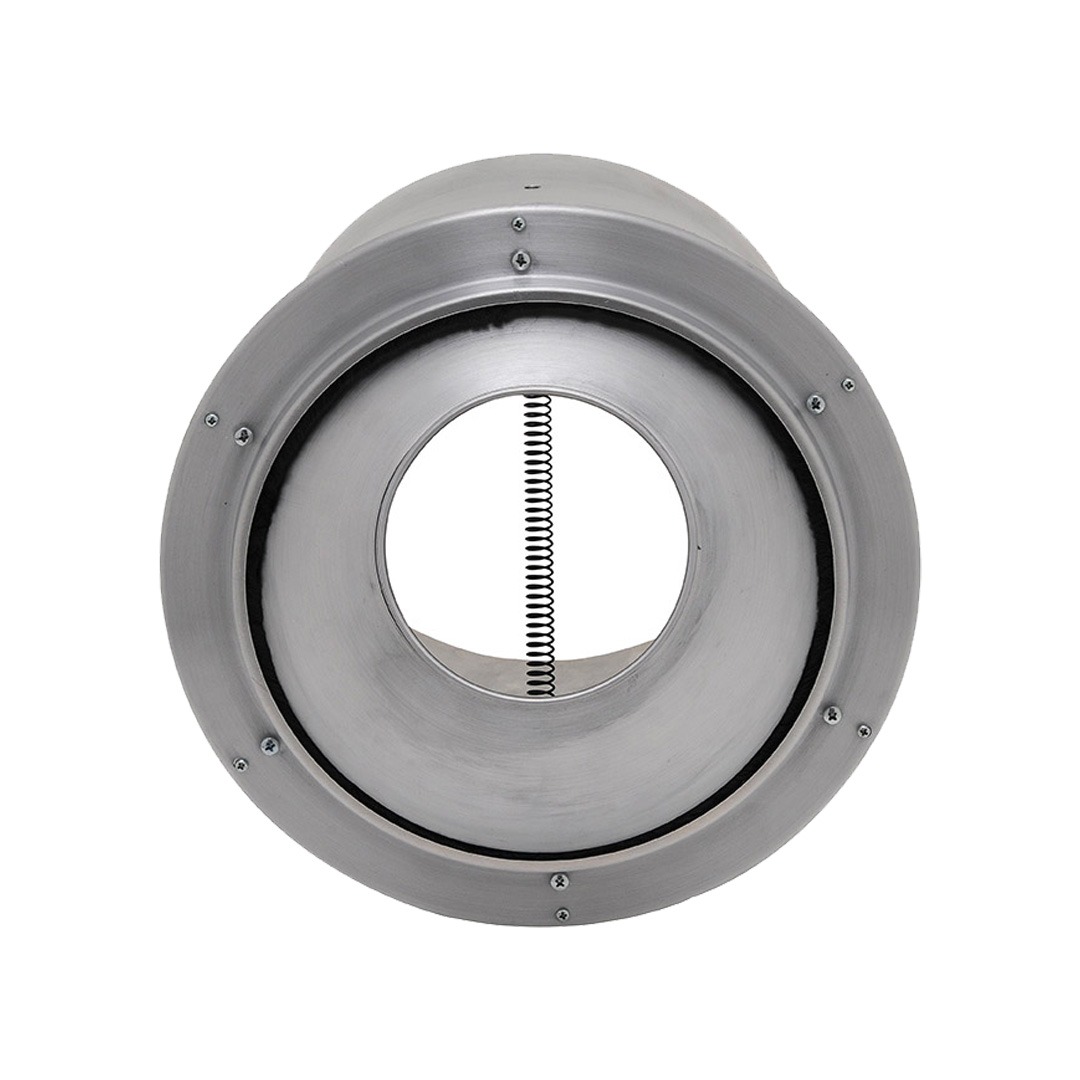

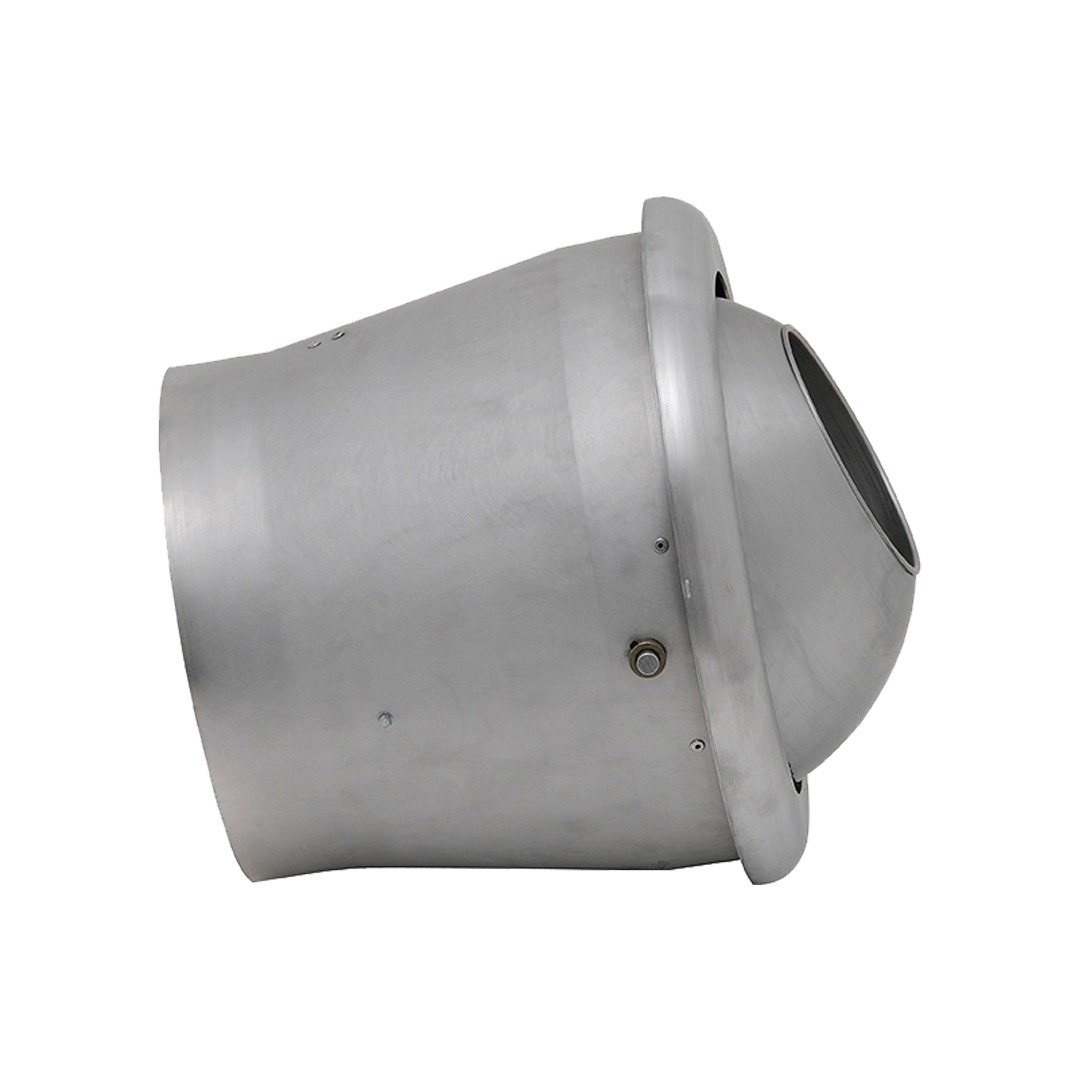

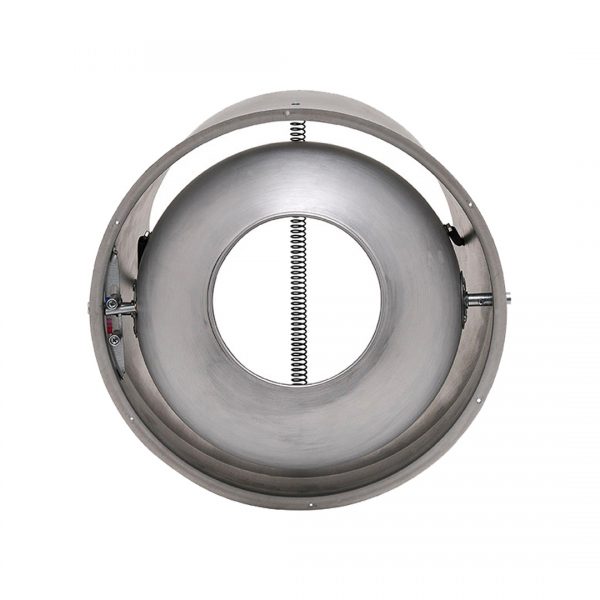

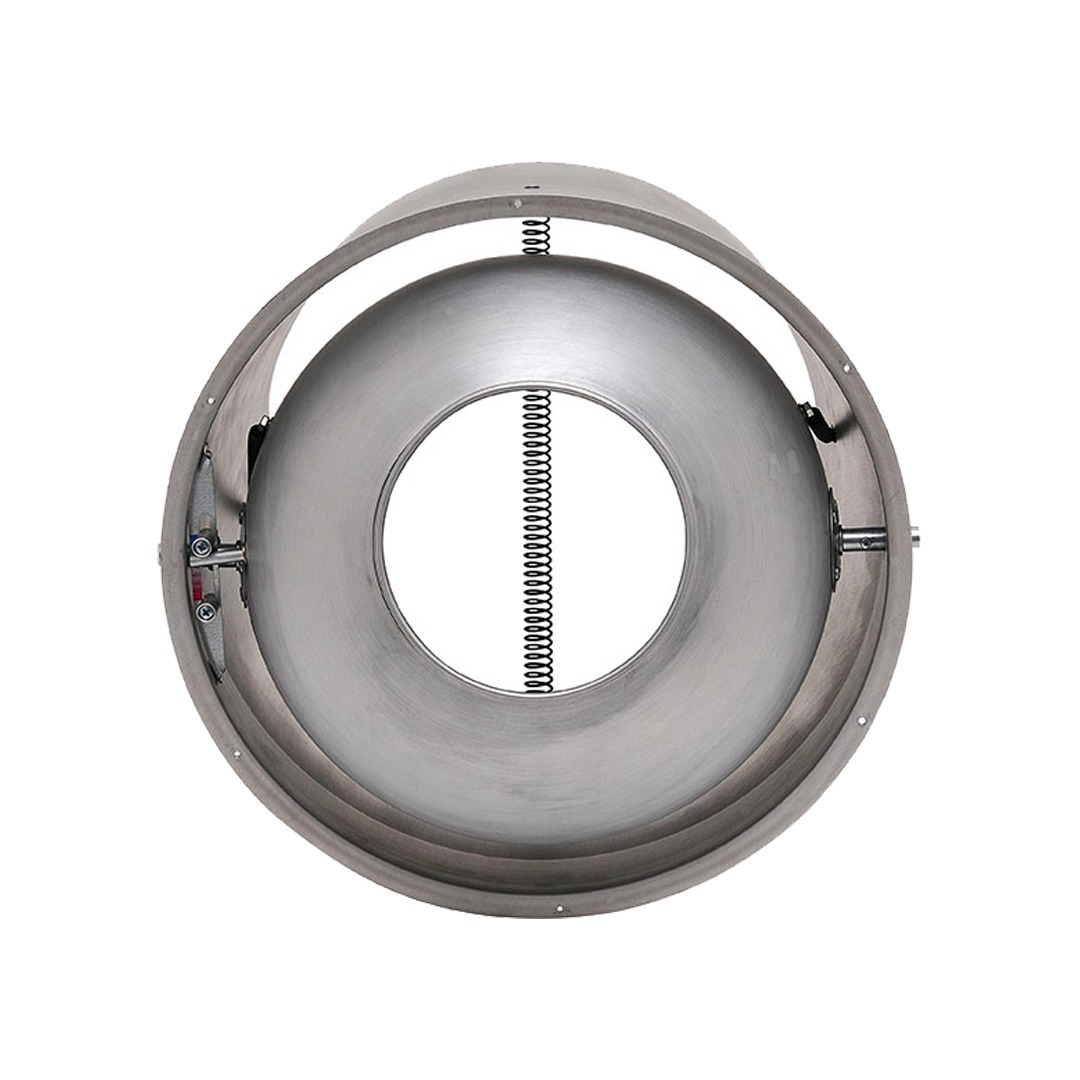

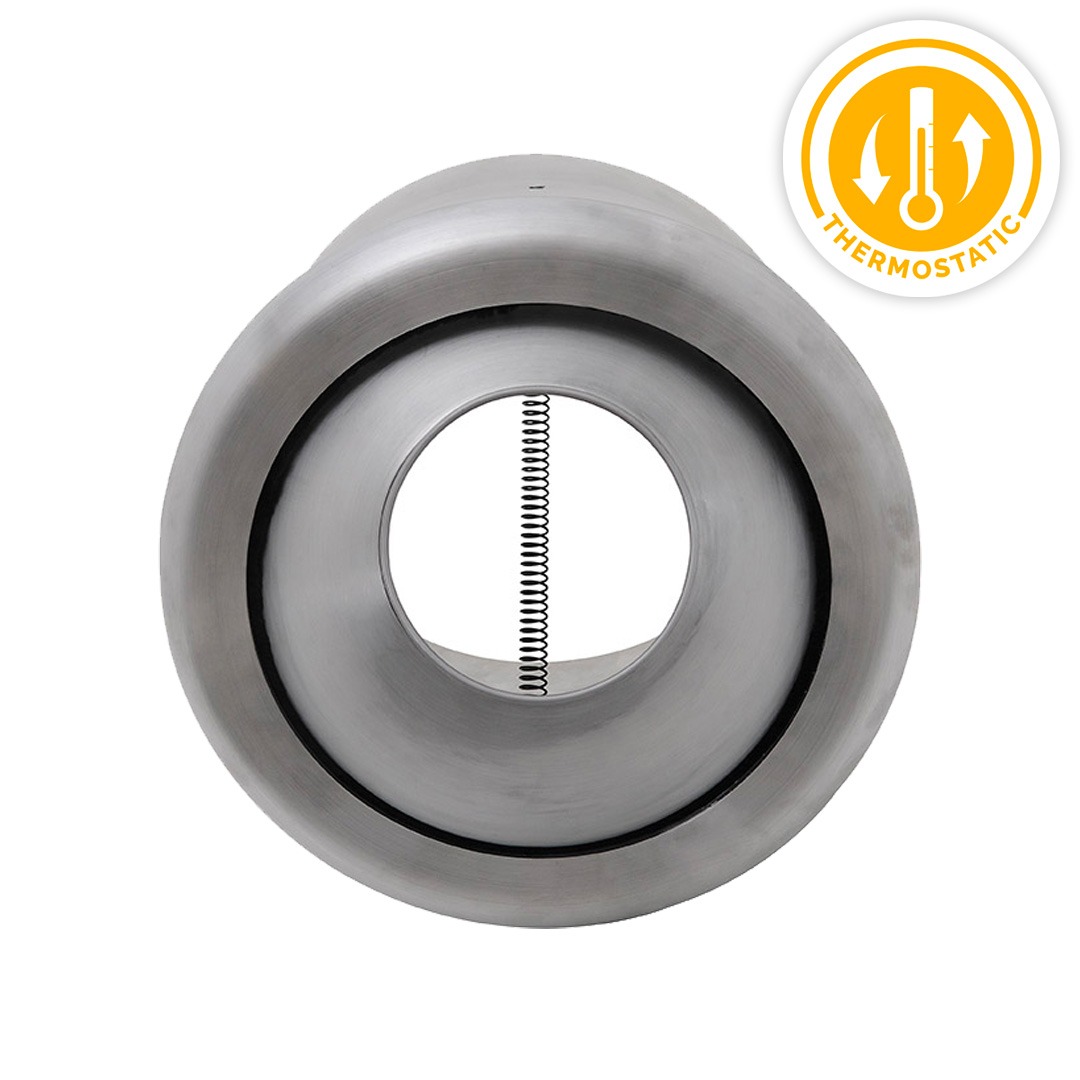

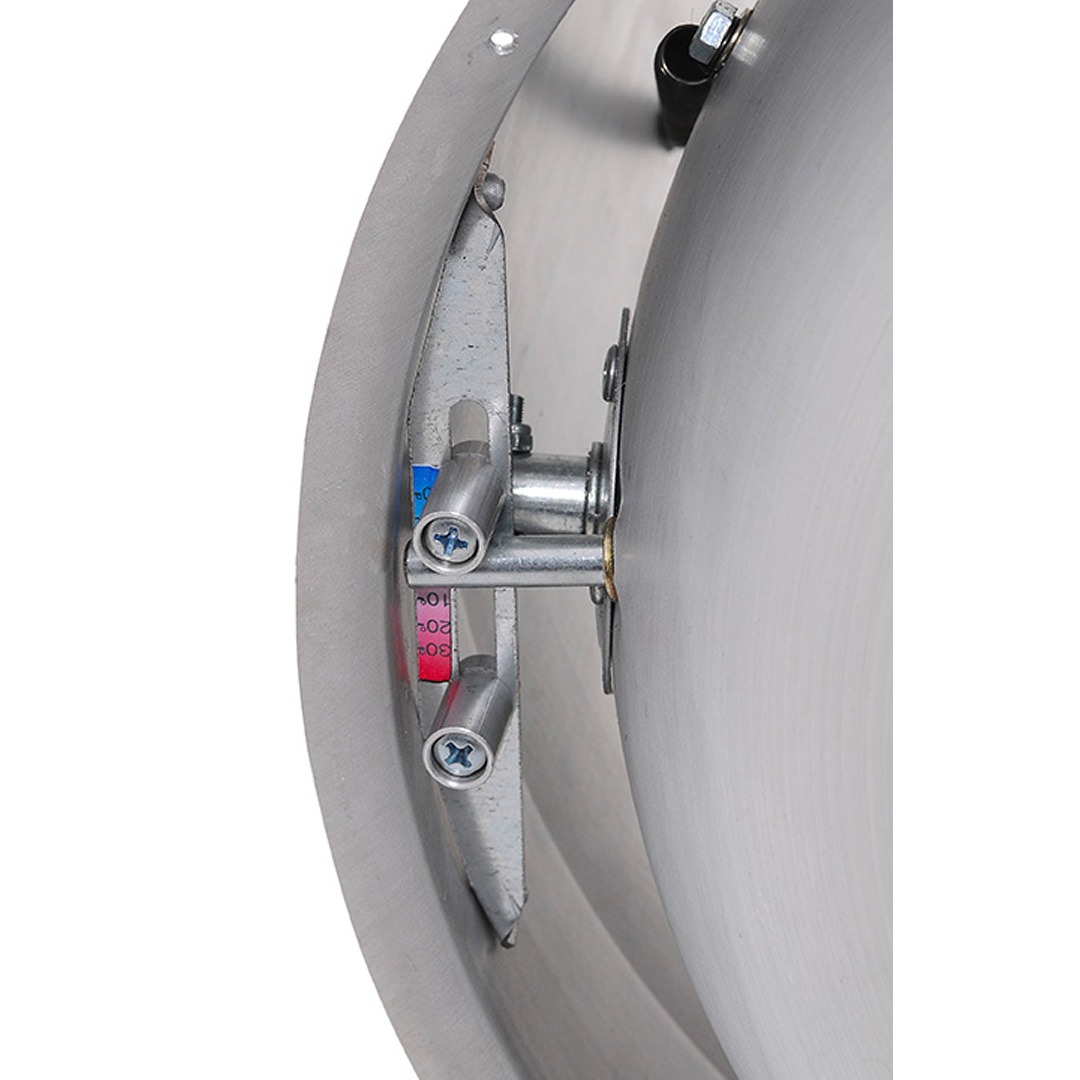

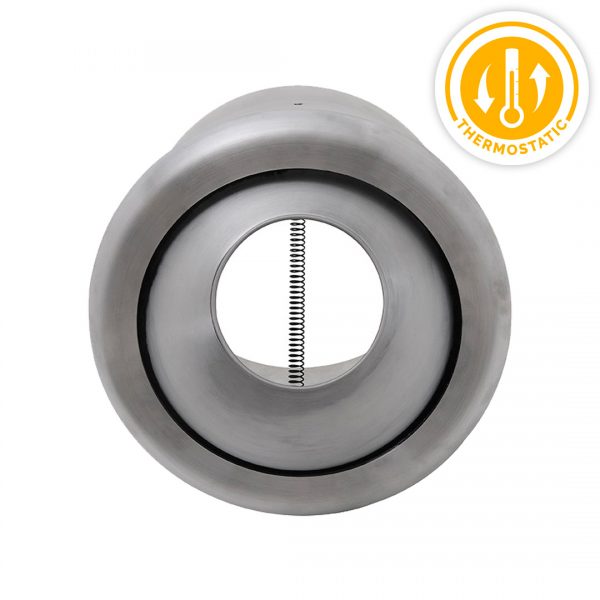

The series of long-range diffusers KVCT series derives from the series KV and provides for the adjustment of the inclination of the jet by spring force thermostated with shape memory. The inclination of the jet occurs on the basis of the temperature of air injected. This allows the continuous maintenance of optimal conditions of launch without any electrical supply.

Technical data

  • Automatic adjustment of the inclination of -30 ° to +30 °;
  • Available diameters from 80 to 230mm;
  • Made of natural aluminum;
  • Version natural aluminum or painted RAL9010
  • Performance identical to the model of the same diameter KV

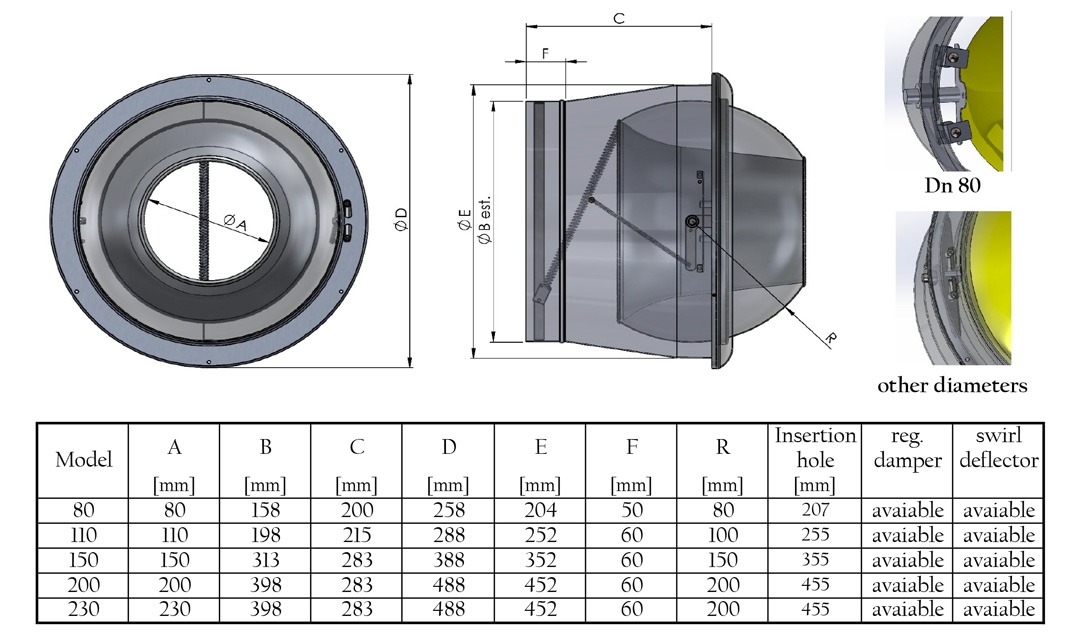

Dimensions

KVCT Series
KVCT



Selection

Air flow rate
KVCT

Technical Catalog
