Jet diffusers
KVC

Back to Diffusion

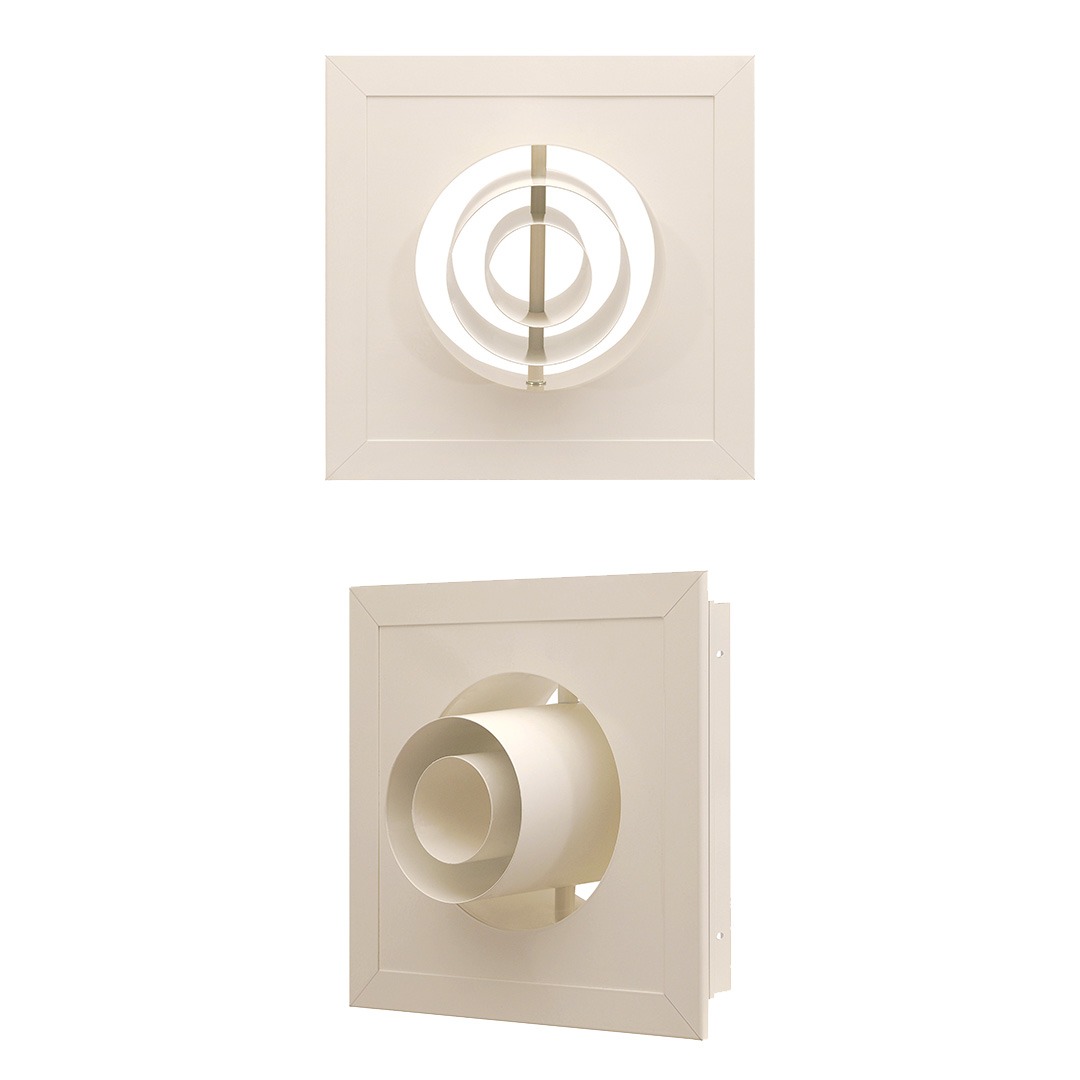

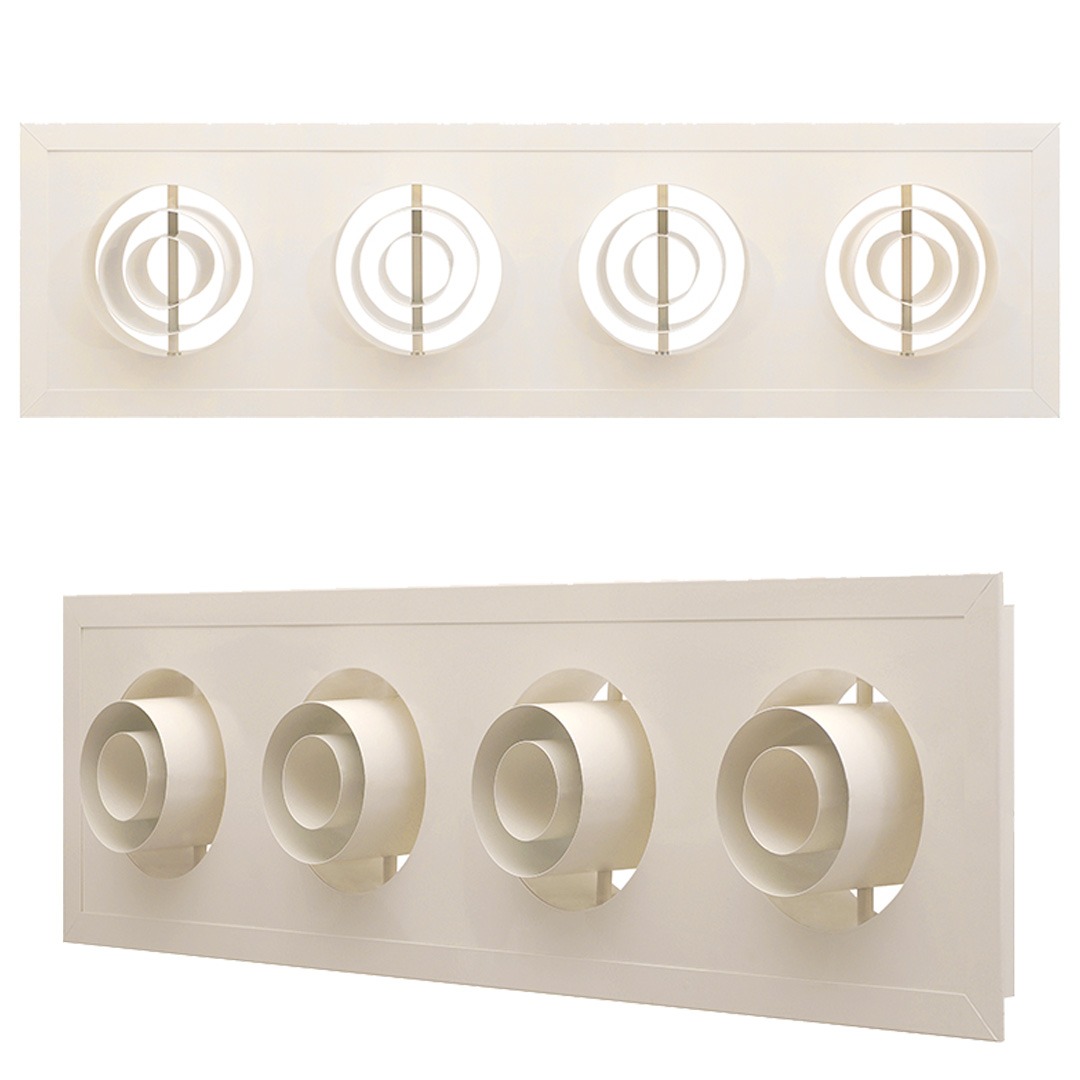

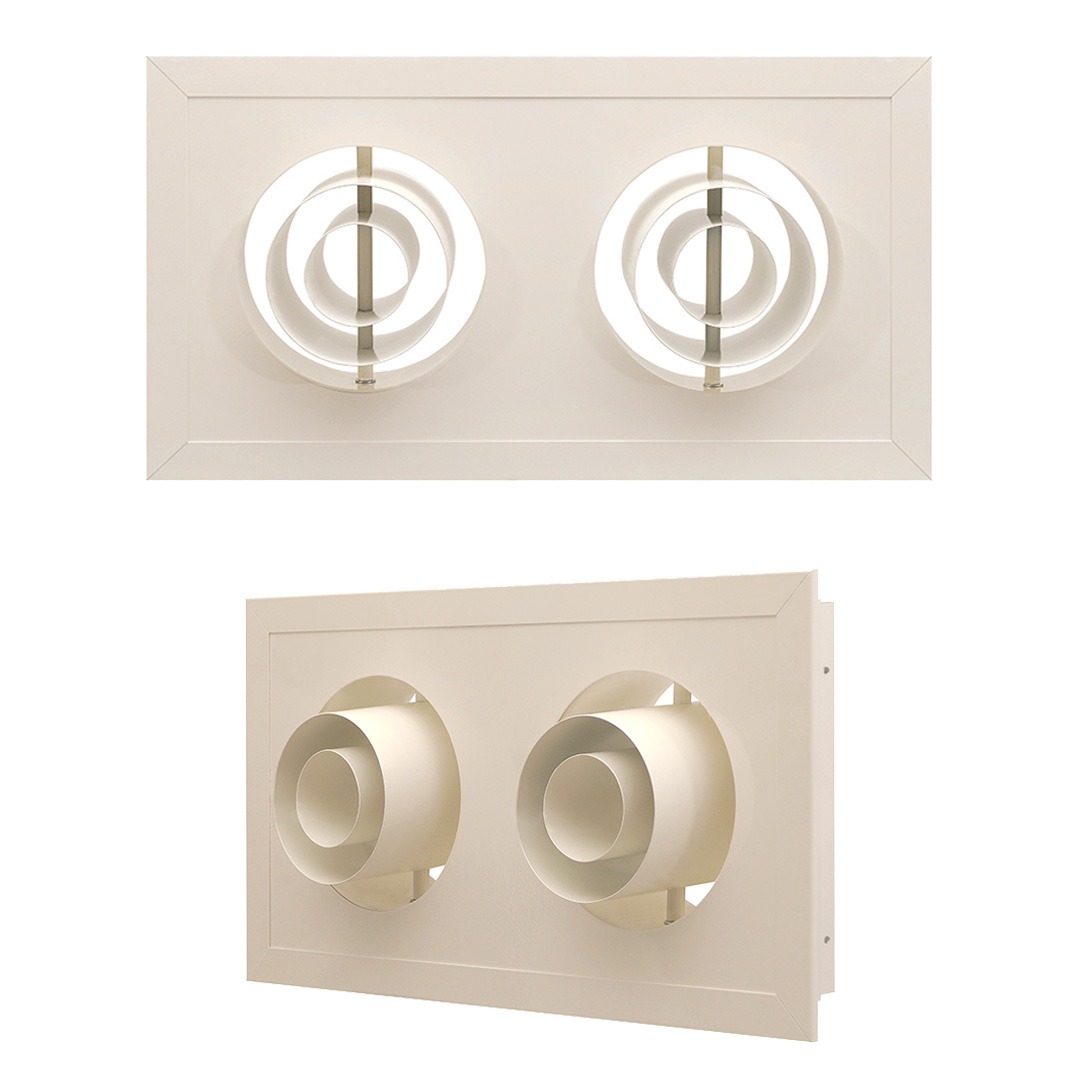

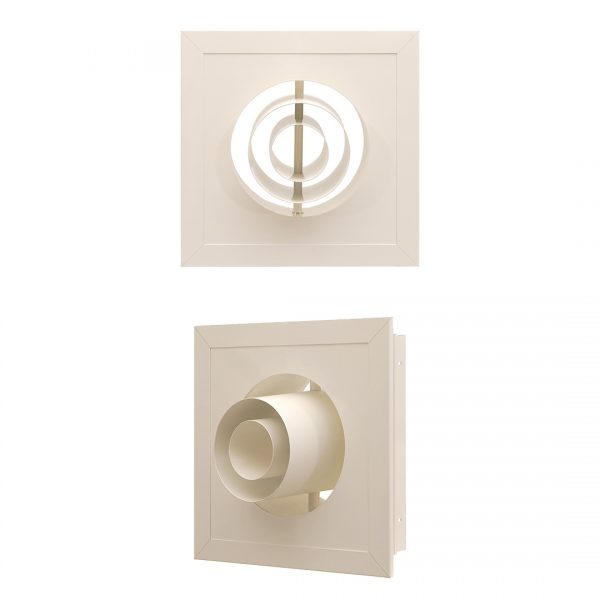

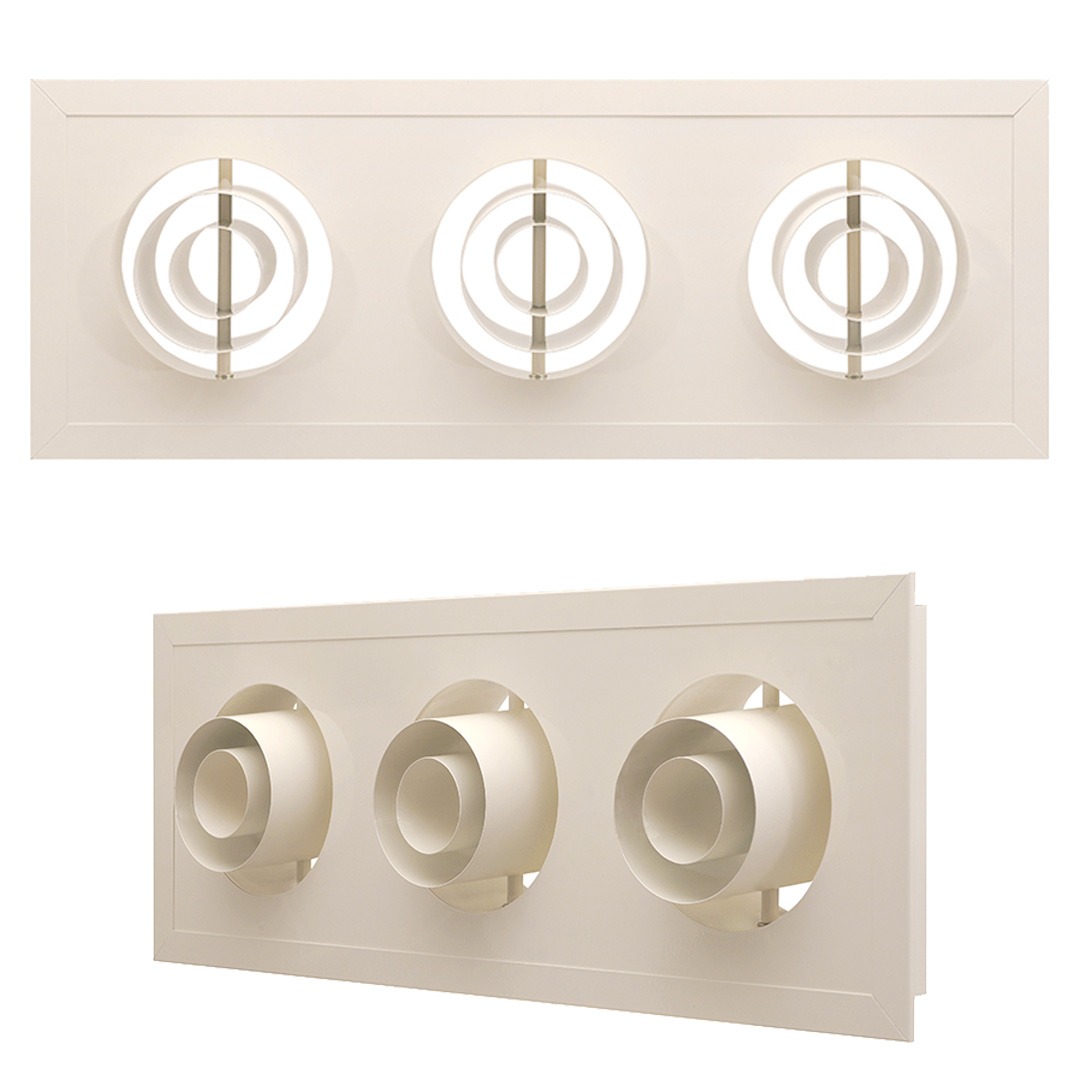

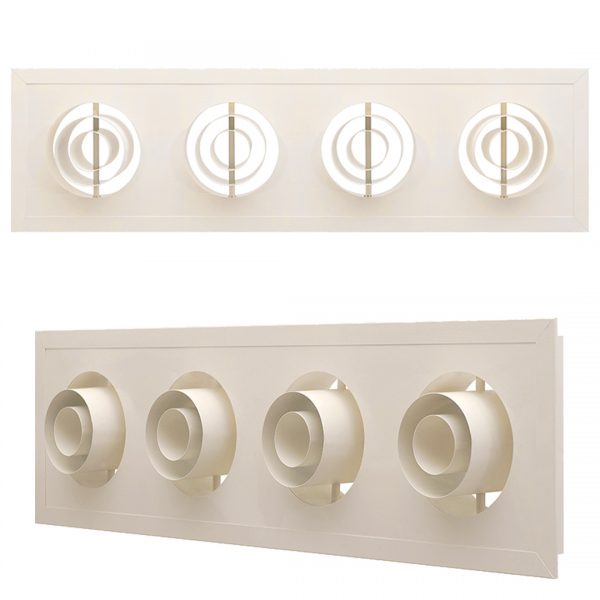

The Long throw diffusers concentric series KVC are constituted by one or more nozzles, up to a maximum of four, mounted on a special plate and adjustable individually in each direction until inclination of 30°.

Technical data

  • Plates 1 to 4 diffusers
  • diffusers diameter from 200mm to 355mm
  • diffusers individually in each direction with inclination up to 30 °
  • installation height between 5 and 10 m
  • Wall mounted or side of rectangular channel
  • Construction in stainless
  • white paint finish RAL 9010

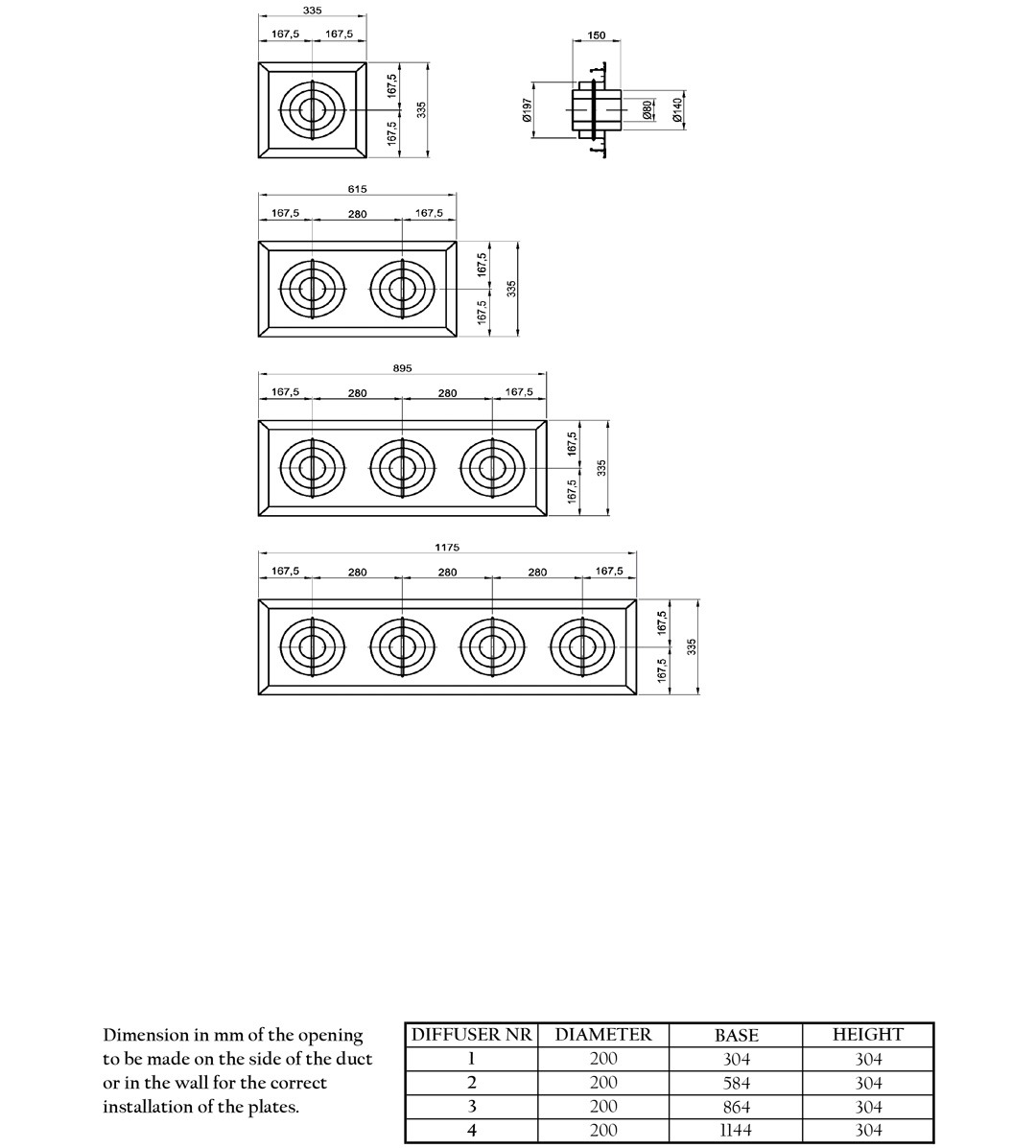

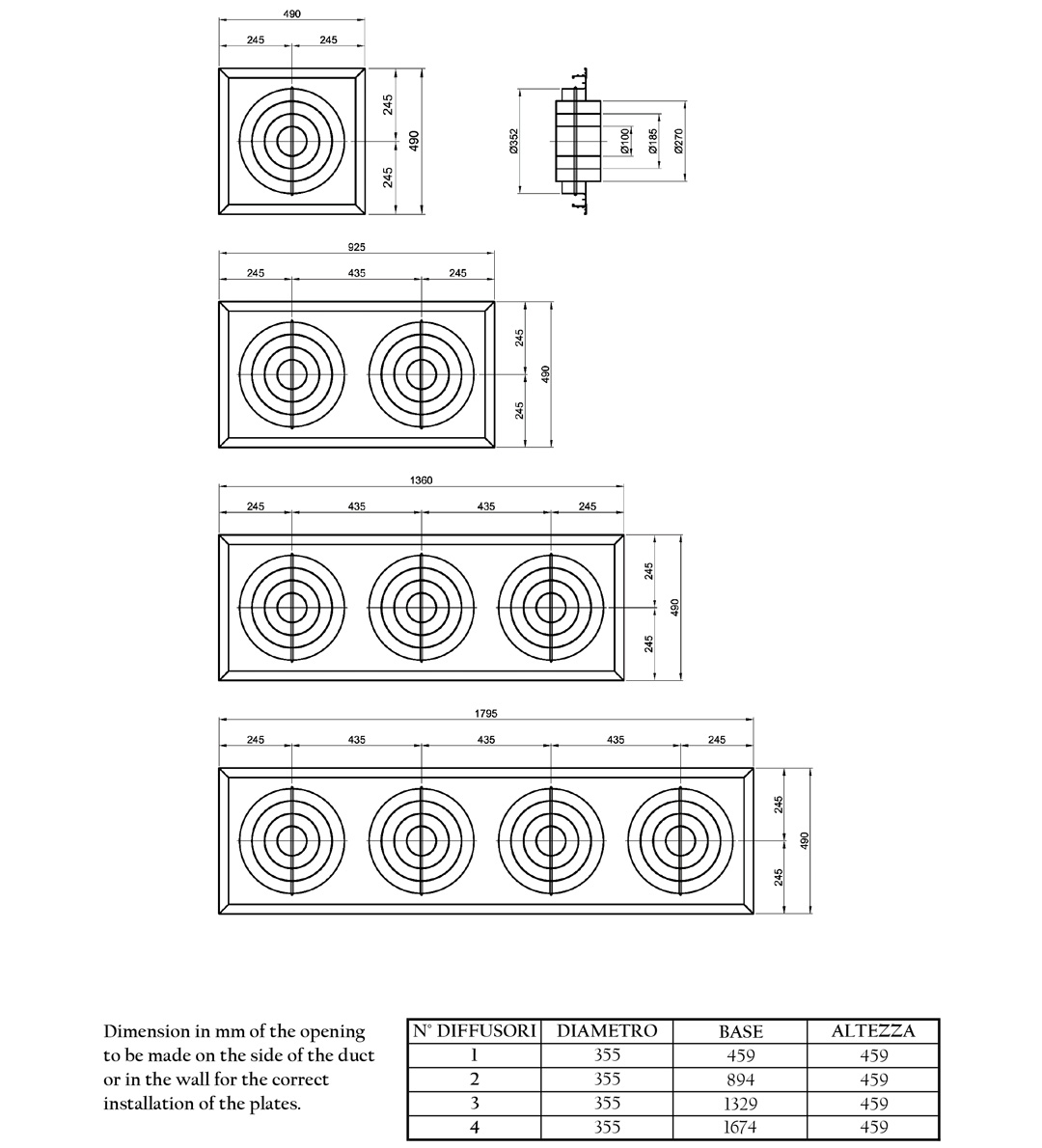

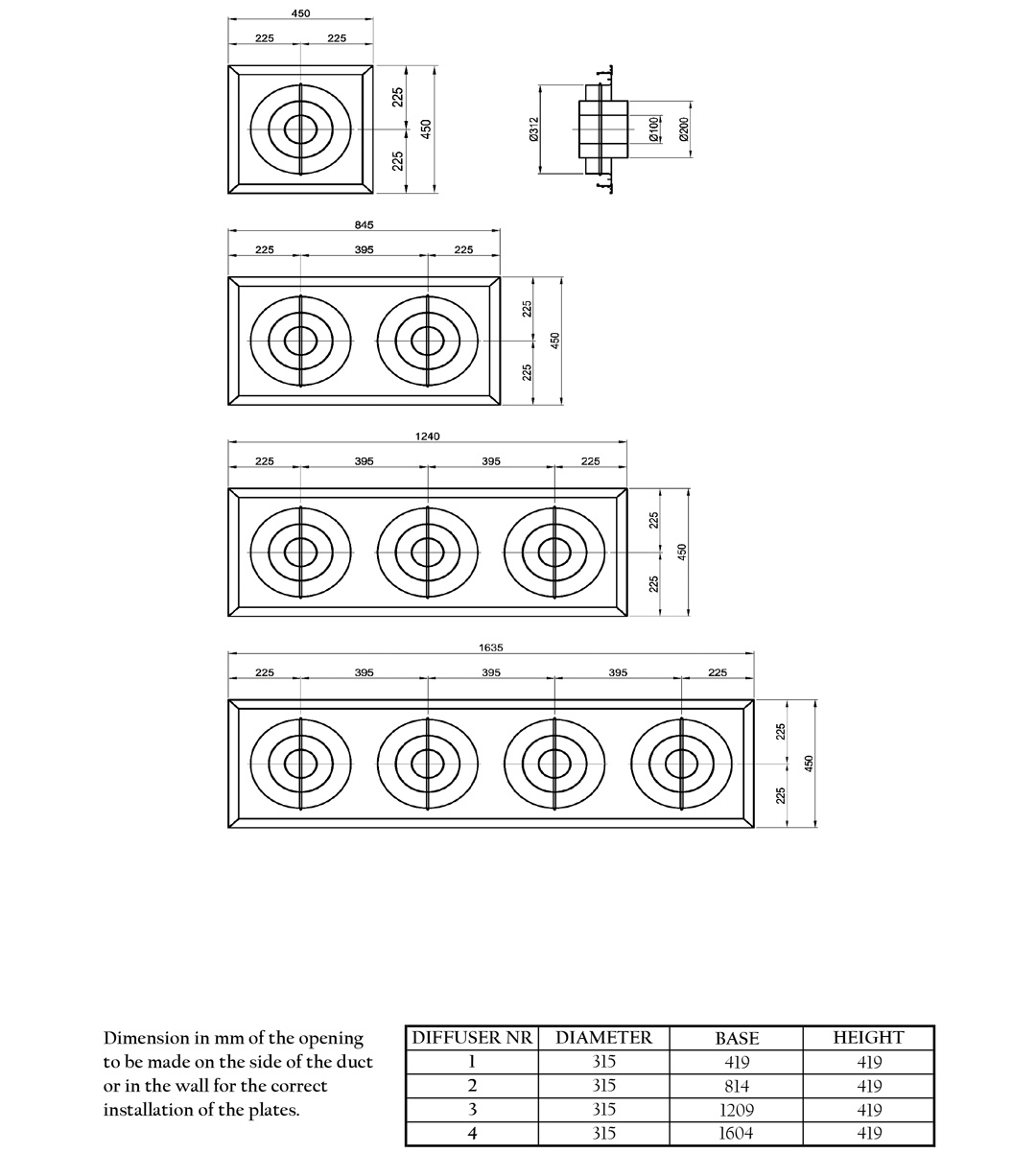

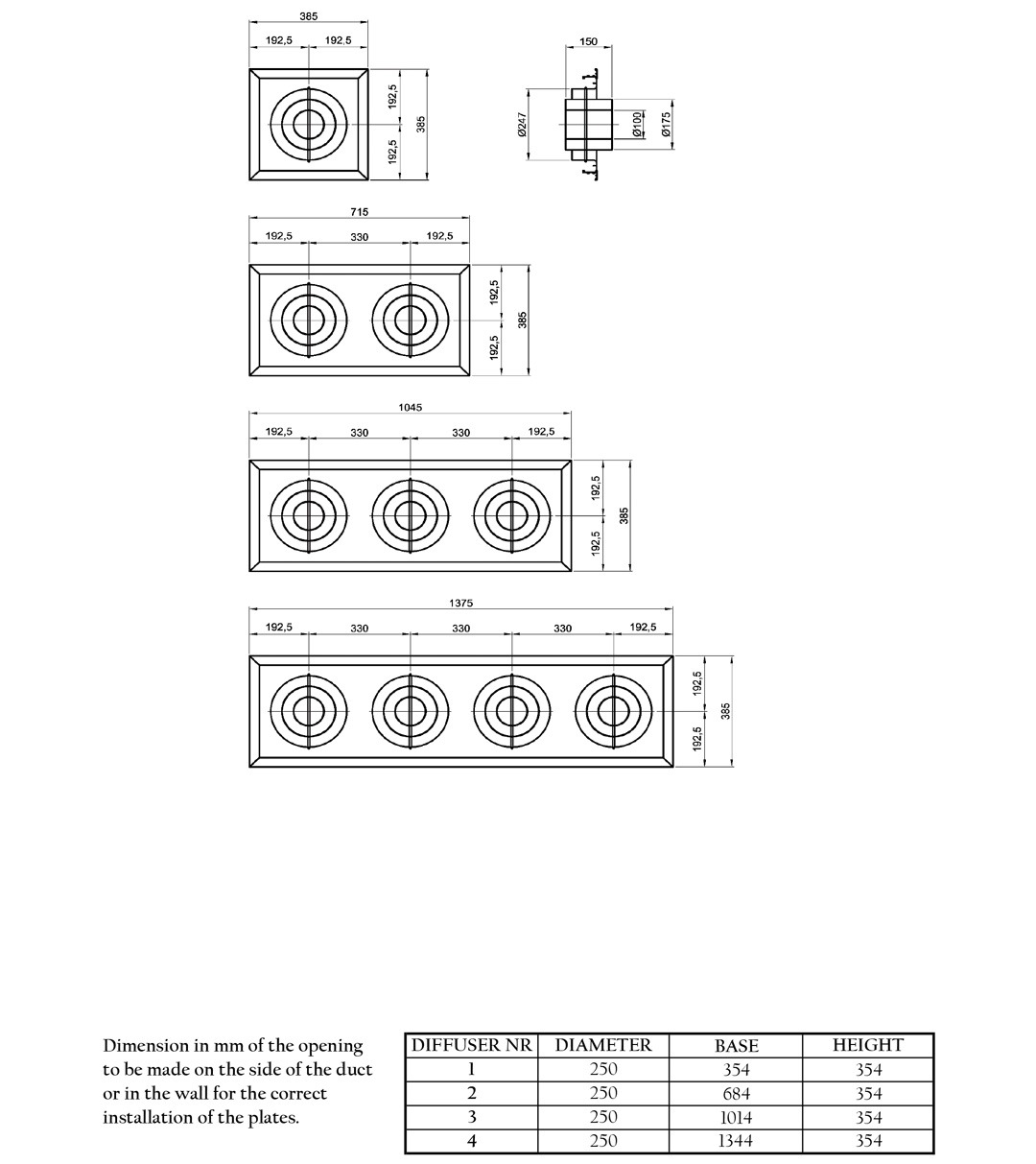

Dimensions

KVC Series
KVC



Selection

Air flow rate
KVC
