Ceiling diffusers
KT

Back to Diffusion

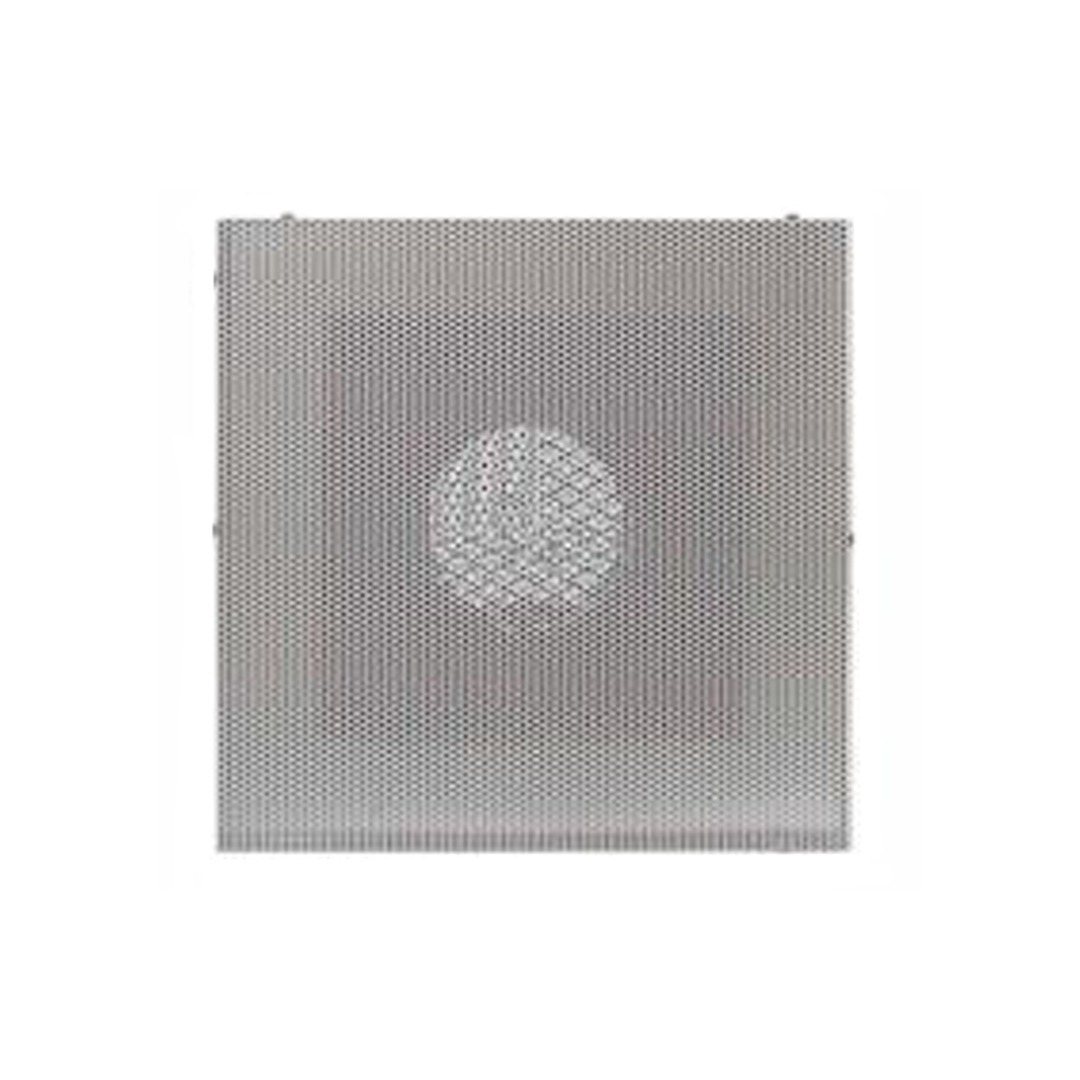

The KT Series units are ending units with perforated screen and decreased plenum. These diffusers are both apt to application in supply and extractionand they can be equipped with not visible deflectors for orientation of the throw.

Technical data

  • Standard dimension 595x595mm
  • RAL 9010 steel white painted removable perforated screen
  • Galvanized steel Plenum with sideway connection with isolated o without isolated
  • Installation height between 2.6 and 4.0m
  • Air flow from 120 up to 830 m³/h
  • Ceiling fixing of terminal units using threaded support bars

Information

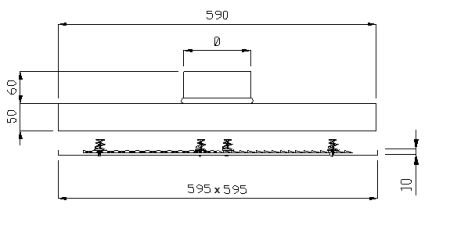

Dimensions

KT Series
KT
