Ceiling diffusers
KR

Back to Diffusion

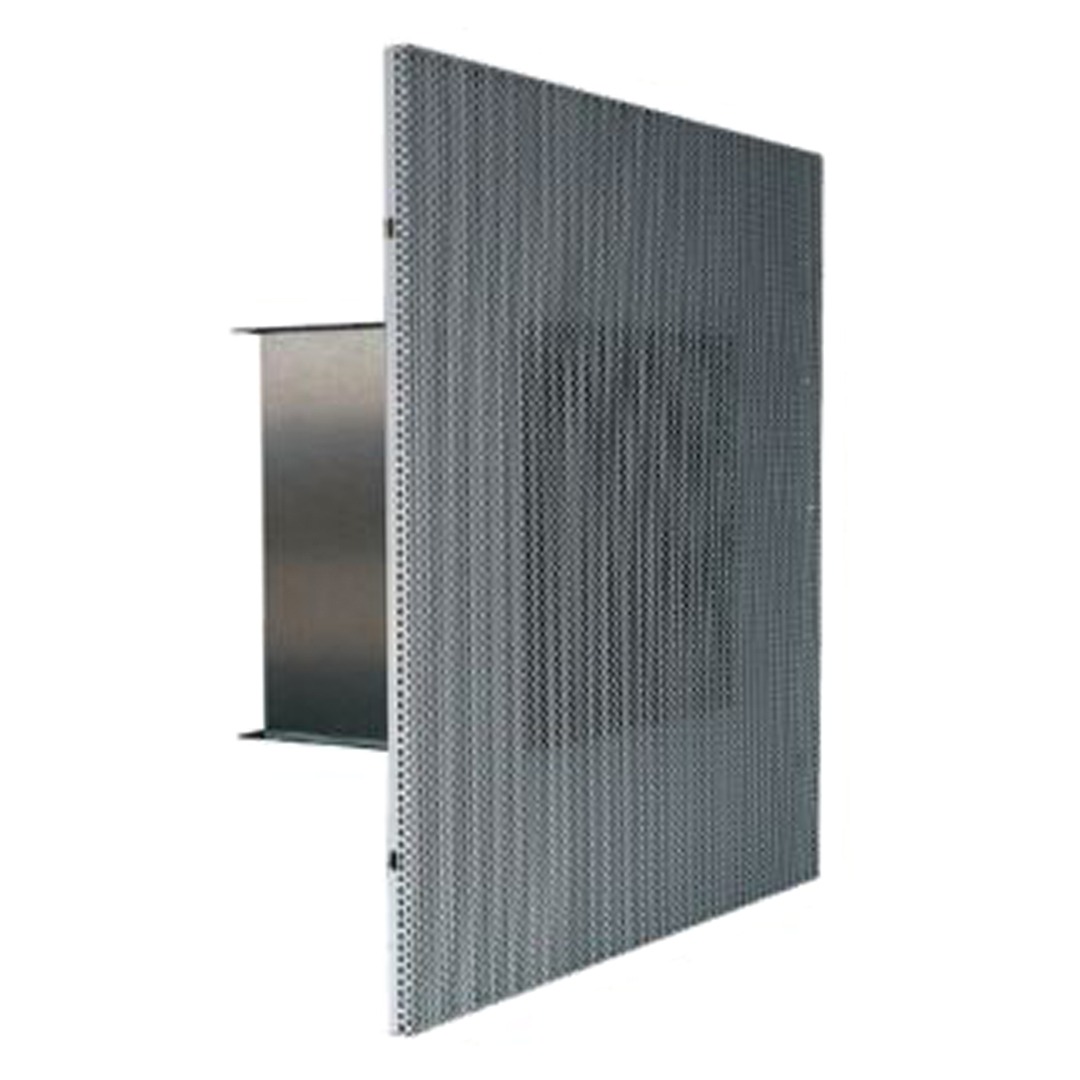

The KR Series units are ending units with perforated screen. These diffusers are both apt to application in supply and extractionand they can be equipped with not visible deflectors for orientation of the throw.

Technical data

  • Standard dimension 595x595 mm
  • RAL 9010 steel white painted removable perforated screen
  • Galvanized steel Plenum with sideway connection with isolated o without isolated.
  • Installation height between 2,6 and 4,0 m
  • Air capacity from 120 up to 830 m3/h
  • Ending units ceiling fixing through support axlea

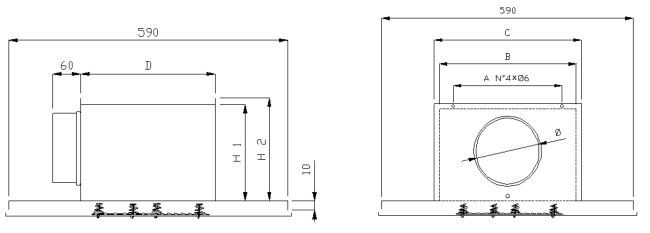

Dimensions

KR Series
KR



Selection

Air flow rate
KR

Technical Catalog
