Swirl diffusers
KPQ

Back to Diffusion

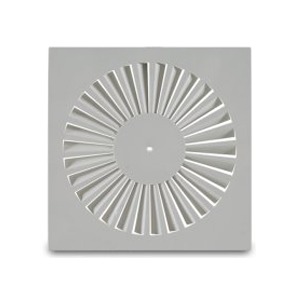

The diffuser of the series KPQ is composed of a support panel in which it is directly obtained by molding a pink fixed deflectors. This geometry produces the condition of air flow with large helical induction effect.
For this reason, the diffuser is suitable for both heating and for cooling, with temperature differences between supply air and elevating the ambient air.

Technical data

  • Available diameters from 600mm 300th
  • Made of sheet steel painted white RAL 9010
  • Special versions in stainless steel AISI 304 polished or satin
  • Special versions in stainless steel AISI 316, polished or satin
  • Mounting height from 2.6 m to 4m
  • Versions of panel painting of circular panel, panel fineline

Dimensions

SIMPLE VERSION PANEL
KPQ

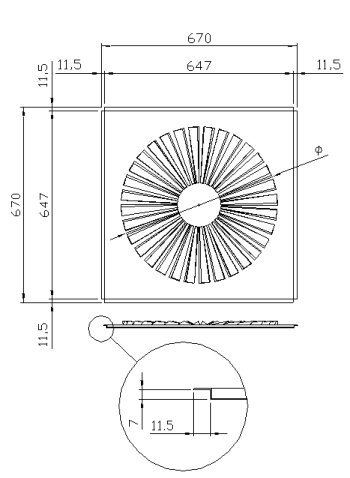

PANEL VERSION FINELINE
KPQ



CIRCULAR PANEL VERSION
KPQ

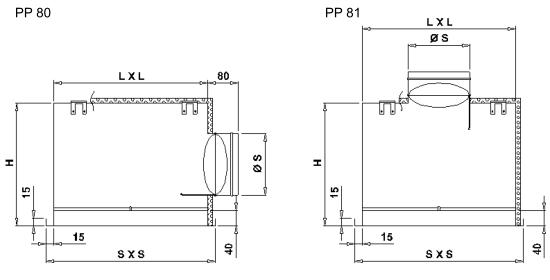

Accessory: Plenum
KPQ

KPQ

Selection

Air-flow rate
KPQ

Technical Catalog
