Duct diffusers
KO

Back to Diffusion

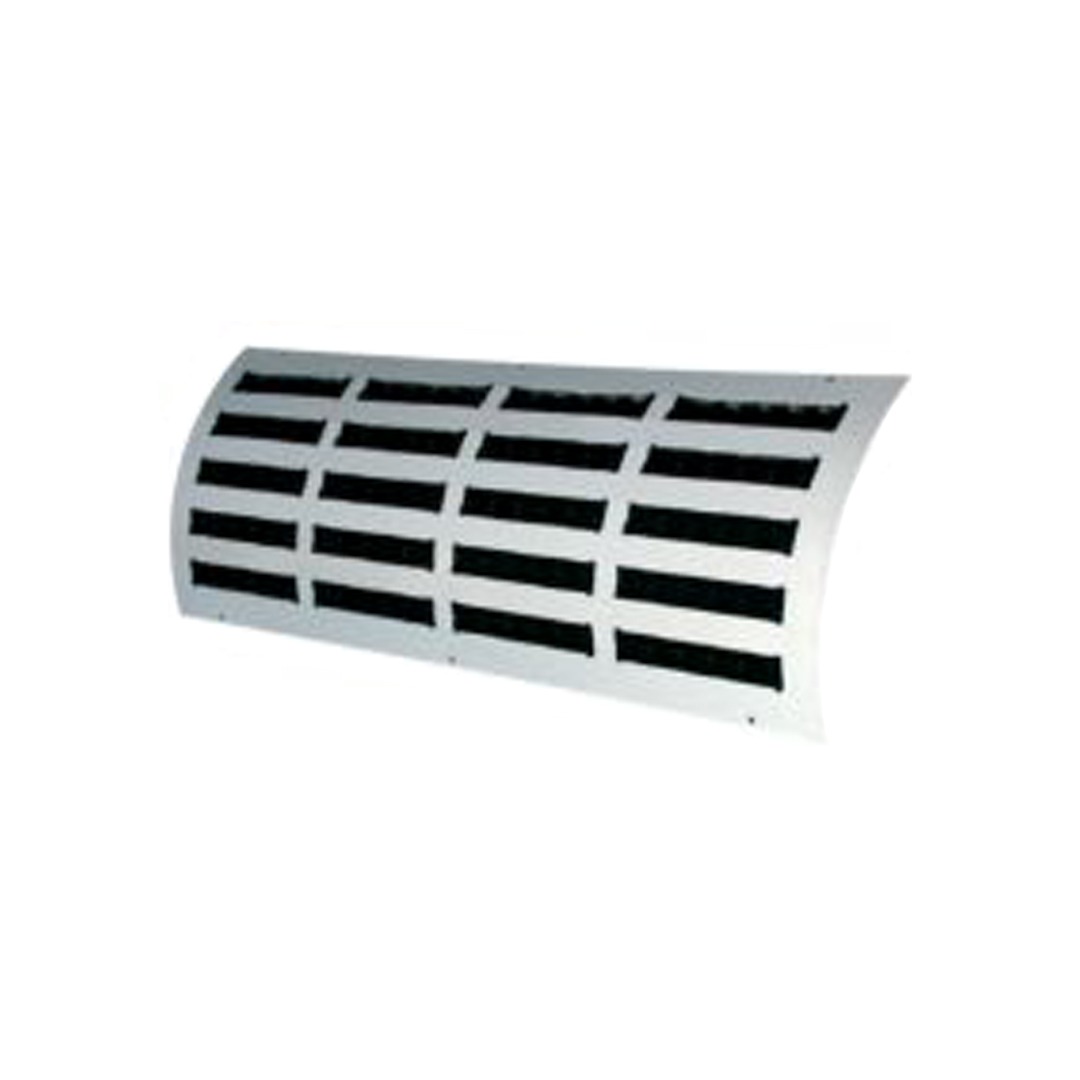

The KO Series units are rectangular diffusers with slots on calendered panel for direct application on circular duct. The slots have orientable deflectors. They find their application where is required a care for design for ducts at sight.

Technical data

  • Available dimensions from 425x65 up to 1025x315 mm
  • RAL 9010 white painted steel panel
  • RAL 9005 adjustable deflectors in black ABS
  • Installation height between 2,6 and 4,1 m
  • Air capacity from 60 up to 1.568 m3/h
  • Fixing to the duct with at sight autothreaded screws

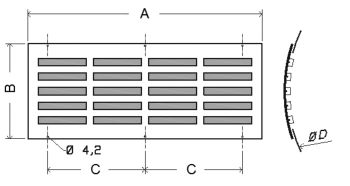

Dimensions

KO Series
KO



Selection

Air flow rate
KO

Technical Catalog
