Ceiling diffusers
KN squared

Back to Diffusion

The KN Series units are multidirectional squared diffusers with extractable cones. The costruction variants of the central body allow several throw configurations of the diffuser. They are used both in supply and extraction and they are ceiling installed. The removable central body makes easier the regulation of the volume control damper and it does not require counterframe installation.

Technical data

  • Sizes from 150x150 to 600x600 mm
  • Completely made of silver anodized aluminum
  • Made of painted aluminum RAL 9010 on request

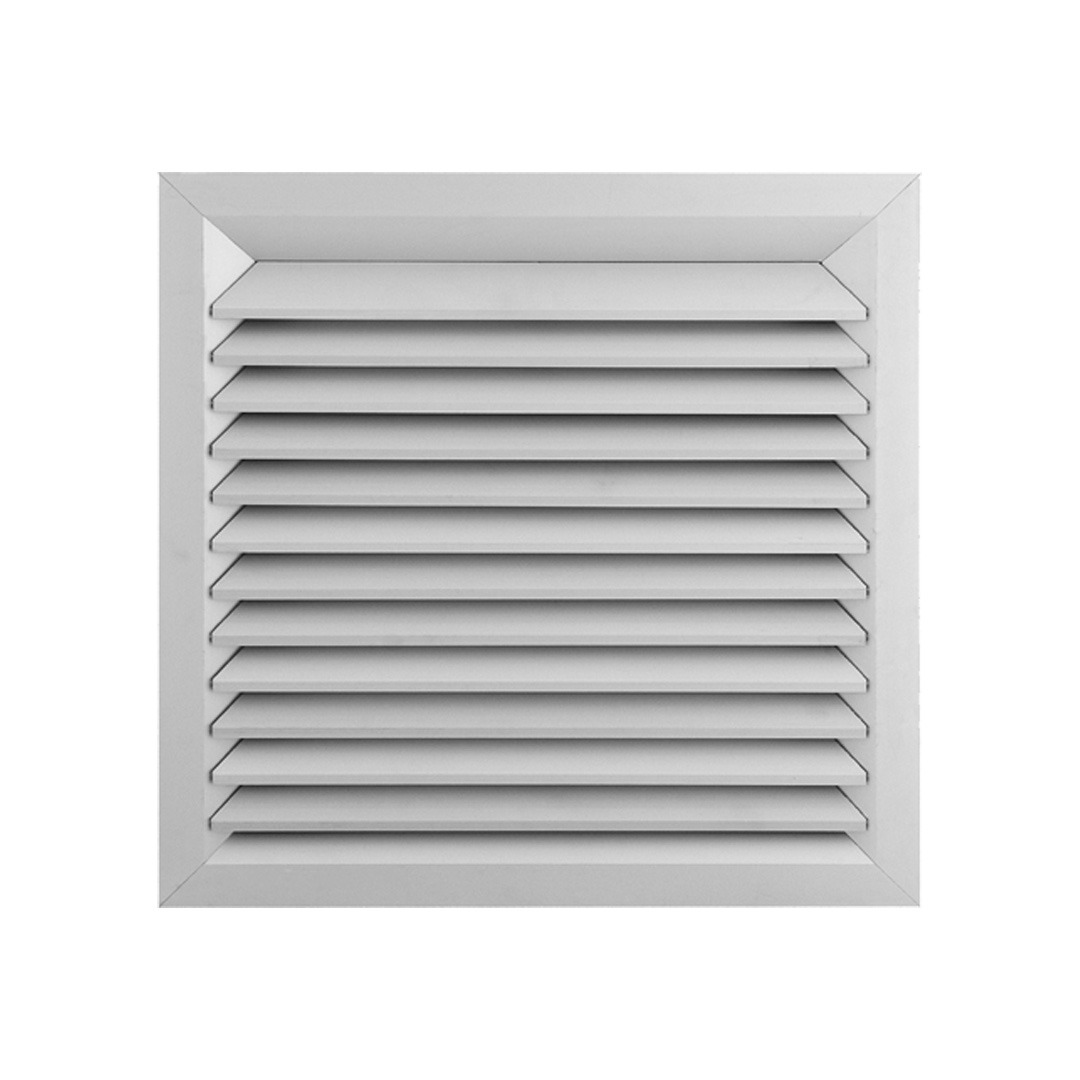

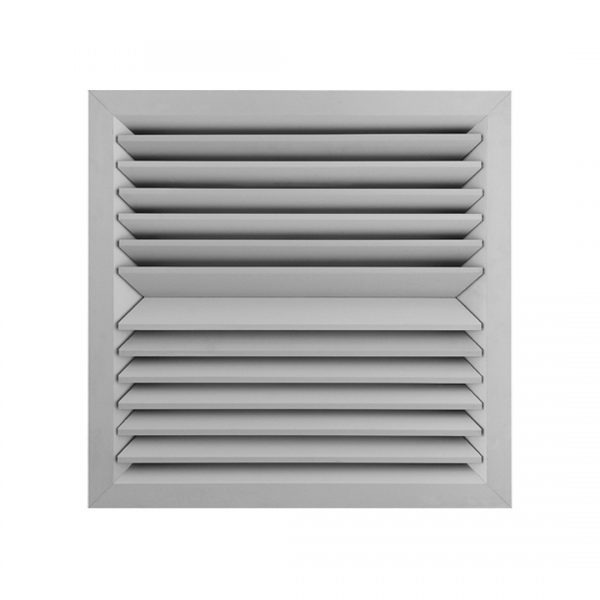

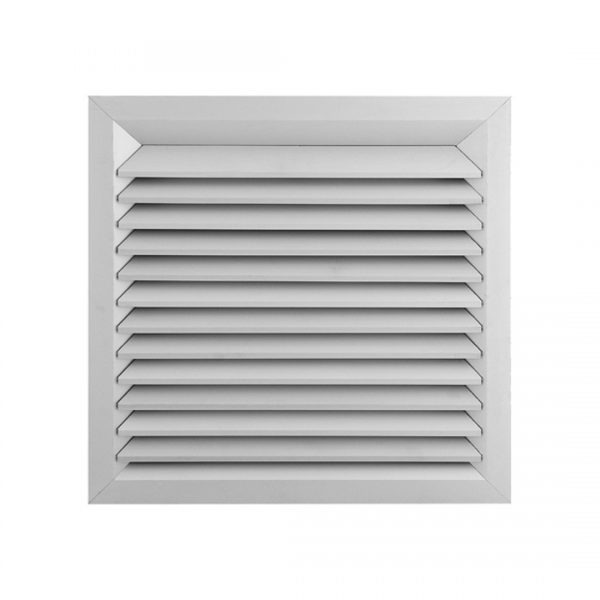

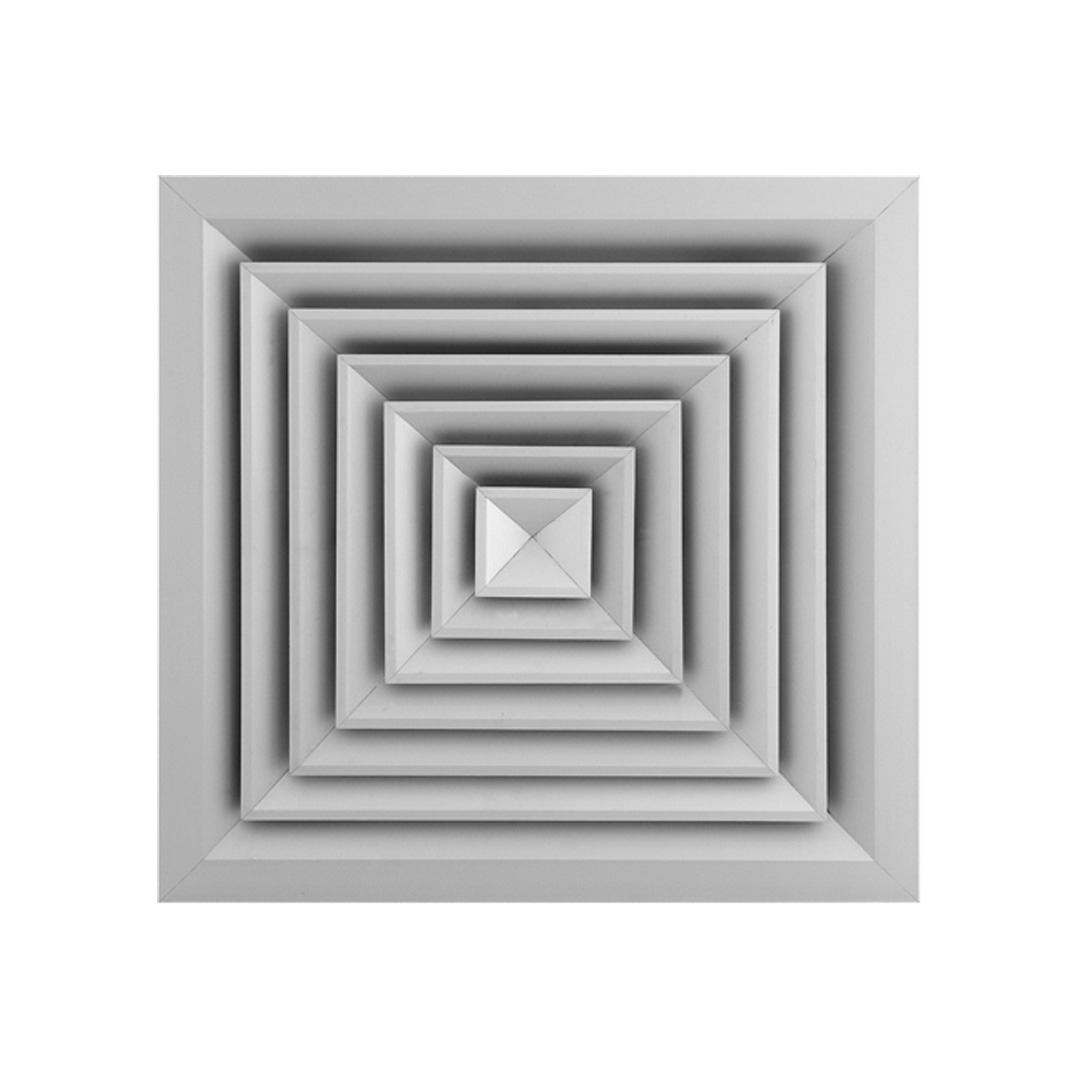

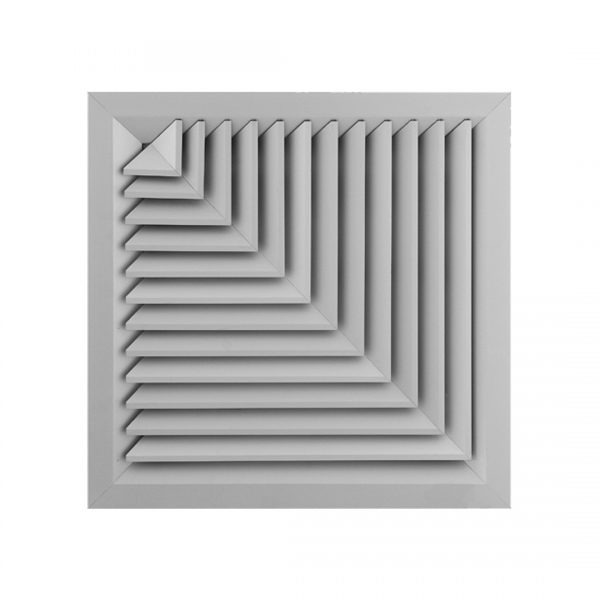

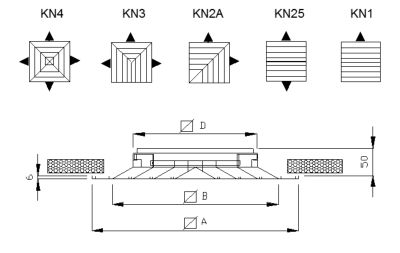

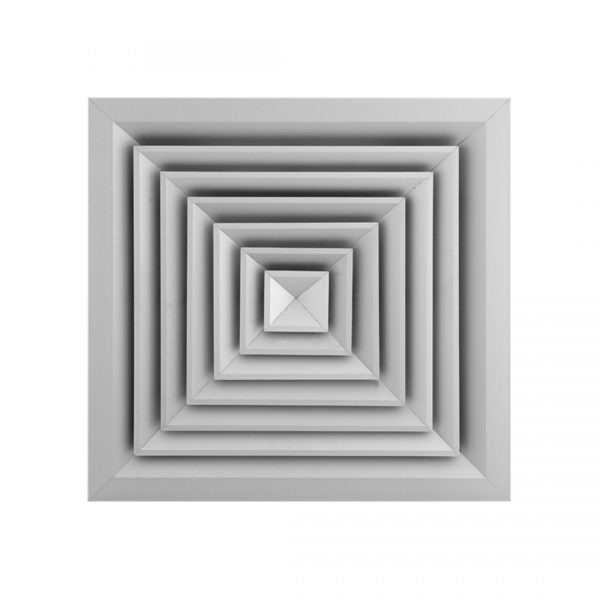

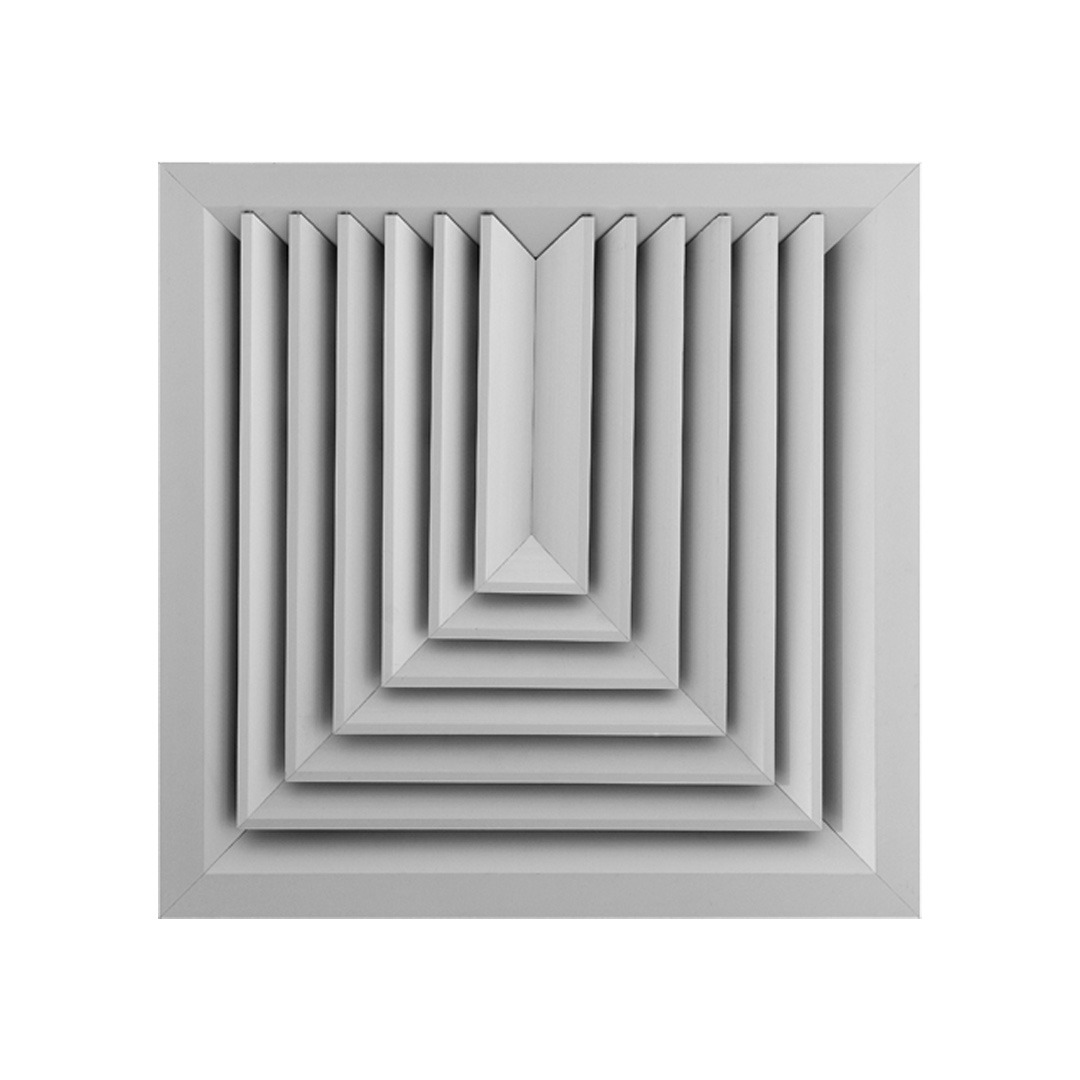

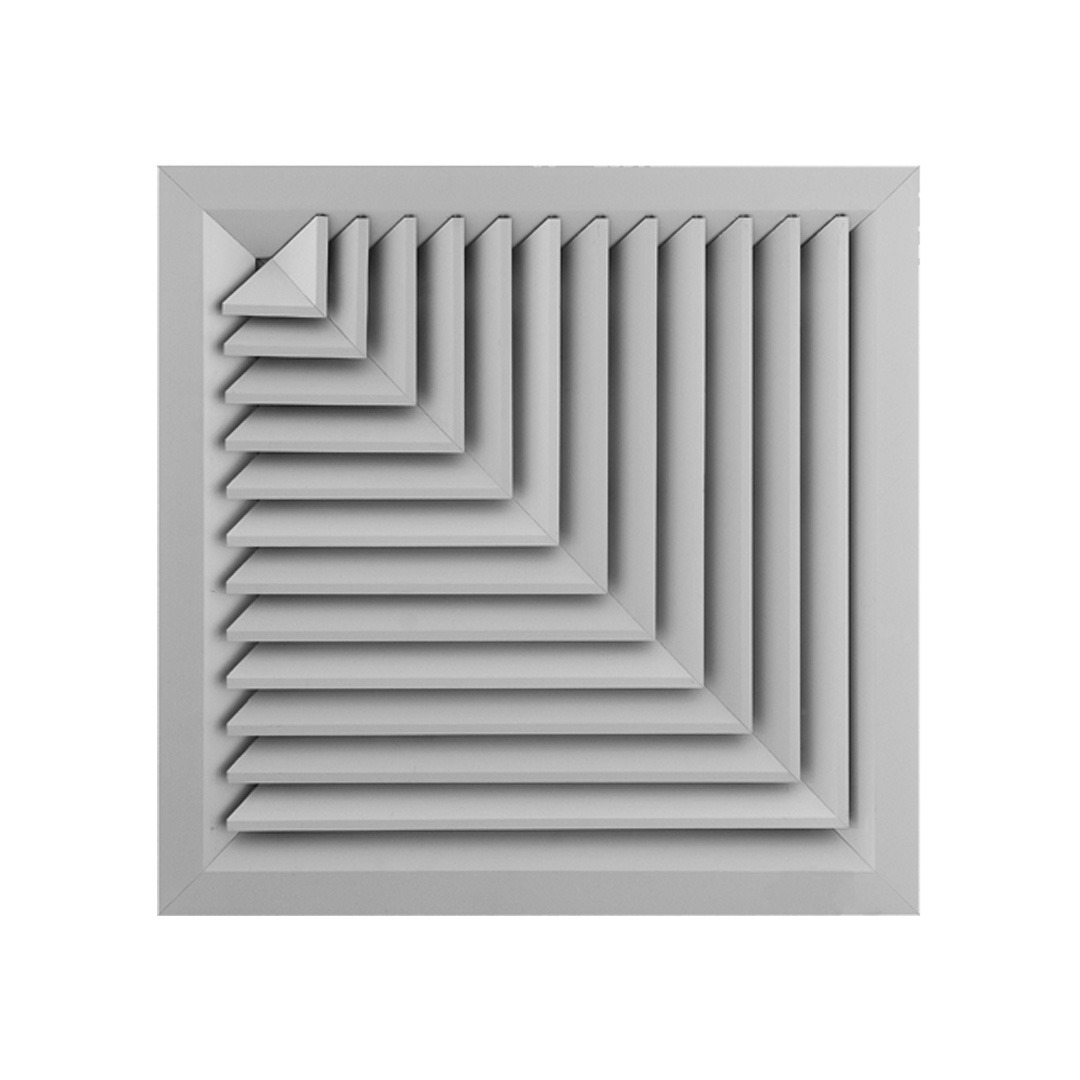

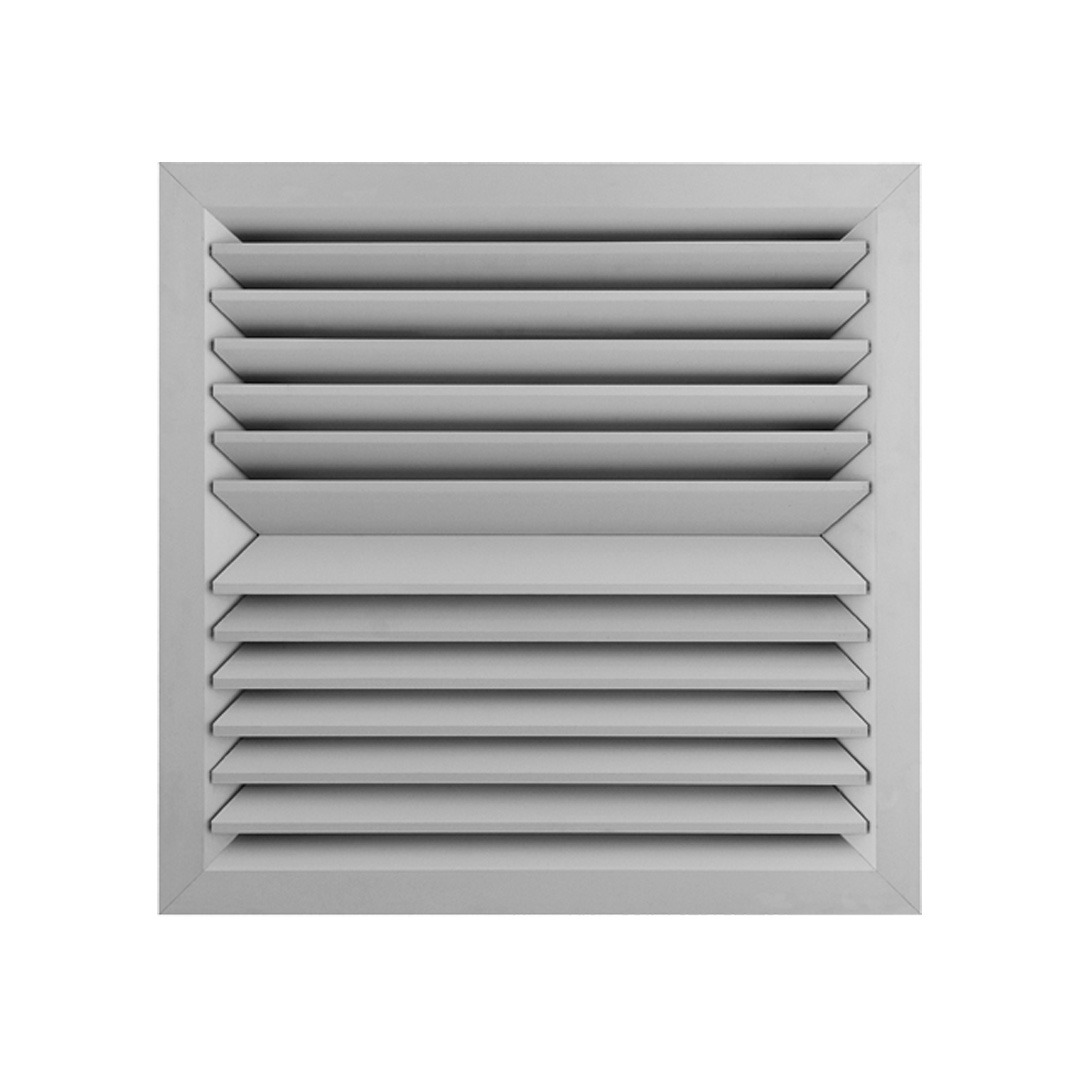

  • Configuration of the unit: 1, 2 (or the opposite corner), 3 and 4 way
  • Installation height between 2.5 and 4.5 m
  • Air flow rate from 100 to 3,550 m3 / h
  • Fixing by screws hidden fixed laterally to the neck of the diffuser and channel

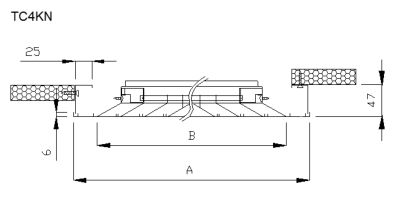

  • Counter TC4KN aluminum for installation spaced from the ceiling
  • Counter TC4KN available either anodized silver white RAL 9010
  • Fixing of subframe by screws on the ceiling
  • Damper in galvanized steel opposite movement
  • Fixing the gate directly to the diffusers with clips
  • Plenum box in galvanized steel with or without insulation
  • Bridge for ceiling fixing without plenum (KNPM)


KN Series

KN - squared

KN - squared

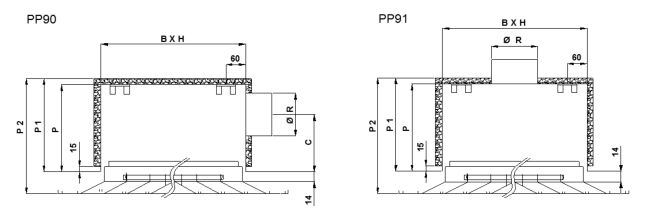

Accessory: Plenum

KN - squared - Plenum



Air flow rate
KN - squaredKN - squaredKN - squaredKN - squaredKN - squared
