Ceiling diffusers

Back to Diffusion

The KJF series units are ceiling diffusers with front panel suitable for both supply and extract air. Characterised by a total horizontal throw, they are particularly effective in cooling with false ceiling installation at medium height.
The elegant design makes them suitable for representative offices, commercial environments or high level shops.

Technical data

  • Available with square or circular panel
  • Neck diameter from 125 to 400 mm
  • Air flow rate from 150 to 1200m³/h
  • Standard installation height from 3 to 4.5m
  • Steel frame painted RAL 9010 or RAL 9003

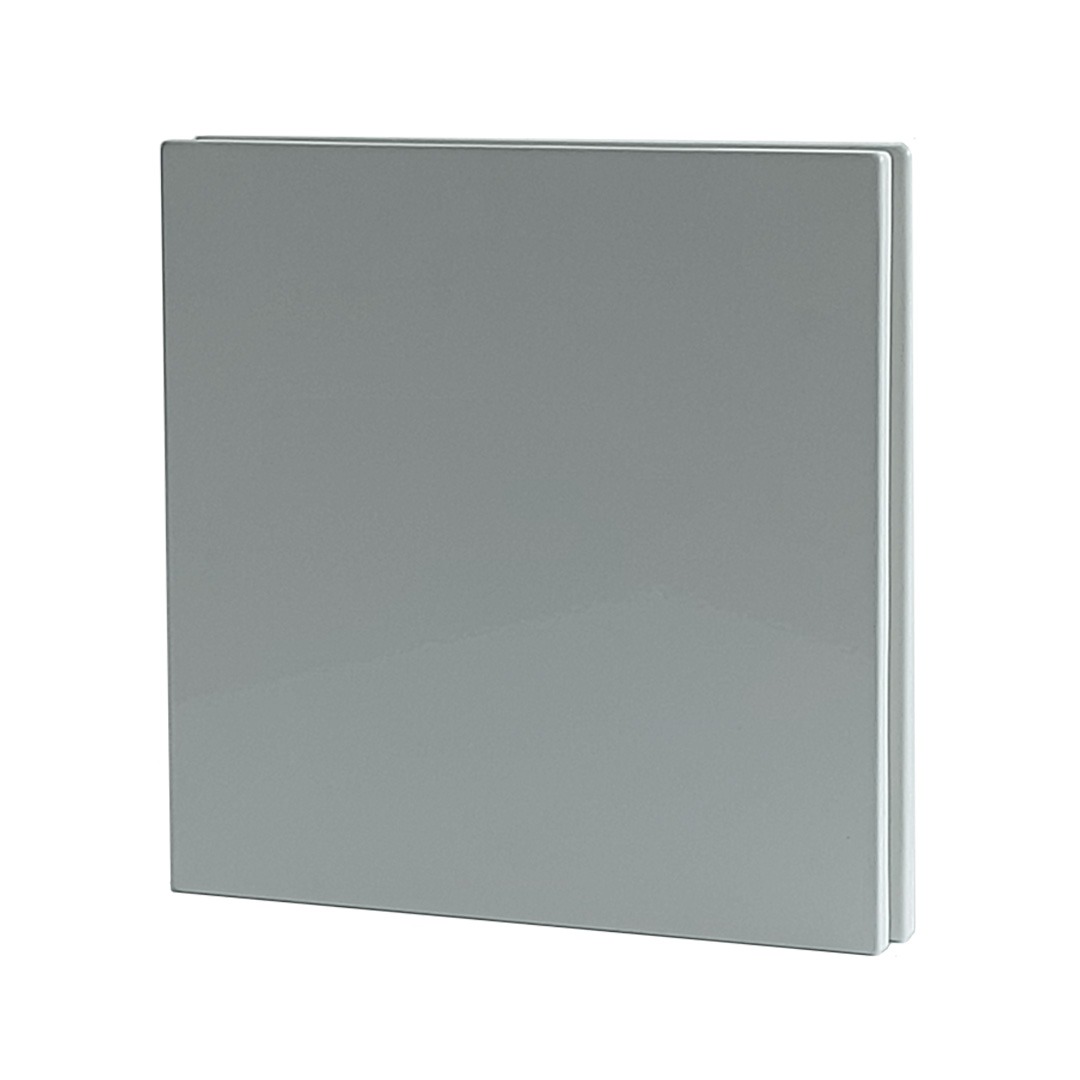

KJP Series

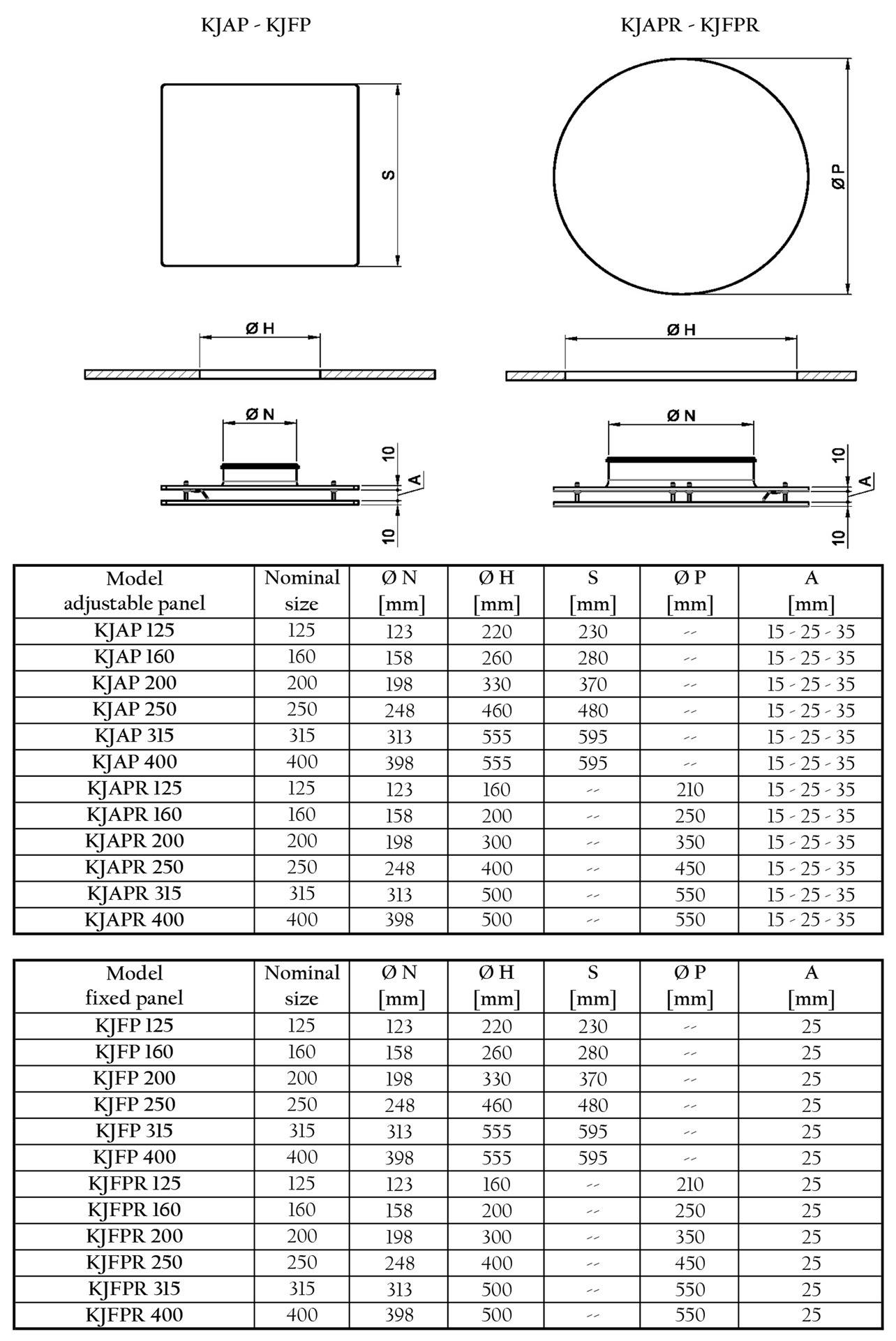

KJP - dimension

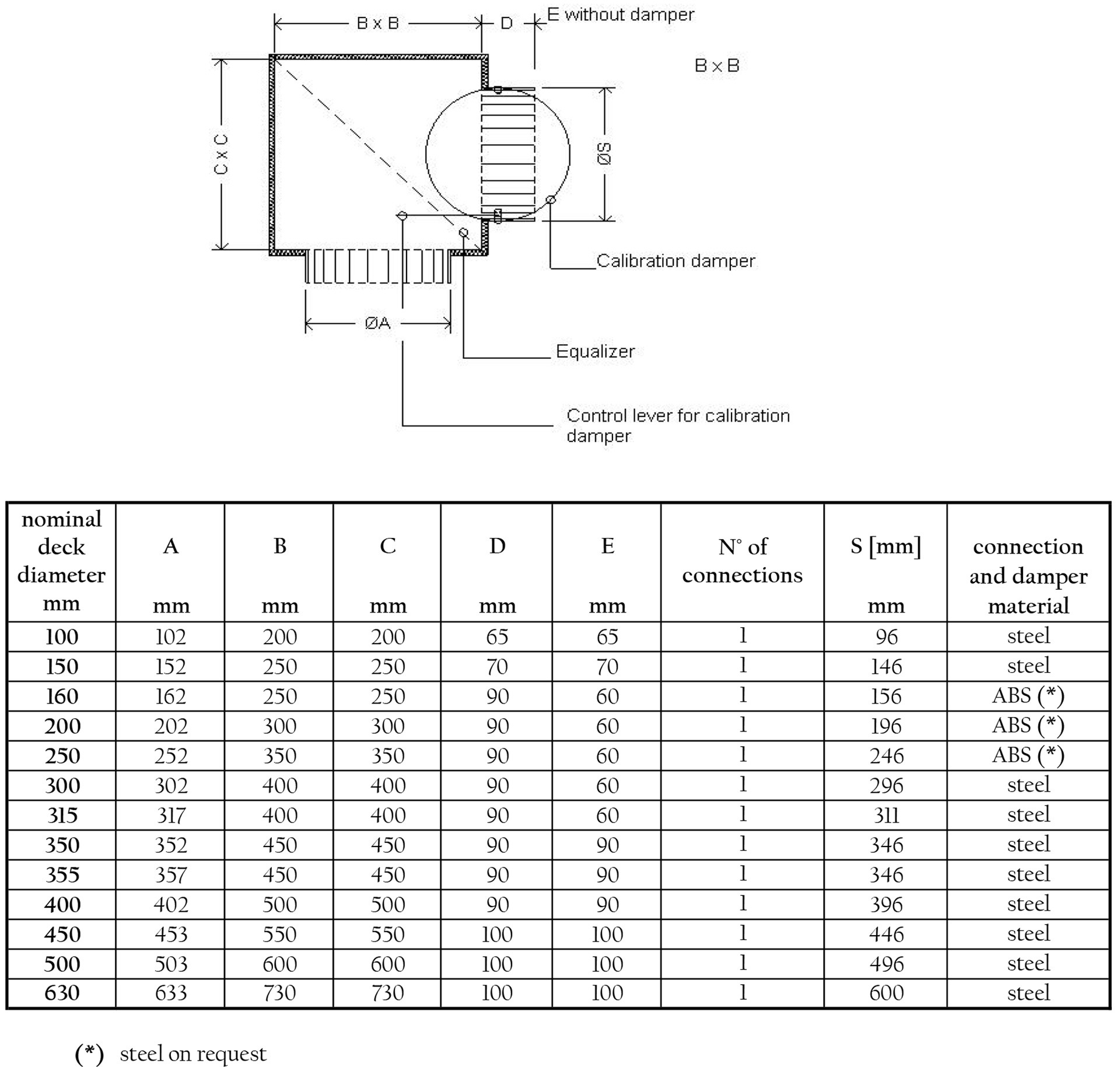

Accessories: Plenum
