Linear diffusers

Back to Diffusion

The diffusers linear series KH allow the management of high air flow with minimum values of pressure drop and sound power generated.
They allow you to maximize the induction principle guaranteeing excellent comfort conditions, no current sensitive and temperature uniformity in large environments by placing the diffusers around the perimeter of the ceiling.

Technical data

  • Diffusers from 1 to 5 slots
  • Lengths from 600 to 2000mm
  • Standard lengths: 600, 800, 1000, 1200, 1500 and 2000 mm
  • Installation height between 2.4 and 4 m
  • Can be installed using mounting screws or lateral bridges
  • Diffuser and deflector fins of aluminum, galvanized sheet steel plenum
  • Diffuser finish anodized or powder coated white RAL 9010

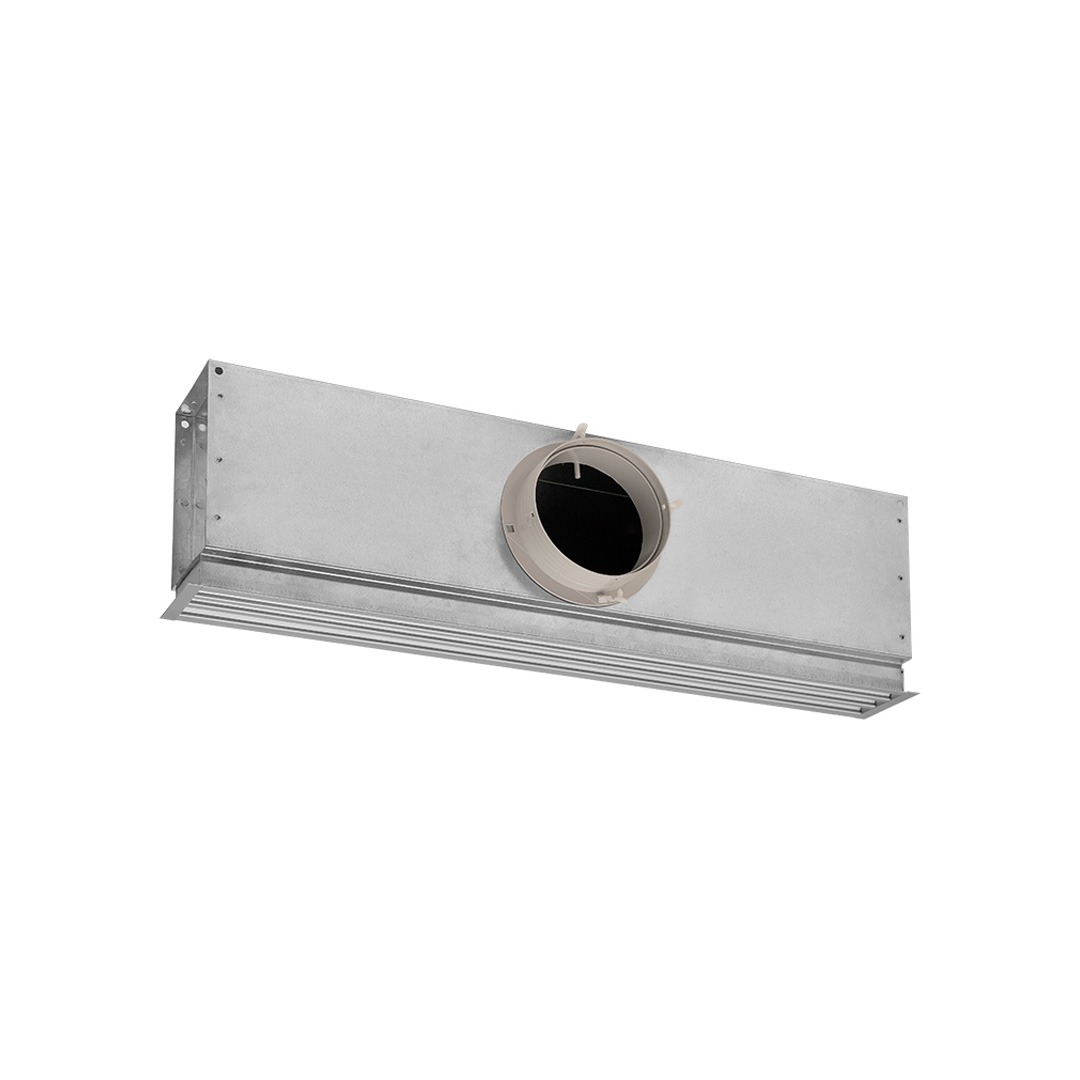

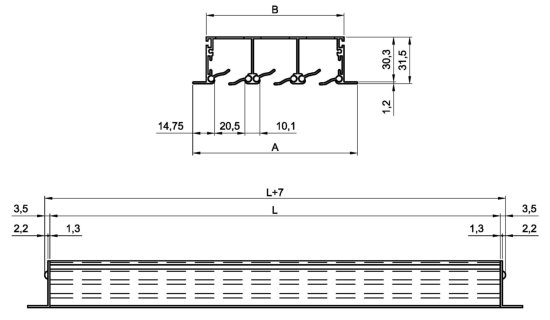

KH Series

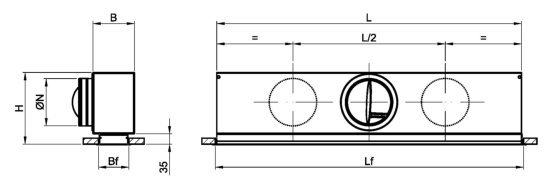

Accessory: Plenum



Air flow rate

Technical Catalog
