Grilles
KG

Back to Diffusion

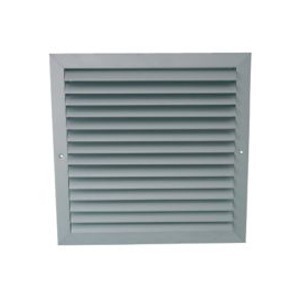

The KG Series units are supply grilles with orientable curved blades. They are used in supply both on the wall and to the ceiling.

Technical data

  • Standard dimensions from 200x100 up to 600x300 mm
  • Silver anodized aluminium construction
  • Row of horizontal or vertical or with 2 opposite orientations curved blades
  • Galvanized steel volume control damper with contrasting motion blades
  • Modular galvanized steel counterframe with walled iron-beams
  • Wall fixing by clips on counterframe or by screws on duct or on plenum

Accessories

  • Steel Plenum PP30 and PP40
  • Counterframe UTC
  • Volume control damper SC

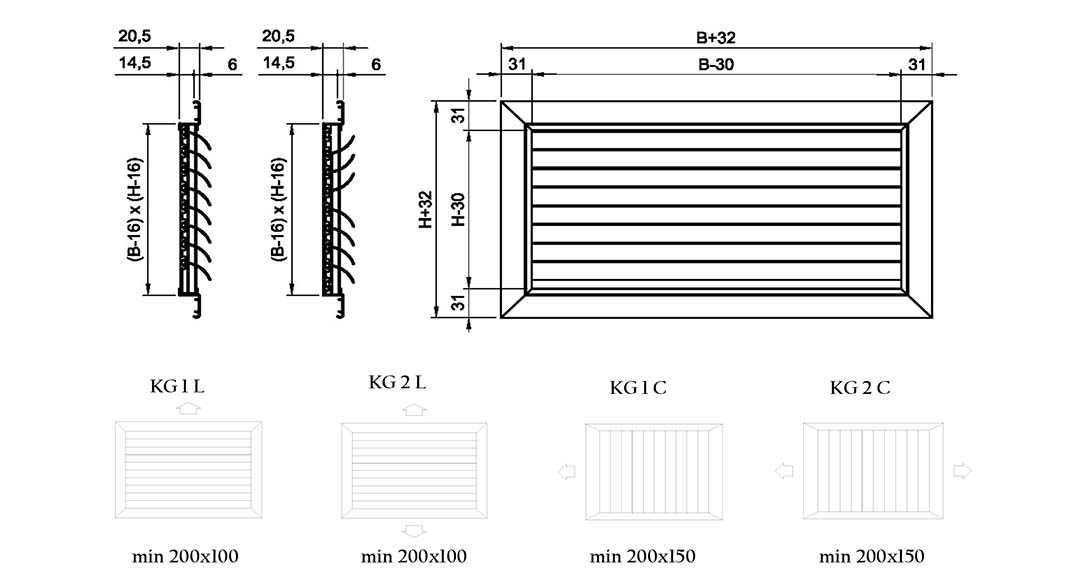

Dimensions

KG Series

Selection

Air-flow rate

Technical Catalog
