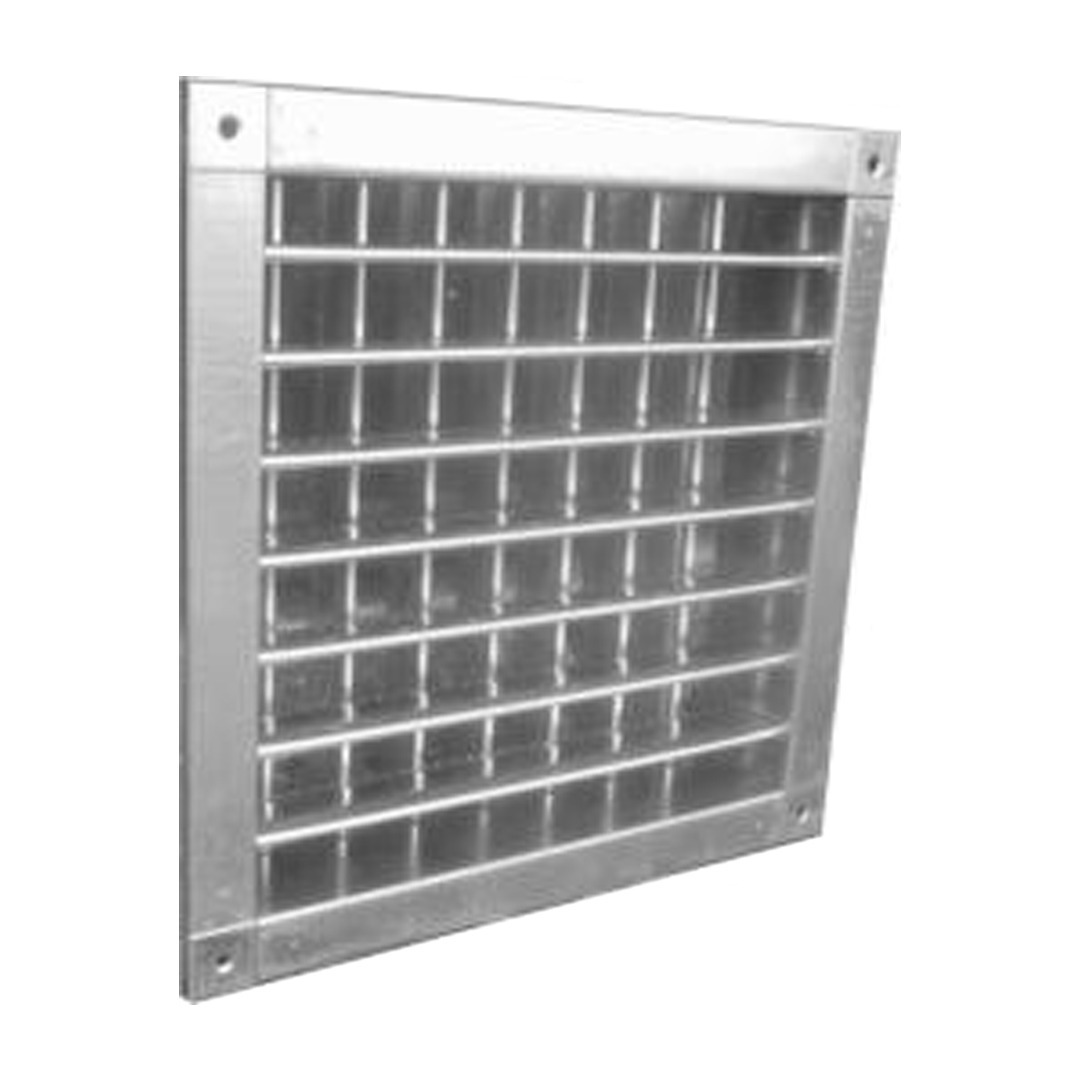

Steel Grilles
CL-GM 41-42-51-52 Z

Back to Diffusion

The grilles are suitable for wall and duct installation for the supply of cooled and heated air in industrial applications.

Technical data

  • Frame in galvanised steel, thickness 1,0 mm
  • Individually adjustable aerofoil blades in galvanised steel, thickness 0,4+0,4 mm
  • Distance between blades 50 mm
  • Plastic bearings

Execution

  • CL-GM 41-42-51-52 A in natural aluminium;
  • CL-GM 41-42-51-52 X in stainless steel AISI 304

Accessories

  • Installation subframe
  • Damper type CL-DL50Z (up to max dimension 700x700 mm) or CL-DLT101Z

Dimensions

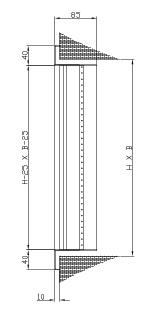

CL-GM 41: vertical front blades
  • Nominal “B” from 200 to 2000 [mm] each 100 [mm]
  • Nominal “H” from 200 to 2000 [mm] each 100 [mm]



CL-GM 41

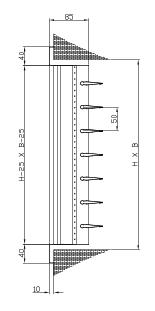

CL-GM 42: vertical front blades, horizzontal back blades
  • Nominal “B” from 200 to 2000 [mm] each 100 [mm]
  • Nominal “H” from 200 to 2000 [mm] each 100 [mm]



CL-GM 42

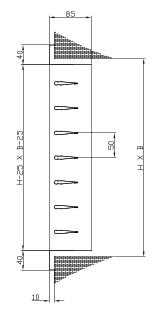

CL-GM 51: horizzontal front blades
  • Nominal “B” from 200 to 2000 [mm] each 100 [mm]
  • Nominal “H” from 200 to 2000 [mm] each 100 [mm]



CL-GM 51

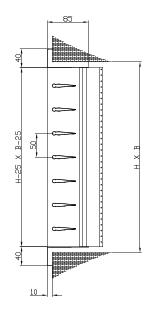

CL-GM 52: horizzontal front blades, vertical back blades
  • Nominal “B” from 200 to 2000 [mm] each 100 [mm]
  • Nominal “H” from 200 to 2000 [mm] each 100 [mm]



CL-GM 52
