AS-KQ1

Back to Diffusion

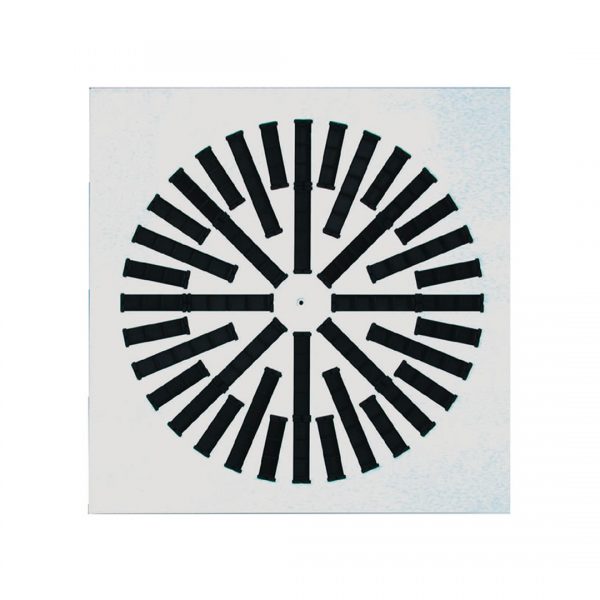

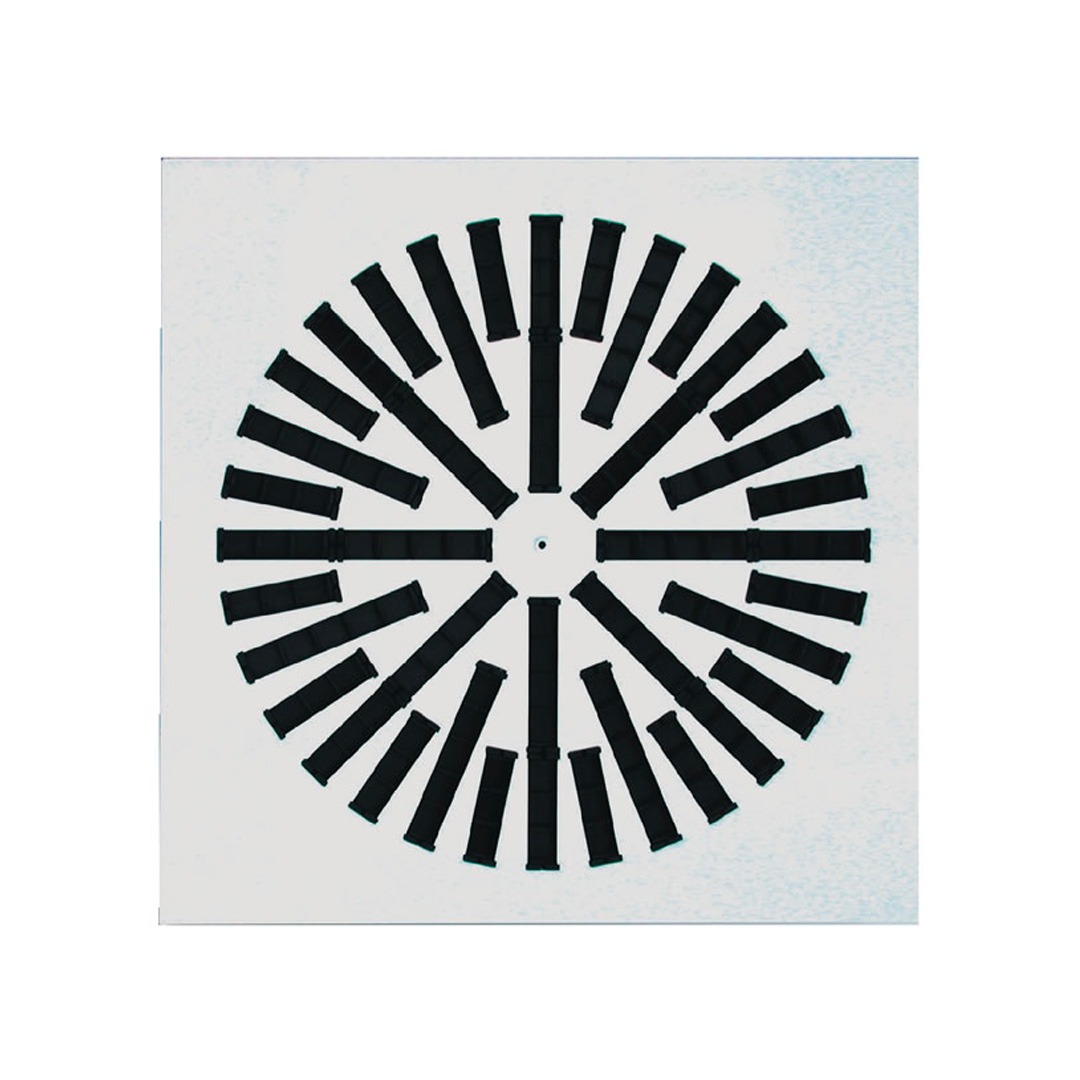

The AS-KQ1 units are squared diffusers with slots on panel. The loopholes are star shape drawn up and they have orientable metallic deflectors. They are used both in supply and extraction and they are ceiling installed. They find their application where is required a care for design and where is appreciated an easy installation and regulation of the throw.

Technical data

  • Available in sizes from 300x300 to 625x625 mm, round from 300 up to 625mm diameter
  • Smaller size achievable on panel 600x600 mm (standard T KQ ...)
  • Steel panel painted white RAL 9010 or 9003
  • Adjustable deflectors in black steel RAL 9005
  • Installation height between 2.6 and 4.1 m
  • Air flow rate from 50 to 1770 m3 / h
  • Fixing by screws to the side plenum or central screw cap and white caps
  • Plenum box in galvanized steel with or without capital gain, shutter, insulation and deck assembly
  • Plenum in PS available size 600x600
  • Available version in stainless steel AISI 304 or AISI 316 with a glossy or satin finishing

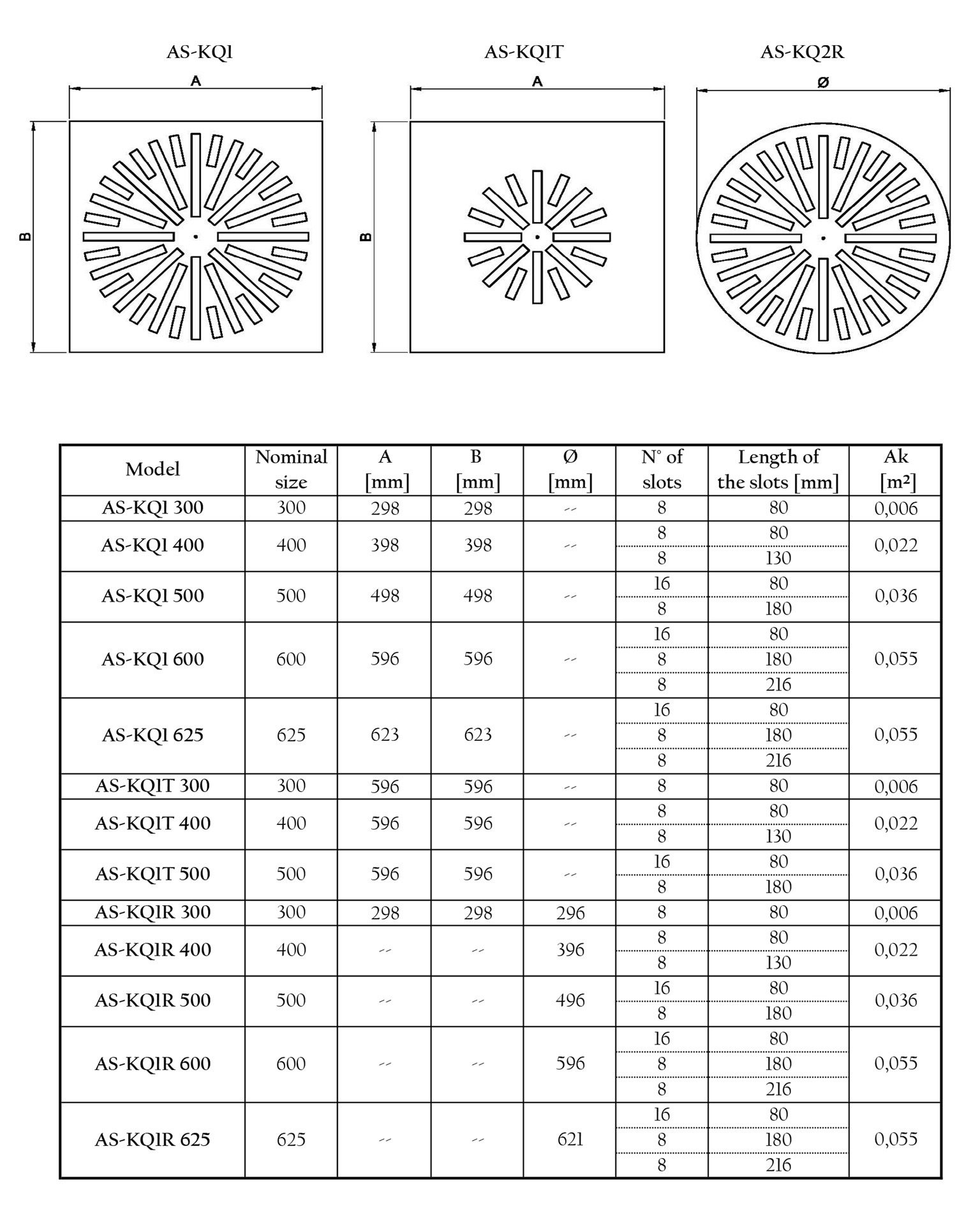

Dimensions

AS-KQ1 Series

AS-KQ1

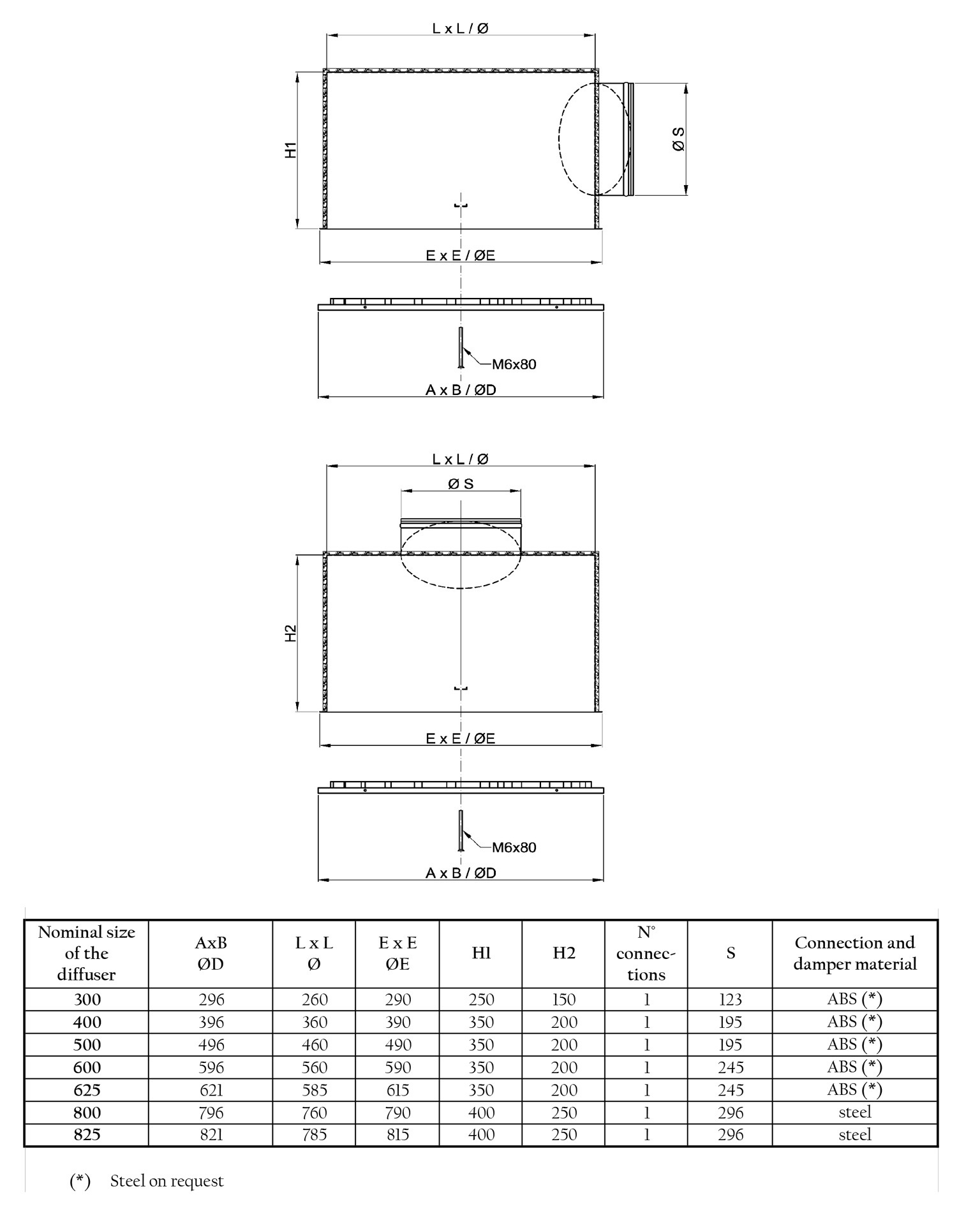

Accessory: Plenum

AS-KQ1-Plenum



Selection

AS-KQ1

AS-KQ1-Air-flow

AS-KQ2 - AS-KQ3

AS-KQ2-KQ3-Air-flow
